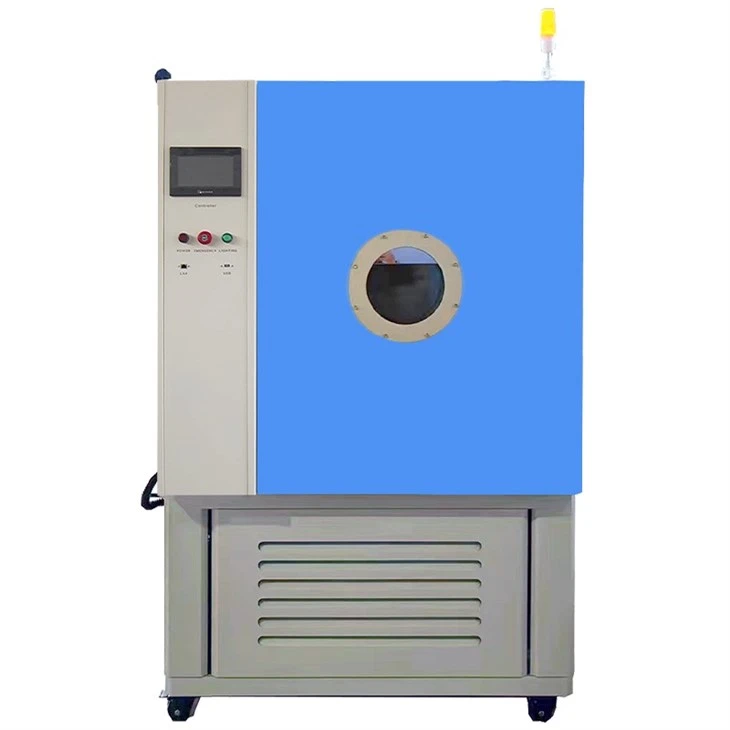

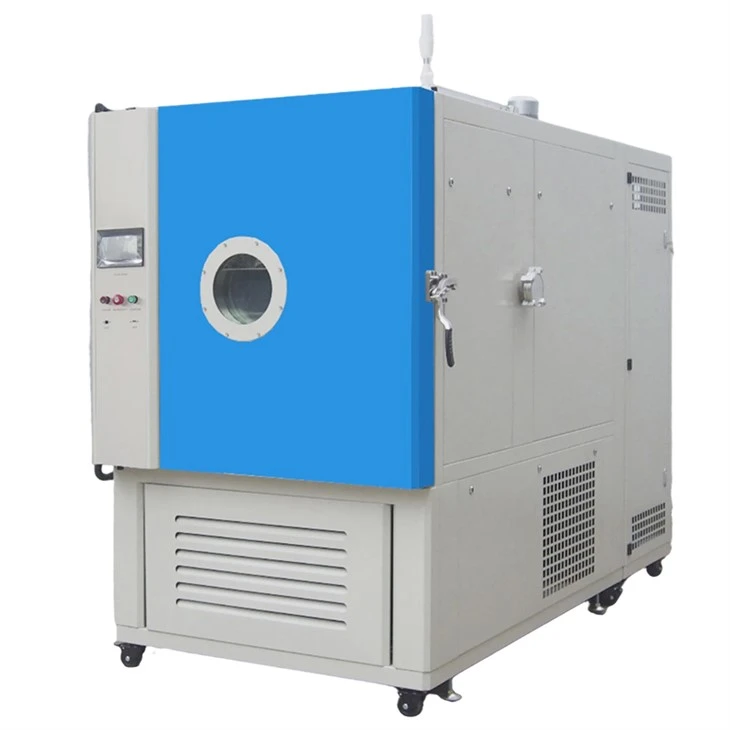

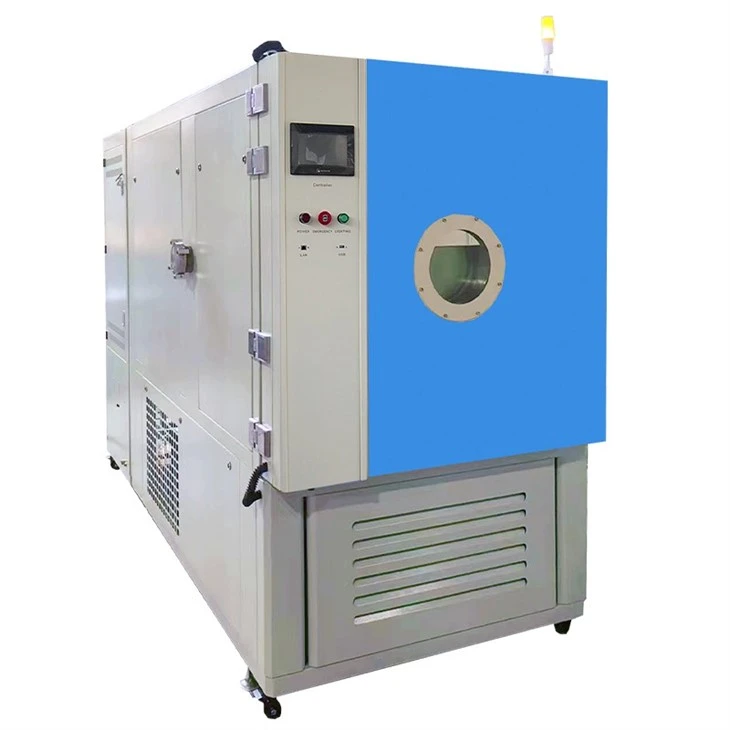

Low Air Pressure Temperature Altitude Chamber

This temperature altitude chamber recreates atmospheric pressures equivalent to altitudes up to 30,000 meters while simultaneously controlling temperature across a wide range from –40°C to +150°C. The combined stress environment allows engineers and researchers to evaluate structural durability, electrical reliability, insulation stability, thermal performance, and safety risks under simulated real-world operational conditions.The Low Air Pressure Temperature Altitude Chamber is widely used across aerospace engineering, aviation electronics, UAV systems, lithium battery depressurization tests, automotive modules, military equipment, high-altitude packaging, and scientific research applications.

Products used in aircraft, satellites, military equipment, and mountain‑top installations are continuously exposed to reduced air pressure and fluctuating thermal conditions. These factors can cause material fatigue, insulation failure, swelling, leakage, fire hazards, and unpredictable behavior.

Pressure-induced Mechanical Stress
Reduced air pressure can cause deformation of housings, seals, and internal materials.

Electrical & Insulation Failures
Low pressure reduces dielectric strength and may trigger corona discharge or insulation breakdown.

Thermal Response at High Altitudes
Heat dissipation weakens; temperature gradients increase; components overheat more easily.

Battery Venting & Electrolyte Expansion
Lithium cells may swell or vent at high altitude due to internal pressure imbalance.

LIB industry's altitude simulation chamber makes it possible to identify hidden risks early, optimize designs, and ensure compliance with international aerospace and reliability standards.

   Broad Altitude Simulation with Rapid and Stable Pressure Control

LIB industry's altitude chambers simulate atmospheric pressures from 101 kPa down to 0.5kPa, allowing accurate reproduction of altitudes up to 30,000 meters. The integrated vacuum system supports:

- steady-state altitude hold

- slow climb and descent profiles

- rapid decompression (safety certification)

- long-duration high-altitude endurance tests

Pressure accuracy ±1% FS and rapid pressure stabilization ensure precise and repeatable results.

   True Combined Temperature–Altitude Environmental Stress

Temperature and pressure can be controlled independently or linked for complex testing cycles, such as:

- cold-soak altitude exposure

- high-altitude hot operation

- climbing/descending temperature gradients

- low-pressure thermal shock transitions

   High-Performance Vacuum System with Multi‑Stage Pumps

Multi‑stage vacuum system consisting of:

- industrial-grade rotary vane pumps

- optional roots booster pumps

- pressure‑rated valves and stainless pipelines

- high-precision digital pressure sensors

   Temperature Control System with High Accuracy and Uniformity

The thermal system provides:

- PID temperature regulation

- rapid pull‑down cooling

- cascade refrigeration for ultra‑low temperatures

- uniform airflow distribution

- low heat loss insulation

Temperature fluctuation remains within ±0.5°C, ensuring consistent performance across multiple devices under test.

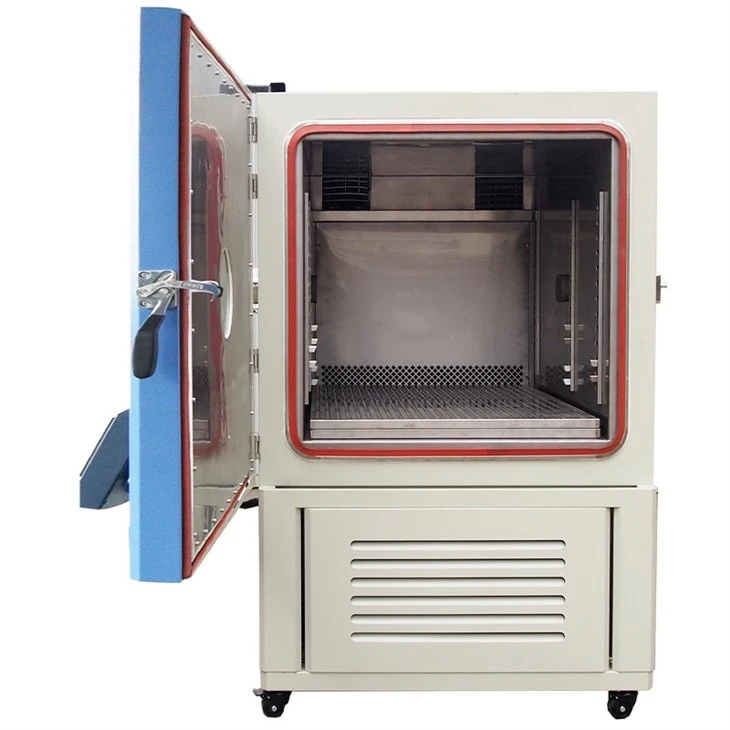

    Flexible Chamber Interior and Customizable Test Fixtures

The interior supports:

- adjustable shelves

- reinforced trays

- battery brackets

- cable feedthrough ports

- high-voltage insulation feedthroughs

- pressure-resistant fixture frame

Model	A-1000
Internal dimensions	D 1500 W 1000 H 970 mm
External dimensions	D 2050 W 1300 H 2200 mm
Temperature range	-40℃ to +150℃
Humidity range	20% ~ 95% (more than 50Kpa can be controlled)
Temperature fluctuation	≤ ±0.5℃
Temperature deviation	≤ ±2.0℃
Temperature uniformity	≤ 2.0℃ (under normal pressure and no load)
Heating rate	3℃/min
Cooling speed	2℃/min
Pressure range	Atmospheric pressure to 0.5kPa
Pressure deviation	± 2Kpa
Depressurization time	Atmospheric pressure to 0.5k ≤30min
Pressure enclosure	Manganese steel, surface spray treatment
Other outer wall materials	Double-sided galvanized steel plate, surface spray treatment
Inner wall material	SUS304 stainless steel plate
Vacuum system	Vacuum pump, air pumping regulating valve, inflation regulating valve





Details & Highlights of Low Air Pressure Temperature Altitude Chamber

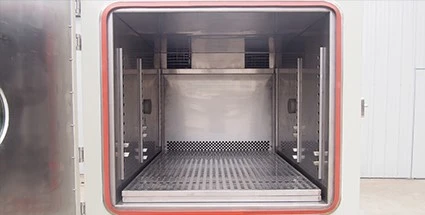

Reinforced Pressure‑Rated Stainless Workroom



The Temperature Altitude Chamber interior is formed from welded SUS304 stainless steel, providing:

- excellent airtightness

- long-term durability under cyclic pressure

- corrosion and moisture resistance

- support for large dynamic pressure fluctuations

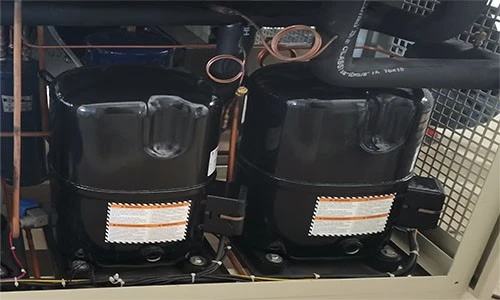

Advanced Multi‑Stage Refrigeration System



The cooling system is optimized for combined environmental tests requiring fast recovery and rapid thermal transitions under low pressure:

- high-efficiency compressors

- uniform airflow channels

- enhanced evapoator performance

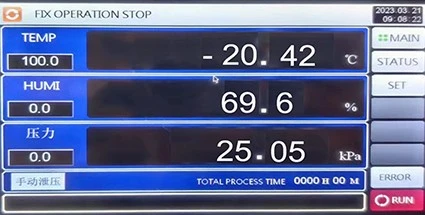

Intelligent Touchscreen Controller



Programmable LCD/Color touchscreen with multi-language interface.

Supports complex temperature–pressure profiles, including rapid transitions, dwell periods, and long-duration tests.

Real-time monitoring, automatic alarms, and Ethernet/USB remote access.

Data logging for test record keeping and LabVIEW integration for automation.

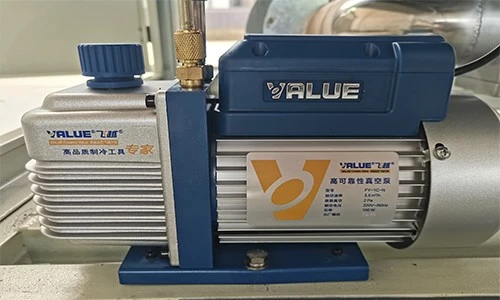

High-Performance Vacuum System



Fast depressurization and precise low-pressure stabilization (±0.1 kPa).

Continuous operation capability for 1000+ hours with automatic drift correction.

Supports integration of sensors, cables, and live power feedthroughs without compromising chamber vacuum integrity.





Before You Test: Key Questions About Low Air Pressure Temperature Altitude Chamber

1. Does LIB industry support avionics and aerospace testing requirements?

+

-

Yes. LIB industry has more than 16 years of experience delivering altitude, vibration, thermal, humidity, and battery testing equipment for aviation, spacecraft research, and military applications worldwide.

2. Can the Low Air Pressure Temperature Altitude Chamber connect to LabVIEW software?

+

-

Yes. The Low Air Pressure Temperature Chamber controller supports communication via Modbus/TCP, RS485, and Ethernet, allowing integration with LabVIEW for data acquisition, remote monitoring, automated test sequencing, and real-time parameter control.

3. Know more about LIB Industry

+

-

LIB Industry is a leading Chinese manufacturer specializing in a wide range of environmental test chambers, including temperature and humidity chambers, thermal chambers, walk-in chambers,salt spray corrosion chambers,noxious gas chambers,and IP dust and water ingress chambers.

Get a Personalized Quote and Custom Configuration

To discuss your testing requirements or request a custom quote of Low Air Pressure Temperature Altitude Chamber , contact LIB industry at: sales@libtestchamber.com.All systems include a 3-year warranty and lifetime technical support.
