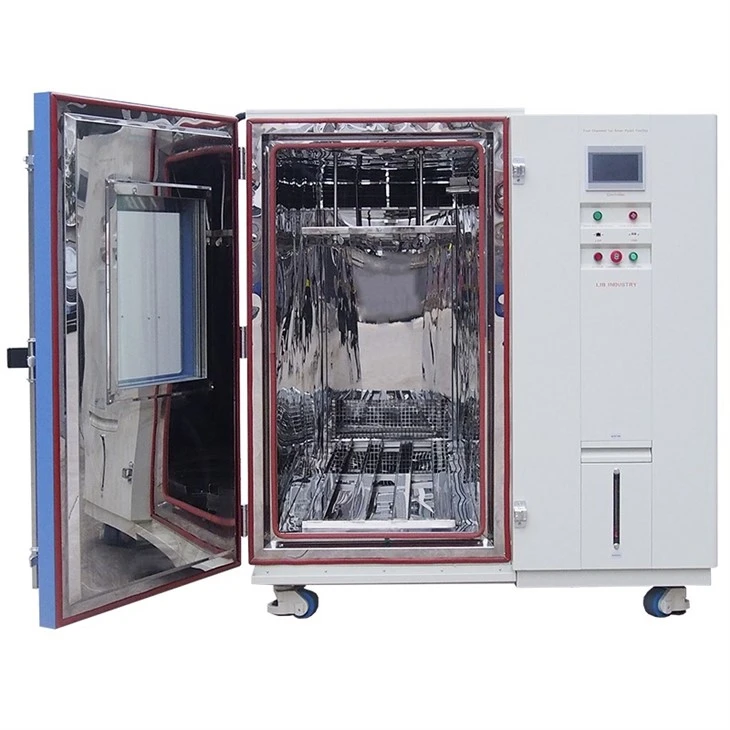

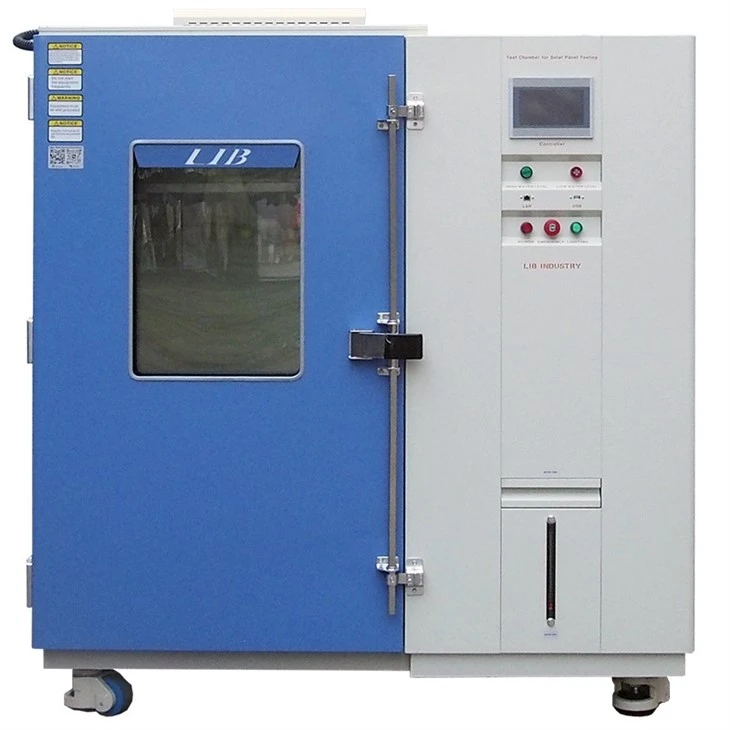

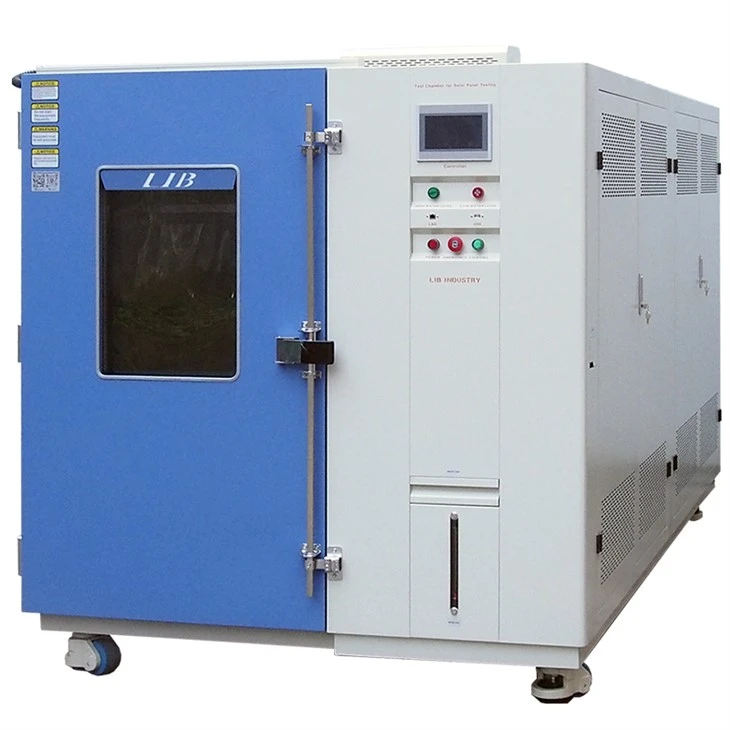

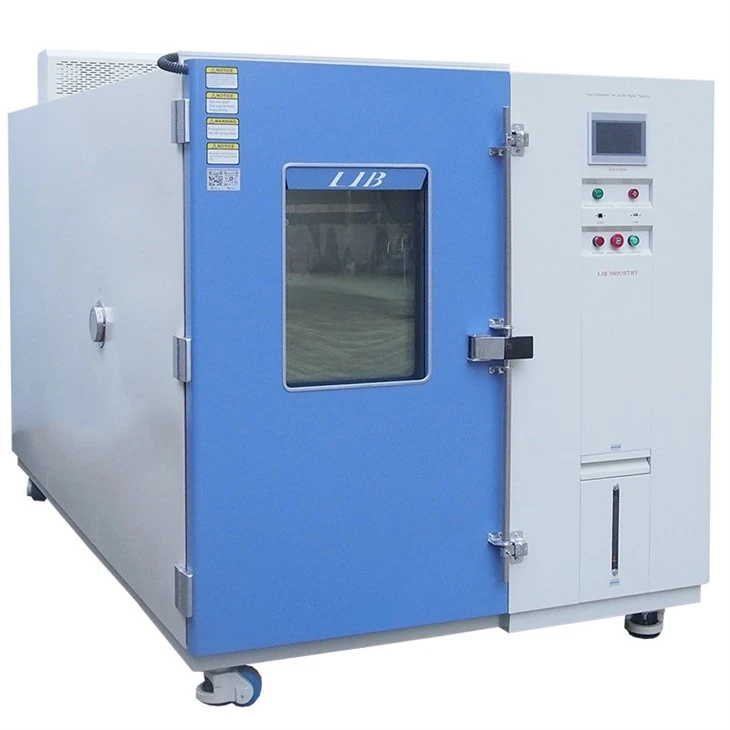

IEC 61464 Photovoltaic Panel Damp Heat Test Chamber

By simulating prolonged exposure to high temperature and high humidity, this chamber helps detect potential defects, predict long-term performance.

LIB Industry provides standard and customizable PV damp heat test chambers, suitable for all PV module types-from standard crystalline panels to large-format high-power modules. Our chambers feature precise temperature and humidity stability (±0.5°C for temperature and ±2.5% RH for humidity), uniform airflow distribution for consistent testing, and programmable multi-step test sequences. With these capabilities, our chambers are trusted by solar panel R&D centers, certification labs, and manufacturers worldwide.

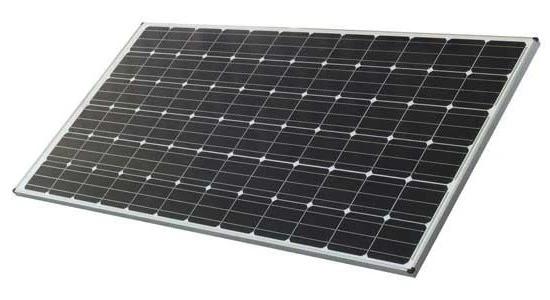

Damp heat testing is critical for ensuring photovoltaic panels operate reliably in humid and high-temperature climates. It can reveal issues that may not be evident during normal operation:

• Delamination of encapsulants

– Moisture can compromise EVA layers, leading to reduced efficiency over time.

• Corrosion of busbars and solder joints

– High humidity accelerates chemical degradation and potential electrical failures.

• Hot spots and leakage currents

– Moisture penetration may trigger localized overheating, reducing panel lifespan.

• Frame and backsheet degradation

– Long-term exposure can weaken structural integrity, impacting safety and mechanical stability.

Using LIB Industry's IEC 61464 Photovoltaic Panel Damp Heat Test Chamber, engineers can identify these vulnerabilities early, optimize PV design, and confidently deliver modules for harsh environments.

Model	PV-04
Internal Dimension	1300*700*1350
Overall Dimension	1900*1100*1750
Interior Volume	1220L
Temperature Range	-20℃ ～ +150 ℃ -40℃ ～ +150 ℃ -60℃ ～ +150 ℃ -120℃ ～ +150 ℃
Temperature Fluctuation	≤ ±0.5℃
Temperature Deviation	≤ 2.0℃
Humidity Range	20%RH ~ 98%RH
Humidity deviation	± 2.5% RH
Temperature Change Rate	1 ~ 3.4℃ / Min
Panel Size	1M*2M
Panel Capacity	4 / 6 / 8 / 10 / 12 Pieces
Controller	Programmable color LCD touch screen controller,Ethernet connection, PC Link, USB
Water supply system	Automatic water supply,Water purification system
Humidifier	External isolation, stainless steel surface evaporation humidifier





Design Highlights of Photovoltaic Panel Damp Heat Test Chamber

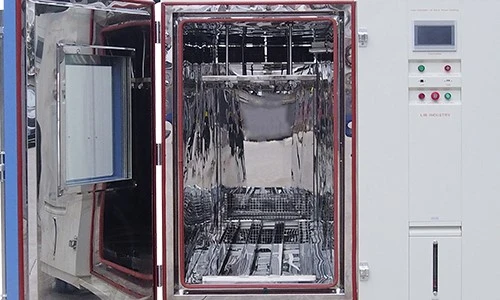

SUS304 Stainless Steel Chamber



Smooth, corrosion-resistant interior ensures consistent temperature and humidity, prevents condensation buildup, and guarantees reliable testing of sensitive PV modules.

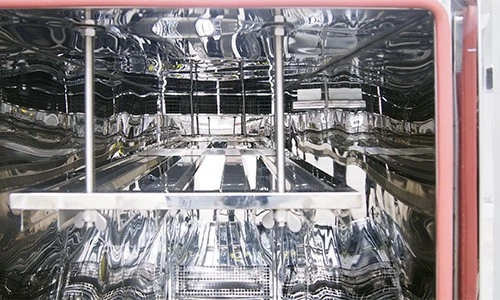

Adjustable Multi-Panel Holders



Allows simultaneous testing of multiple panels or PV module types. Shelves and brackets can be adapted for custom module sizes while maintaining uniform environmental conditions. Moreover, the height of the top of the frame can be adjusted to facilitate a better installation of the PV panels.

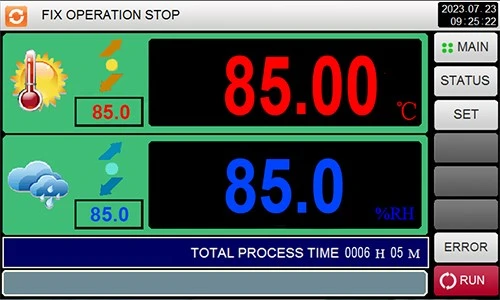

Intelligent Control Panel



7-inch touchscreen offers real-time monitoring, multi-step programmable profiles, and data logging. Remote control and automated cycles reduce manual intervention.

User-Centered Design

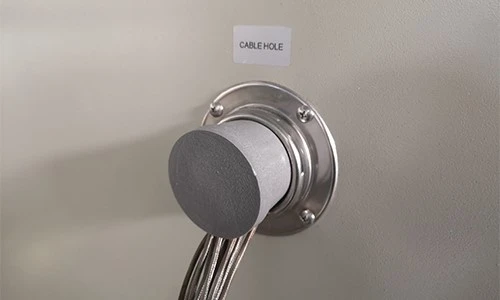

Observation window, LED interior lighting, and multiple cable ports enhance testing visibility and connection flexibility. Ergonomic design simplifies module placement and maintenance.





Discover More About LIB Industry IEC 61464 Photovoltaic Panel Damp Heat Test Chamber

1. Does LIB Industry have experience in the photovoltaic industry?

+

-

Yes, LIB Industry has collaborated with PV module manufacturers and certification labs worldwide, providing damp heat chambers for IEC 61215 and IEC 61730 testing.

2. What other tests can be performed on photovoltaic panels?

+

-

In addition to damp heat testing, LIB Industry provides a complete range of photovoltaic testing equipment, including:

Thermal cycle test chambers (IEC 61215) – To assess material expansion and contraction.

UV weathering test chambers – To study the effects of long-term solar radiation.

Salt mist test chambers (IEC 61701) – To analyze corrosion resistance in coastal or high-salt environments.

Dust and sand test chambers (IEC 60068-2-68) – To assess protection level and surface durability.

3. Can the damp heat chamber run continuously? Will long-term use affect accuracy?

+

-

Yes, it supports 1000+ hour continuous operation. The advanced control system maintains stable temperature and humidity without precision loss.

Ensure Your PV Modules Last in Extreme Conditions

Accelerate product development, ensure compliance, and deliver reliable solar panels that withstand high humidity and temperature. Contact LIB Industry today sales@libtestchamber.com to customize your IEC 61464 Photovoltaic Panel Damp Heat Test Chamber and receive a tailored solution and quotation within 1~3 hours.3-year warranty, lifetime service, safeguarding your testing needs.
