Designed for high accuracy, long-term stability, and flexible test programming, this cabinet provides a controlled environment for electronics, automotive parts, aerospace components, polymer materials, batteries, sensors, and research applications that demand strict thermo-humidity regulation.

With wide thermal capability (–70°C to +150°C), humidity precision of ±2.5%RH, and ±0.5°C temperature uniformity, this alternative humidity and temperature control cabinet provides repeatable conditions for evaluating moisture resistance, corrosion tendencies, dimensional stability, electronic reliability, and hydro-thermal aging behavior. By exposing materials to combined heat and moisture stresses-including swelling, delamination, oxidation, insulation breakdown, and solder fatigue-the cabinet helps engineers identify vulnerabilities and validate performance for R&D, quality screening, and lifecycle assessment.

Features & Advantages of Alternative Humidity and Temperature Control Cabinet

Dual-Mode Precision for Temperature & Humidity

The cabinet integrates a high-efficiency steam injection system and precise dehumidification module. Combined with PT100 Class A sensors, it maintains:

- Temperature deviation: ±2°C

- Humidity accuracy: ±2.5%RH

Even during rapid transitions or fully loaded conditions.

Accelerated Thermal–Humidity Cycling

Advanced cascade refrigeration and controlled heating deliver continuous cycling between low-temperature dry conditions and high-temperature humidity states. Ideal for:

- HAST-style pre-conditioning

- Electronics moisture sensitivity testing

- Polymer swelling simulations

- Long-term damp-heat reliability

Intelligent Controller for Complex Profiles

The programmable LCD touchscreen controller supports:

- 120+ programmable segments

- Ethernet & PC-Link monitoring

- Automatic data logging & recovery

- 1,000+ hour continuous test execution

Engineers can easily create precise temperature–humidity patterns for qualification testing.

Enhanced Product Reliability Testing

- Simulates real-world environmental stress by combining precise temperature and humidity control with rapid cycling.

- Allows engineers to identify potential failure modes before mass production, improving product quality and reliability.

Low Maintenance, Eco-Friendly Design

Uses eco-friendly refrigerants and high-efficiency humidification system.

Optimized components reduce energy consumption.

Designed for easy maintenance, minimizing downtime and total cost of ownership

What Are the Technical Specifications You Need to Know?

Model	TH-100	TH-225	TH-500	TH-1000
Internal Dimension (mm)	400500500	500600750	700800900	100010001000
Overall Dimension (mm)	90010501620	100011401870	120013402020	150015402140
Interior Volume	100L	225L	500L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Controller	Programmable color LCD touch screen controller,PC Link, LAN interface
Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class
Cooling system	Mechanical compression refrigeration system,environmentally friendly refrigerant.
Refrigerating unit	French TECUMSEH compressor
Water supply system	Automatic water supply; Water purification system

Highlights of Alternative Humidity and Temperature Control Cabinet

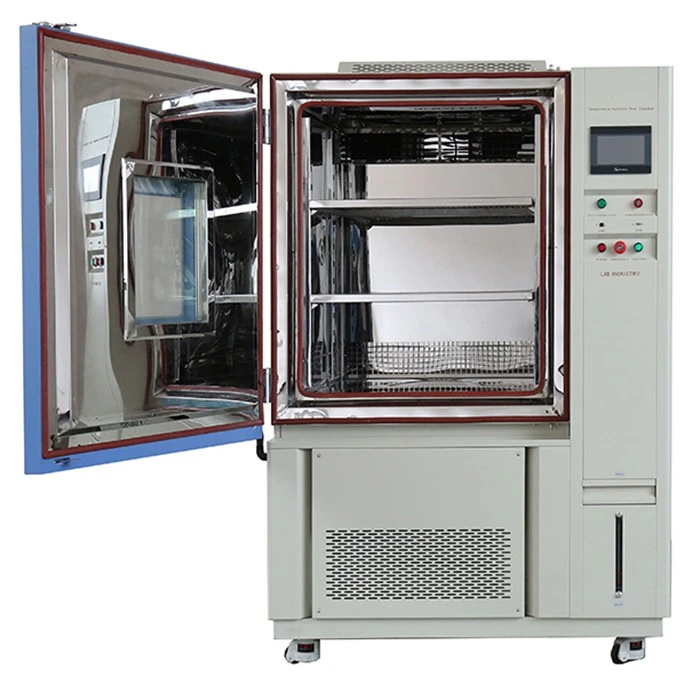

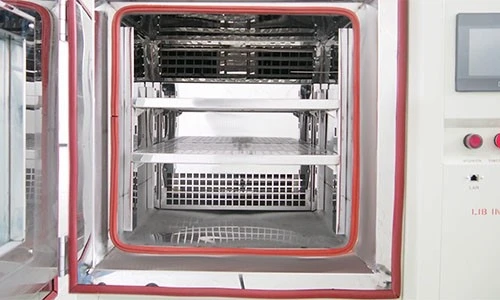

Spacious Stainless Steel Workroom Constructed from SUS304 stainless steel, the modular workroom features adjustable perforated shelves supporting up to 50 kg each. Internal volumes range from 100L to 1,000L, integrated temperature and humidity probes for real-time monitoring.	Multi-Functional Test Ports The alternative temperature humidity cabinet includes multiple Ø50–100 mm access ports for power, signal lines, or sensors, allowing testing of connected devices without compromising internal conditions. Ports are equipped with airtight seals to minimize thermal and humidity disturbance during testing.

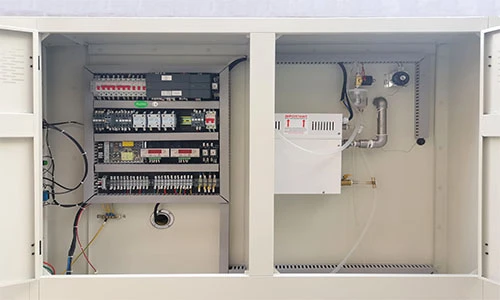

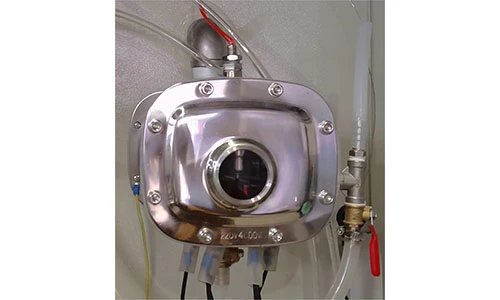

Advanced Humidification System Equipped with a fast-response steam injection and,the alternative humidity temperature cabinet maintains humidity stability within ±2.5%RH,supporting manual water refilling or automatic water supply connection for continuous operation.	Water-Electric Separation System The humidity and temperature control cabinet features a fully isolated water and electrical system to ensure operator safety and reliable operation. By separating the humidification water lines from electrical components, it eliminates the risk of short circuits or leakage, supporting continuous operation under high-humidity.

Expert Tips – Optimizing Thermal–Humidity Testing with LIB Industry

Q1: Can the alternative temperature humidity cabinet handle high-humidity endurance testing?
Yes. The cabinet is engineered to support up to 98% RH at elevated temperatures for long-duration operation. Stable humidification and precise thermal control make it well suited for IEC damp-heat steady-state tests and other high-humidity endurance applications without performance degradation.

Q2: Can temperature and humidity ramp simultaneously?
Yes. The programmable control system allows temperature and humidity to ramp simultaneously or independently, giving users full flexibility to comply with different international standards and customized test profiles.

Q3: Is calibration easy?
Yes. User-friendly calibration functions for both temperature and humidity are built into the control system. This simplifies routine verification, helps maintain long-term accuracy, and reduces dependence on external service support.

Ensure your products withstand long-term moisture, heat, and environmental stress.

LIB industry's Alternative Humidity and Temperature Control Cabinet delivers precise, stable, and repeatable conditions for accelerated reliability testing, qualification, and product certification.

Get your tailored solution and quotation within 1–3 hours.

Fast delivery · 3-year warranty · Lifetime technical support
