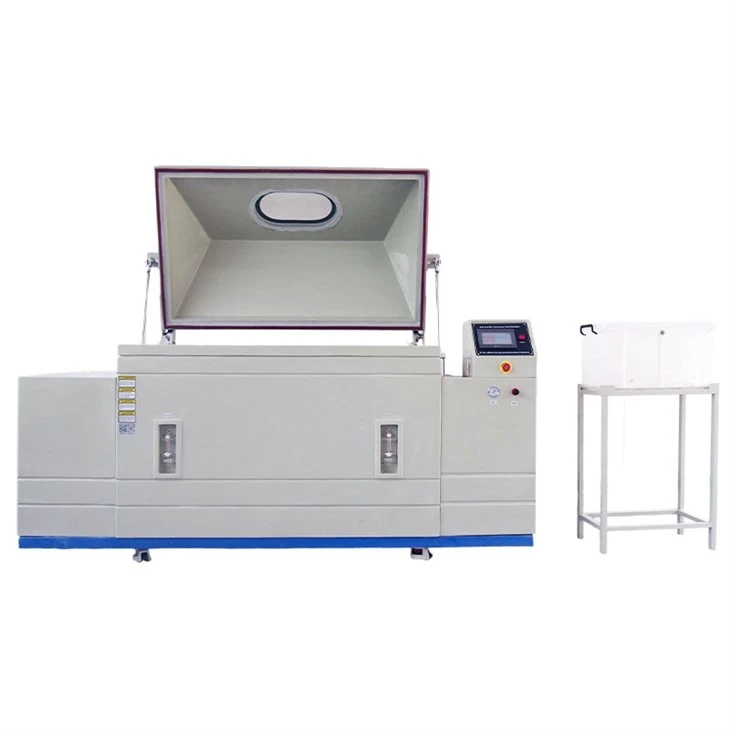

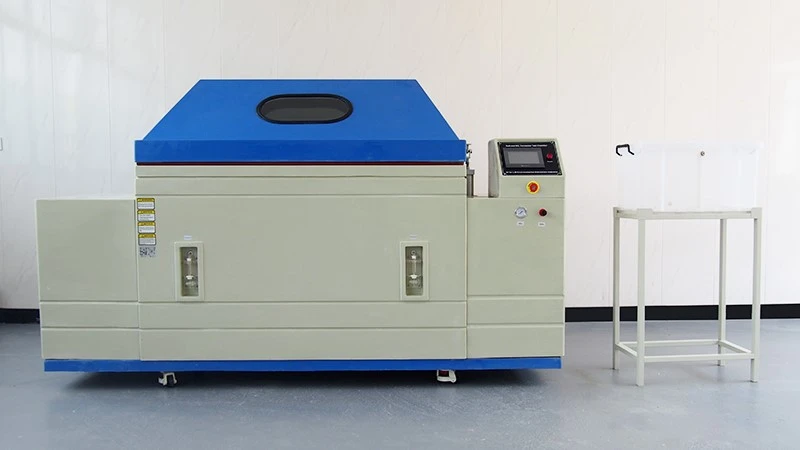

LIB salt fog and SO2 corrosion chamber can simulate the composite corrosion environment of salt fog and SO2 corrosion gas to detect the corrosion resistance of salt fog or SO2 gas in parts, electronic components, metal materials and other protective layers.
High concentration of SO2 gas and salt spray are produced in a closed workroom. SO2 gas concentration, temperature, humidity, exposure time, cycle and other parameters can be controlled.
Key features
Salt Fog and SO2 Corrosion Chamber
Multi-environment coupling tests such as salt spray, humidity and heat, SO₂ gas.
Accurately regulated T&H, gas concentration, spray volume.
Strengthen the corrosive environment and compress the effects of natural exposure for several years to hundreds of hours.
Metal, coating, electronic components, auto parts and other multi material testing,
Sample holder,workroom size can be customized, compatible with abnormal-shaped parts .
Exhaust gas neutralization system, emissions meet EPA standards.
Upgraded FRP material, corrosion resistance, no salt spray, SO2 gas leakage.
parameter list
Salt Fog and SO2 Corrosion Chamber
|
Model |
SSC-010 |
SSC-016 | SSC-020 | |
|
Internal Dimension (mm) |
800*1450*680 |
1000*1600*800 |
1000*2000*900 |
|
|
Overall Dimension (mm) |
2600*1400*1650 |
2750*1600*1800 |
3150*1600*2100 |
|
|
Interior Volume |
780L |
1280L | 1800L | |
|
Temperature Range |
+10 ℃ ～ +90 ℃ |
|||
|
Temperature Fluctuation |
± 0.5 ℃ |
|||
|
Humidity Range |
95% ~ 98% RH |
|||
|
Salt Fog Deposition |
1～2ml / 80cm2 · h |
|||
|
SO2 Gas Control |
Control and display volume of SO2 gas |
|||
|
Cooling system |
Mechanical compression refrigeration system |
|||
|
Air Preheating |
Saturated air barrel |
|||
|
Spraying System |
Atomizer tower and Spray nozzles |
|||
|
Salt Fog Collected |
Fog collector and fog measure cylinder |
|||
|
Sealing |
Pneumatic seal |
|||
|
Air Circulation |
Centrifugal wind fan |
|||
|
SO2 Exhaust Device |
NAOH tank |
|||
|
Material |
Glass fiber reinforced plastics |
|||
| Standard Configuration | 8 round bars and 7 V-shaped grooves | |||
Product details
Salt Fog and SO2 Corrosion Chamber

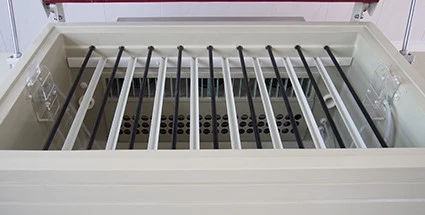

Workroom
The use of corrosion-resistant glass fiber reinforced plastic material, the inner wall is smooth without dead corners, to prevent solution residue.
Equipped with spray device, heating system, humidity control system.
Support multi-gas mixing (such as salt spray +SO₂+ temperature and humidity composite environment)
Humidity Sensor
Monitor the humidity inside the chamber in real time to ensure that the test environment meets standards (such as ISO 9227 or ASTM B117).

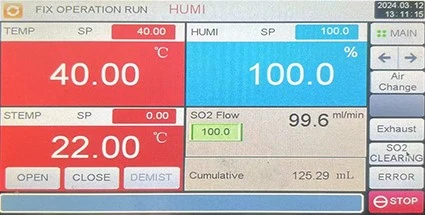

Controller
Control temperature, humidity, spray cycle, gas concentration and other parameters. Support programming mode, remote monitoring.
SO2 Gas Treatment System
The NaOH solution waste gas treatment system neutralizes the acidic gas produced during the operation of the test chamber. A spraying device is added to the NAOH solution tank to accelerate the neutralization reaction.

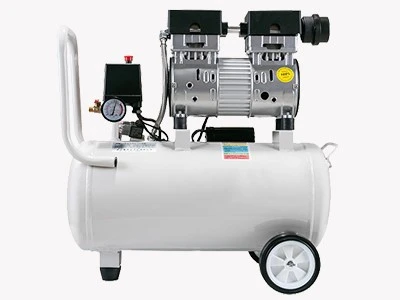

options
The LIB salt fog and SO2 corrosion chamber is specialized in simulating salt spray +SO2 corrosion environment, supporting volume/function customization, and accurately testing material reliability. 24-hour response + lifelong technical support to help you accelerate product development!
