The salt mist test chamber is specifically used for conducting salt mist corrosion tests. Salt water (5% sodium chloride solution) will be sprayed out of the test chamber to create a salt spray atmosphere. The test samples will be placed inside for a period of time, such as 48 hours, 96 hours or even longer, to observe whether there are any phenomena such as rusting, bubbling or peeling. Common applicable standards include ASTM B117, ISO 9227, etc.
Key features
Salt Mist Test Chamber
Simulate the corrosion effect of several months or even years in a real environment within a short period of time (a few days).
Parameters such as temperature, humidity and salt spray concentration are precisely controllable, ensuring the consistency and repeatability of the test.
A variety of test standards, such as ASTM B117, ISO 9227, etc.
Flexible application: metals, coatings, electronic products, automotive parts, aviation materials, etc.
Easy to operate, has a friendly interface and a high degree of automation.
Signs of corrosion (such as rust, bubbling, and cracking) are clearly visible, allowing for a quick assessment of the material.
Corrosion-resistant fiberglass reinforced plastic, stable and reliable long-term usage.
parameter list
Salt Mist Test Chamber
|
Model |
S-150 |
S-250 |
S-750 | S-010 |
|
Internal Dimension (mm) |
590*470*400 |
1000*640*500 |
1100*750*500 |
1000*1300*600 |
|
Overall Dimension (mm) |
1460*760*1140 |
1850*960*1350 |
1950*1030*1350 |
2000*1300*1600 |
|
Interior Volume |
110L |
320L |
410L | 780L |
|
Temperature Range |
Ambient ～ +60 ℃ |
|||
|
Temperature Fluctuation |
± 0.5 ℃ |
|||
|
Temperature Deviation |
± 2.0 ℃ |
|||
|
Humidity Range |
95% ~ 98% RH |
|||
|
Salt Fog Deposition |
1～2ml / 80cm2 · h |
|||
|
Spray Type |
Continuous / Periodic |
|||
|
Salt Fog Collected |
Fog collector and fog measure cylinder |
|||
|
Air Preheating |
Saturated air barrel |
|||
|
Spraying System |
Atomizer tower and Spray nozzles |
|||
|
Controller |
PID controller |
|||
|
Material |
Glass fiber reinforced plastics |
|||
|
Standard Configuration |
6 round bars and 5 V-shaped grooves | |||
Product details
Salt Mist Test Chamber

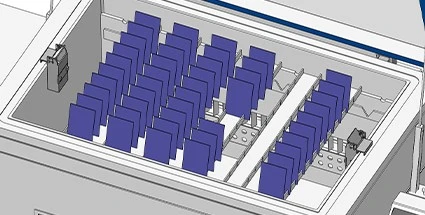

Workroom
Sample holders provide the flexibility to place and angle samples to meet different testing needs based on the design of the sample holders with multiple round bars and V-grooves.
Fog vent design
Recover unsettled salt spray particles to reduce salt liquid consumption. Avoid salt crystallization or impurity blockage to ensure long-term stable operation of the equipment.
Temperature sensor
Temperature sensor uses PT-100 A class of sensors with an accuracy of 0.001 degrees to ensure precise control of the test temperature, helping to make your test extremely accurate and reliable.
Salt mist controller
The touch screen features a switchable language interface, displaying real-time temperature curves as well as vibration spectra. It supports remote control, scheduled startup, and automatic alarm functions.
options
To understanding the crucial role of salt mist test chamber in verifying the corrosion resistance of materials can provide a solid guarantee for your R&D and quality management. Contact LIB immediately for detailed information and professional consultation.
