The LIB salt fog spray test machine simulates corrosive environments to evaluate the salt spray resistance of materials, coatings, electronic components, automotive parts and industrial products. It complies with international standards such as ASTM B117, ISO 9227, IEC 60068-2-11 and JIS Z 2371, ensuring the reliability of the product under harsh conditions such as coastal areas or chemical exposure environments.
Key features
Salt Fog Spray Test Machine
Upgraded fiberglass reinforced plastic material, one-time molding. Salt spray-resistant, sturdy and long-lasting.
Chamber cover and the chamber body are sealed with water to prevent salt spray leakage.
Temperature range (RT ~ 60℃±1℃), salt solution concentration (5% NaCl±0.1%), spray volume (1.0-2.0ml/80cm²/h).
Spray types are available in continuous and periodic types.
Workroom can be customized and is suitable for both small and large components.
Automated systems: salt solution circulation, air saturator and fog collection.
Heating element located at the bottom of the workroom and the circulating fan, quickly stabilize the temperature.
parameter list
Salt Fog Spray Test Machine
|
Model |
S-150 |
S-250 |
S-750 | S-010 |
|
Internal Dimension (mm) |
590*470*400 |
1000*640*500 |
1100*750*500 |
1000*1300*600 |
|
Overall Dimension (mm) |
1460*760*1140 |
1850*960*1350 |
1950*1030*1350 |
2000*1300*1600 |
|
Interior Volume |
110L |
320L |
410L | 780L |
|
Temperature Range |
Ambient ～ +60 ℃ |
|||
|
Temperature Fluctuation |
± 0.5 ℃ |
|||
|
Temperature Deviation |
± 2.0 ℃ |
|||
|
Humidity Range |
95% ~ 98% RH |
|||
|
Salt Fog Deposition |
1～2ml / 80cm2 · h |
|||
|
Spray Type |
Continuous / Periodic |
|||
|
Salt Fog Collected |
Fog collector and fog measure cylinder |
|||
|
Air Preheating |
Saturated air barrel |
|||
|
Spraying System |
Atomizer tower and Spray nozzles |
|||
|
Controller |
PID controller |
|||
|
Material |
Glass fiber reinforced plastics |
|||
|
Standard Configuration |
6 round bars and 5 V-shaped grooves | |||
Product details
Salt Fog Spray Test Machine
Salt Spray Tower
The salt spray tower meets test standards for validity and reliability because they provide effective salt spray at a spray pressure of 83 KPA according to standards such as ASTMB 117.
Salt Solution Tank
The salt solution tank guarantees the accuracy and efficiency of the test results due to the built-in brine mixing system that pushes the brine through the bottom by means of an air source.

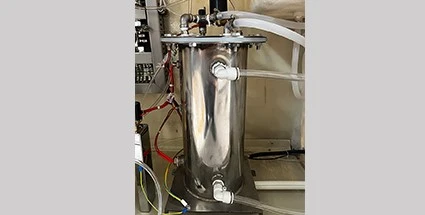

Saturated Tank
The saturated barrel has protection against dry burning.If the water level is low, the spray will stop, and the air source will not be supplied.
Salt Spray Collector
Salt spray collectors guarantee the accuracy and validity of the test results as the salt spray collectors can accurately collect and analyze the concentration, composition, and distribution of the salt spray.
options
The LIB salt fog spray test machine supports customization: size, sample holder and etc. LIB has provided tailor-made solutions for the automotive, aerospace, military and consumer electronics industries. Contact LIB for customized configuration, support and one-stop corrosion testing solutions.
