Compared with single salt spray chamber, the salt spray corrosion test chamber integrates multiple environmental conditions such as salt spray, drying, high temperature and high humidity, and low temperature, and can achieve cyclic corrosion testing (CCT), more truly reflecting the corrosion behavior of products in actual usage environments. It is widely applied in industries such as automobiles, aerospace, electronics and electrical appliances, metal products, and coating materials.
Key features

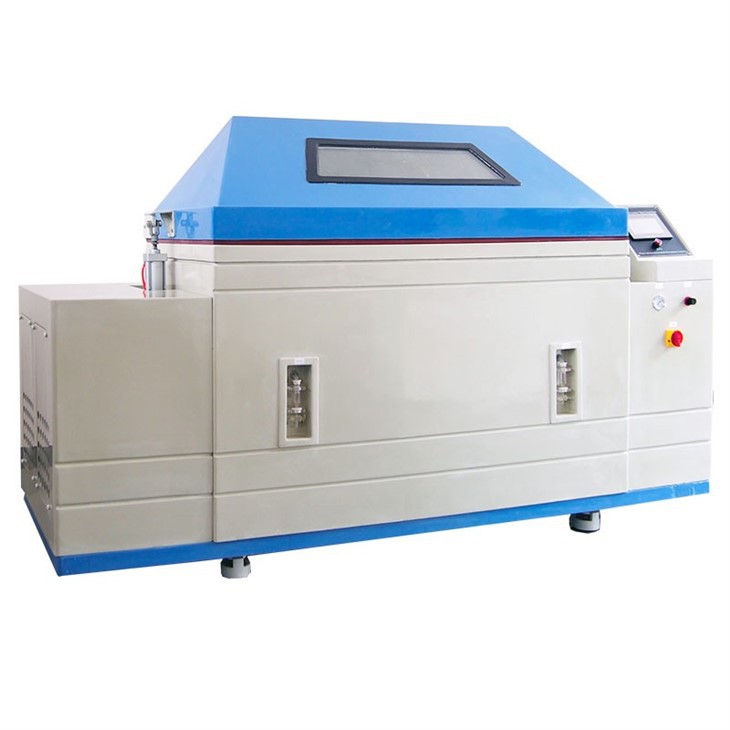

Salt Spray Corrosion Test Chamber
Realize automatic cyclic tests in various environments such as salt spray, dryness, wet heat and normal temperature.
High-precision temperature and humidity control system ensures a stable and reliable testing environment.
Tower-type spray + air pressure regulation structure, ensuring uniform and stable mist particles.
Sedimentation rate is controlled at: 1.0-2.0ml/80cm²/h (conforming to ASTM B117 standard).
Color touch screen +PLC control system, supporting program storage and data export (USB).
Fiberglass reinforced plastic, it is resistant to high temperatures and acid and alkali corrosion.
The placement angle of the sample rack is adjustable and can be customized.
parameter list
Salt Spray Corrosion Test Chamber
|
Model |
SC-010 |
SC-016 | SC-020 | |
|
Internal Dimension (mm) |
1300*1000*600 |
1600*900*720 |
2000*1000*800 |
|
|
Overall Dimension (mm) |
2000*1300*1600 |
2300*1300*1700 |
2700*1300*1900 |
|
|
Interior Volume |
780L |
1280L | 1800L | |
|
Temperature Range |
+10 ℃ ～ +90 ℃ |
|||
|
Temperature Fluctuation |
± 0.5 ℃ |
|||
|
Temperature Deviation |
± 2.0 ℃ |
|||
|
Humidity Range |
95% ~ 98% RH |
|||
|
Humidity Deviation |
+ 2%, - 3% |
|||
|
Salt Fog Deposition |
1～2ml / 80cm2 · h |
|||
|
Cooling system |
Mechanical compression refrigeration system |
|||
|
Water supply system |
Water purification system |
|||
|
Air Preheating |
Saturated air barrel (31Liter) |
|||
|
Spraying System |
Atomizer tower and Spray nozzles |
|||
|
Salt Fog Collected |
Fog collector and fog measure cylinder |
|||
|
Controller |
Programmable color LCD touch screen controller, Ethernet connection |
|||
|
Air Circulation |
Centrifugal wind fan |
|||
|
Material |
Glass fiber reinforced plastics |
|||
| Standard Configuration | 8 round bars | |||
Product details
Salt Spray Corrosion Test Chamber
Workroom
Inverted V-shaped cover prevents salt spray condensation from affecting test parts and tests, and seals around the cover with water to prevent salt spray leakage
Salt Solution Tank
The salt water tank ensures a valid and reliable test that is strictly according to test standards like ASTMB117. To be specific, the percentage of salt solution is controlled to be 5±1% sodium chloride solution by mass and the pH value of the solution is sternly maintained between 6.5 and 7.2.
Salt Spray Collector
Salt spray collectors ensure that the testing process complies with standards such as ASTMB117, which specifies a salt spray deposition of 1 to 2 ml/80 cm² ·h, with a high degree of reliability.
Controller
PID intelligent algorithm, temperature control accuracy up to ±0.5℃, humidity control accuracy of ±2%RH, to ensure stable test conditions.User-defined temperature and humidity curves are supported.
options
Choose the salt spray corrosion test chamber, LIB offers a three-year warranty and lifetime service to eliminate your worries about testing. Contact LIB to get free technical solutions and customized quotations!
