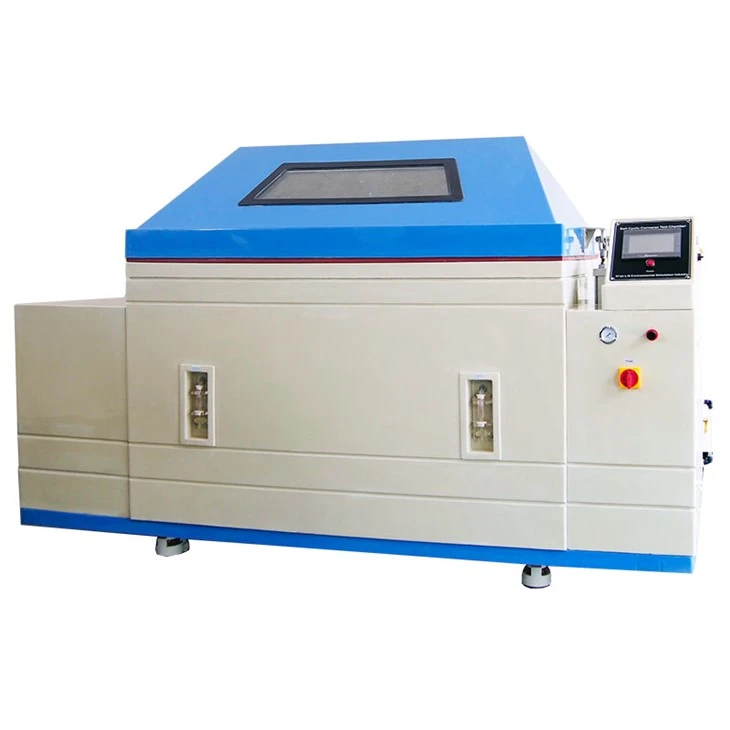

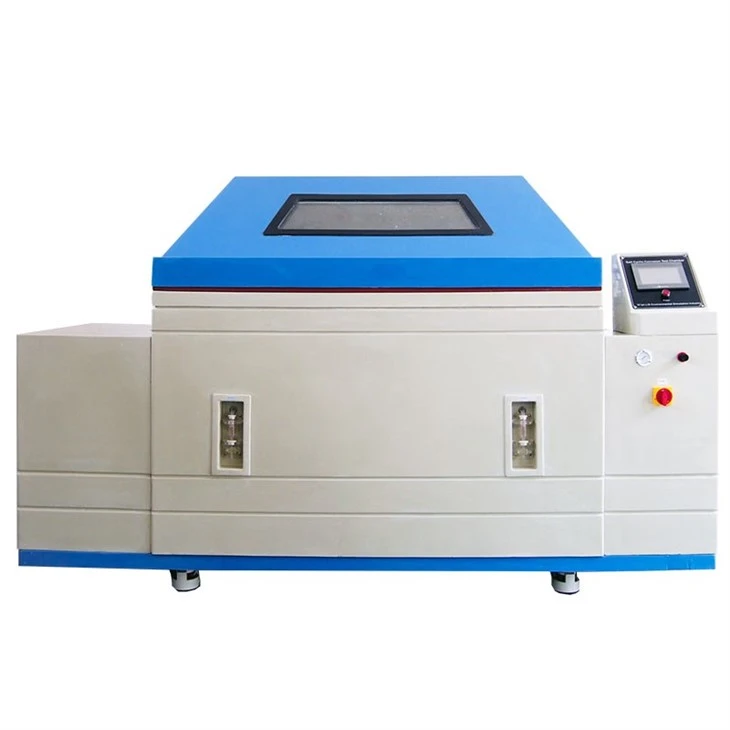

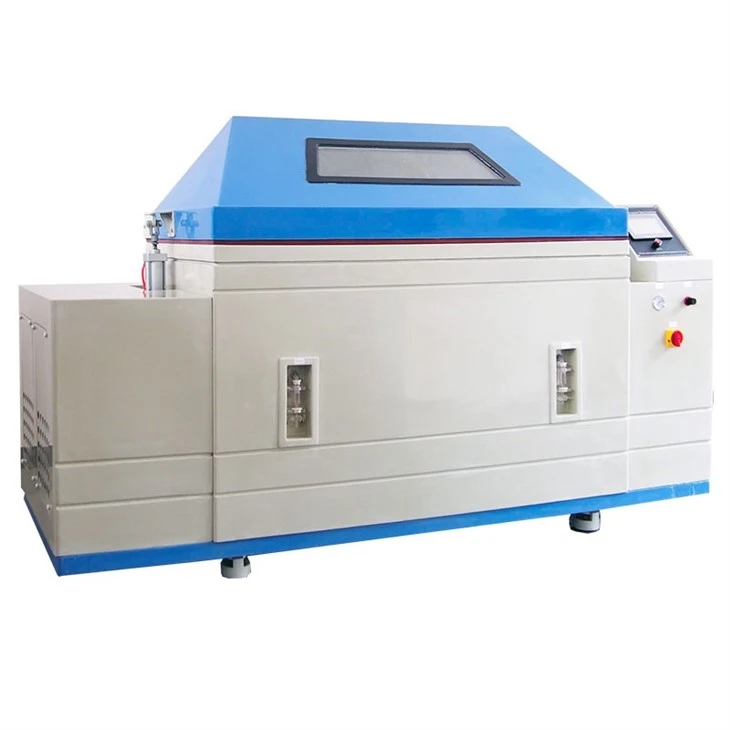

The salt fog humidity cyclic corrosion test chamber is more complex and closer to the real environment than the traditional single salt spray test chamber, including salt spray, humidity, drying and temperature cycles, which are commonly used to assess the corrosion resistance of various materials and coatings. The salt spray humidity cyclic corrosion test chamber is to ensure the reliability and service life of materials and products in coastal, marine, high humidity and corrosive environment.

Key features

Salt Fog Humidity Cyclic Corrosion Test Chamber

Salt spray (NSS/AASS/CASS) and wet cycle corrosion test modes

The whole machine is made of glass fiber reinforced plastic, which is stronger and does not leak salt spray

Tower spray structure, uniform distribution of fog particles, no dead angle, controllable settlement

Customized cycle flow, such as "salt spray → wet heat → dry → static", automatic continuous operation

With over temperature, water shortage, abnormal atomization, air pressure alarm

Diverse volumes can be selected, support non-standard,sample holder customization

ASTM B117, ISO 9227, IEC 60068-2-11 and other standards

parameter list

Salt Fog Humidity Cyclic Corrosion Test Chamber

Model	SC-010	SC-016	SC-020
Internal Dimension (mm)	13001000600	1600900720	20001000800
Overall Dimension (mm)	200013001600	230013001700	270013001900
Interior Volume	780L	1280L	1800L
Temperature Range	+10 ℃ ～ +90 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	95% ~ 98% RH
Humidity Deviation	+ 2%, - 3%
Salt Fog Deposition	1～2ml / 80cm2 · h
Cooling system	Mechanical compression refrigeration system
Water supply system	Water purification system
Air Preheating	Saturated air barrel (31Liter)
Spraying System	Atomizer tower and Spray nozzles
Salt Fog Collected	Fog collector and fog measure cylinder
Controller	Programmable color LCD touch screen controller, Ethernet connection
Air Circulation	Centrifugal wind fan
Material	Glass fiber reinforced plastics
Standard Configuration	8 round bars

Product details

Salt Fog Humidity Cyclic Corrosion Test Chamber

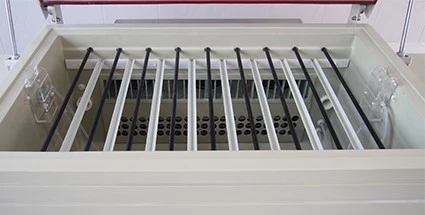

Sample Holder

Customized insert sample holders and fixtures allow for flexibility and ease in meeting test accuracy and stability based on sample shape, quantity, size, and test requirements.

salt fog humidity cyclic corrosion test chamber7

Salt Water Mixing System

The bubble-type brine stirring system continuously injects air into the brine tank to form uniform bubbles that stir the liquid, effectively preventing salt sedimentation.

salt fog humidity cyclic corrosion test chamber6

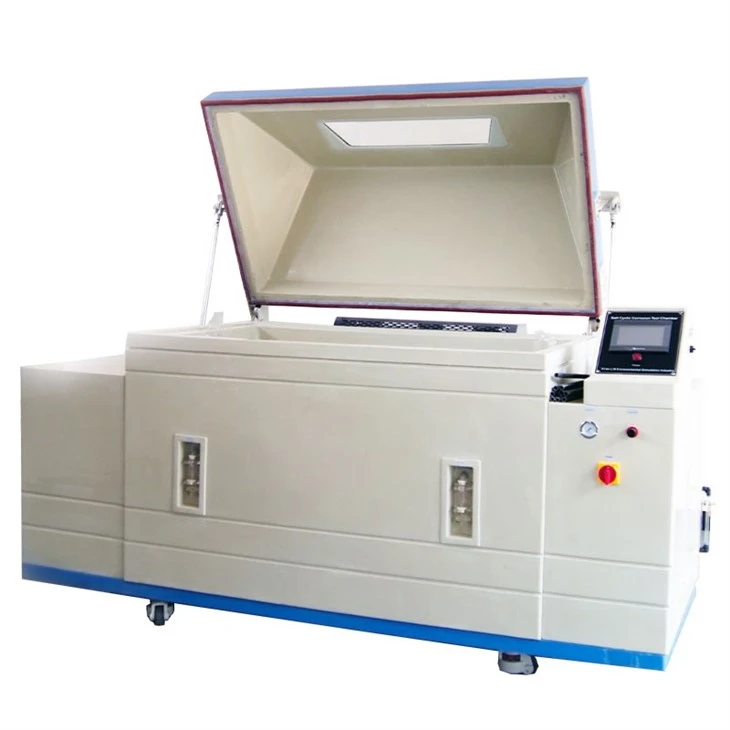

Pneumatic Open/Close Lid

Pneumatic open/close lids provide a safe, more precise test environment. It ensures consistent opening and closing every time, especially in environments where high precision testing is required, ensuring equipment and sample stability.

salt fog humidity cyclic corrosion test chamber5

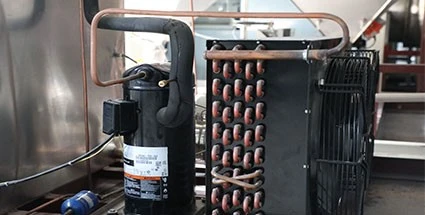

Refrigeration System

The refrigeration system lowers the air temperature, causing the water vapor in the moist air to condense and be discharged on the surface of the evaporator. This process provides ideal conditions for the drying cycle or humidity conversion stage.
