Constructed from SUS 316 stainless steel, walk-in corrosion test chamber withstands prolonged exposure to aggressive corrosive environments. It supports NSS, AASS, CCT, and SO₂ gas tests, allowing multiple testing methods in one unit. it ensures consistent and reproducible results in compliance with ASTM B117, ISO 9227, and IEC 60068-2-11. Its walk-in design accommodates large assemblies or multiple samples, while maintaining uniform test conditions through the rational layout of multiple spray systems.
Key Advantages
Walk In Corrosion Test Chamber
Large-Scale Testing Capability – Suitable for complete vehicles, home appliances, large metal components, and assemblies. The walk-in design accommodates batch or whole-piece testing with ease.
Flexible Corrosion Testing – Supports NSS, AASS, CASS, CCT, and SO₂ tests (optional), allowing multiple corrosion protocols in one chamber. Complies with ASTM B117, ISO 9227, IEC 60068-2-11 standards.
Wide Environmental Range – Temperature +10 °C to +90 °C, humidity 30%–98% RH, with precise control (±0.5 °C fluctuation, ±2 °C deviation, humidity +2%/-3%) to simulate diverse corrosive conditions.
Automated and Programmable Operation – PID touchscreen controller allows precise setting of temperature, spray time, and intermittent cycles; supports multi-group program memory and fully automated operation.
Uniform Salt Spray Distribution – Vertical salt spray tower with built-in quartz nozzles ensures even atomization, continuous or intermittent spray, and consistent deposition of 1–2 ml/80 cm²·h.
Durable and Corrosion-Resistant Construction – Workroom and tower made from SUS 316 stainless steel, resistant to high humidity, high temperature, and salt spray corrosion; smooth surfaces prevent residue buildup.
Customizable and Scalable – Chamber size and sample racks can be tailored; compatible with S and SSC series customization. Ideal for automotive, aerospace, electronics, coatings, and large-scale industrial applications.
Technical Specifications
Walk In Corrosion Test Chamber
|
Name |
Walk In Corrosion Test Chamber |
|
Temperature Range |
+10 ℃ ～ +90 ℃ |
|
Temperature Fluctuation |
± 0.5 ℃ |
|
Temperature Deviation |
± 2.0 ℃ |
|
Humidity Range |
30% ~ 98% RH |
|
Humidity Deviation |
+ 2%, - 3% |
|
Salt Fog Deposition |
1～2ml / 80cm2 · h |
|
Cooling system |
Mechanical compression refrigeration system |
|
Water supply system |
Water purification system |
|
Air Preheating |
Saturated air barrel |
|
Spraying System |
Atomizer tower and Spray nozzles |
|
Salt Fog Collected |
Fog collector and fog measure cylinder |
|
Controller |
Programmable color LCD touch screen controller, Ethernet connection |
|
Air Circulation |
Centrifugal wind fan |
|
Safety Device |
Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection |
|
Material |
SUS 316 stainless steel |
Product Details
Walk In Corrosion Test Chamber
Spray Tower
- Vertical tower with built-in quartz nozzles for uniform atomization of salt solution.
- Supports continuous or intermittent spray, adjustable via controller.
- Salt fog deposition rate: 1–2 ml/80 cm²·h, ensuring consistent and reproducible corrosion exposure.
- Tower height and number can be customized based on chamber size.

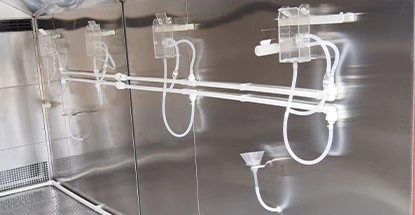

Salt Fog Distribution Pipe
- Salt fog distribution pipe with multiple precision holes to inject and evenly distribute salt fog into the chamber.
- Prevents localized oversaturation, maintaining consistent deposition rates.
Sample Racks
- Flexible installation: racks, hangers, or custom track systems,the angle for placing the sample can be adjusted.
- Stainless steel material, resistant to high humidity and salt corrosion.
- Supports whole-piece testing or multiple samples simultaneously.

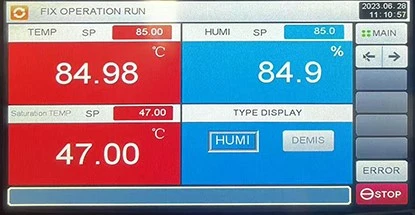

Remote Control System
- Programmable PID touchscreen for precise control of temperature, humidity, spray duration, and intermittent cycles.
- Multi-program memory with fully automated operation.Ethernet connectivity for remote monitoring and data logging.
- Safety alerts for over-temperature, water shortage, or system faults.
LIB industry walk-in corrosion test chambers come with a 3-year warranty and lifetime service, 7~15 day fast delivery.Tell us your test needs, and LIB industry team will provide a personalized Walk-In Salt Spray Chamber solution in 1–3 hours, with full technical guidance and ongoing support sales@libtestchamber.com .
