LIB Environmental Chambers: Advanced Testing Solutions For The Automotive And New Energy Vehicle Industry

Introduction

The automotive and new energy vehicle (NEV) industry is undergoing unprecedented transformation, driven by electrification, digitalization, and stricter global regulations. With this shift comes a greater demand for rigorous environmental testing-a critical step in validating the durability, safety, and long-term performance of components and systems.

In response to growing demands for electric vehicle reliability and consumer safety, test validation has shifted from simple endurance checks to complex multi-condition simulations. These include combinations of thermal cycling, humidity, corrosive gases, pressure changes, and real-time functional monitoring. LIB's investment in automation, data acquisition, and safety control ensures each chamber meets these next-generation testing demands.

LIB, a professional environmental test chamber manufacturer with over 16 years of industry expertise, delivers tailor-made testing solutions for automotive OEMs, battery manufacturers, EV component suppliers, and Tier 1 integrators.

1. Environmental Testing in the Automotive & NEV Supply Chain

Modern vehicle development-especially in NEVs-requires a layered and highly diversified testing approach. Below are key areas where LIB test chambers enable effective R&D and compliance:

A. Power Battery System Testing

Thermal performance at extreme temperatures

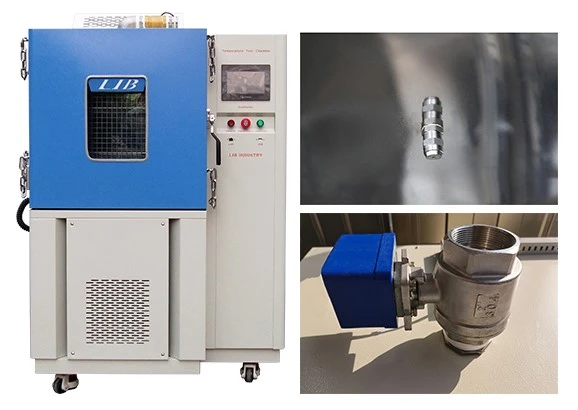

Battery modules and packs must perform reliably across wide ambient ranges. LIB offers battery environmental test chambers capable of simulating -70 °C to +150 °C with ±0.5 °C precision. These chambers are critical for testing:

Charging/discharging efficiency

Cell balancing under temperature stress

Cold cranking and low-temperature start-up

Battery thermal runaway mitigation behavior

Altitude and pressure simulation for air transport safety
Chambers can simulate up to 5,000 meters elevation, in compliance with UN38.3 air transport standards.

Safety-first design
LIB battery chambers feature:

Multi-layer insulation

Explosion relief panels

Gas detection & exhaust system

Fire suppression integration

B. Automotive Electronics Reliability

With increased electronic content-from ECUs to LiDAR units-the need to ensure thermal stability and moisture resistance is paramount.

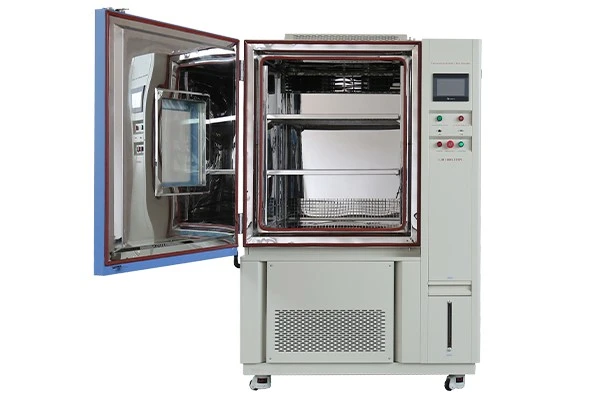

Temperature humidity environmental chambers are used to validate:

ECUs, sensors, infotainment under long-term thermal stress

Condensation resistance for windshield cameras and radar

Conformal coating effectiveness

Testing standards: ISO 16750-4, IEC 60068-2-38, SAE J1455

C. Mechanical Durability of Exterior Components

Vehicle grilles, emblems, lighting assemblies, connectors, and paint coatings must endure years of harsh environmental exposure.

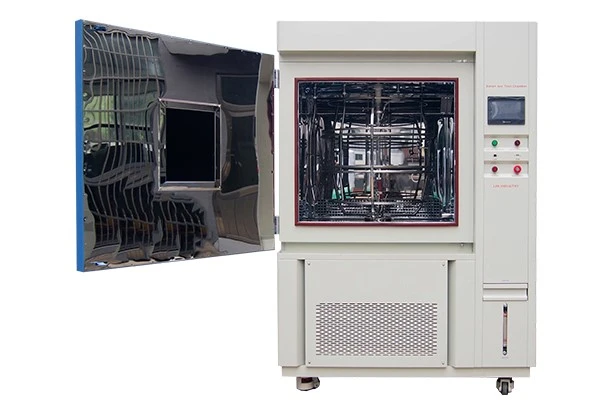

Xenon arc weathering test chambers simulate UV radiation, temperature cycling, and humidity

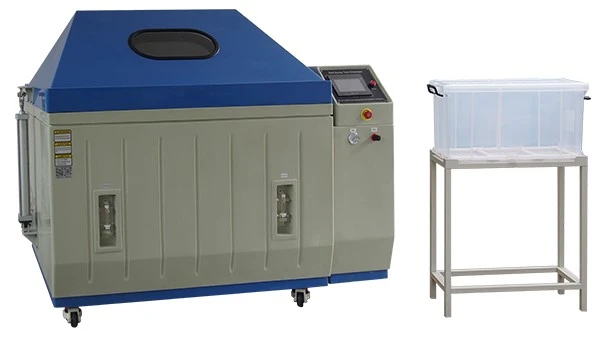

Salt spray test chambers test resistance to salt-laden atmospheres and coastal corrosion

Customizable for:

Alternating corrosion cycles (AASS, CASS)

Integration with drying and neutralizing stages

Compliant with ASTM B117, ISO 9227, PV 1210 (VW)

D. Ingress Protection (IP) for On-Vehicle Electronics

Electric vehicles demand robust water and dust protection for high-voltage connectors, charge ports, and underbody systems.For high-voltage battery enclosures, electric motors, and onboard charging systems, LIB's IPX9K high-pressure water spray chambers simulate real-world vehicle wash and underbody splash conditions. Custom turntables and oscillating nozzles ensure uniform exposure from all directions, while test data can be logged and exported for certification reporting.

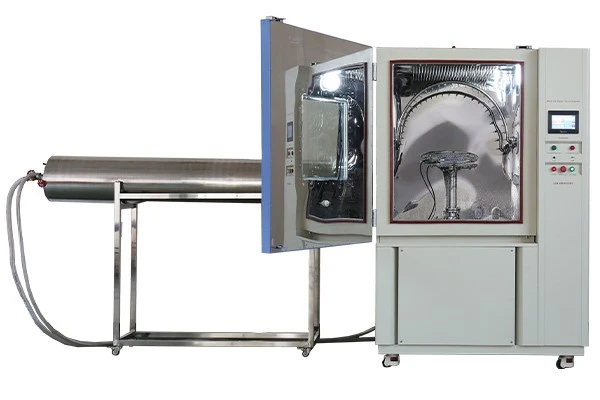

Water spray chambers support IPX1 to IPX9K water ingress testing

Dust test chambers simulate sandy and dusty environments in line with IEC 60529, ISO 20653

IP6K9K systems designed with turntables, nozzles, and pressure pumps for active splash simulation

E. Full-Vehicle Environmental Simulation

LIB also supports:

Walk-in chambers for entire e-bike, motorcycle, or scooter prototypes

Split-type test chambers for powertrain sub-assemblies or large inverters

Rapid thermal cycling(e.g., -40 °C to +80 °C in <30 minutes) for accelerated life tests

Each chamber can be customized with side or ceiling access, integrated power input for live operation, and remote monitoring systems.

2. Customization Capabilities

Unlike standard catalog suppliers, LIB provides:

Full non-standard design service (custom size, door type, access ports, stacking)

Test cycle programming (step/hold cycles, ramp/soak curves)

Integration with battery cyclers, CAN monitoring systems, and data acquisition modules

Modular safety options based on tested sample (e.g., EV battery vs plastic shell)

Every chamber is built to reflect real-world applications and evolving industry test standards.

3. Compliance with Global Automotive Standards

LIB chambers support compliance with key automotive environmental test standards:

4. Trusted by Global Automotive Leaders

LIB serves OEMs and leading Tier 1 suppliers in Europe, Asia, and North America. Past customers include electric vehicle startups, battery giants, automotive labs, and national testing institutes.

Our chambers have been used in testing:

Motor drive units for electric sedans

Battery management systems (BMS)

Charging interfaces

LED lighting modules and plastic trim parts

5. Conclusion: Accelerate Your Automotive Testing with LIB

The push toward electrification and high reliability requires faster, more flexible, and safer environmental testing.

LIB is ready to deliver:

Full-cycle environmental test chamber design and production

Global delivery and on-site installation

Lifetime technical support, remote diagnostics, and upgrade paths

As the global auto market shifts toward sustainability and smart technologies, the need for robust environmental validation will only grow. Partnering with LIB means working with a manufacturer that understands not just testing-but the engineering intent behind each test. Whether you're validating the next-generation EV drivetrain or optimizing a battery cooling strategy, LIB is the test partner of choice.
