As solar panel technology advances and module sizes grow, testing equipment must evolve in step. At LIB, we've reimagined the internal structure of our UV preconditioning test chamber to keep pace with industry trends-and ensure every inch of your 1.5 m × 2 m PV module receives consistent, standards compliant UV exposure.
Why UV Preconditioning Matters
Before subjecting photovoltaic modules to thermal cycling or humidity-freeze tests, it's critical to understand how UV radiation affects their materials-particularly encapsulants, adhesives, and backsheet coatings. UV preconditioning per IEC 61215 (MQT 10 sequence) simulates years of sun exposure in just hours, revealing vulnerabilities that could shorten field lifetime.
The Challenge of Larger Modules

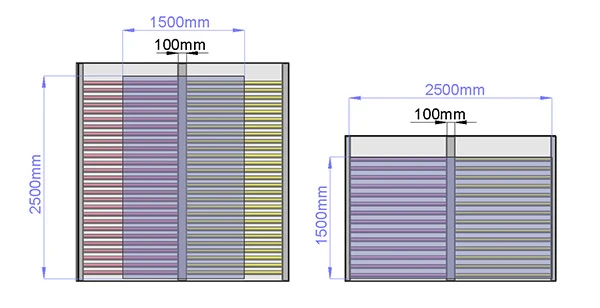

Traditionally, UVP chambers were built around 1 m × 2 m specimens, featuring two horizontal rows of 1,200 mm lamps arranged in a 1,500 mm × 2,500 mm footprint with a 100 mm gap. While perfectly adequate for earlier module sizes, this layout leaves edges under irradiated when faced with 1.5 m × 2 m panels-creating "blind spots" and uneven dose distribution.
LIB's Structural Breakthrough
To close these gaps, our engineering team introduced two key innovations:
Upside-Down Lamp Arrangement
By inverting the UV lamp rows so they point downward, we extended the effective irradiated area to fully cover 1.5 m lengths-eliminating the need for multiple passes or cumbersome repositioning.
Vertical Gap Fillers
Within the original 100 mm spacing, we've added two vertical UV lamps. These fill in residual shadow zones, boosting uniformity across the panel surface and delivering a consistent irradiance map from edge to edge.
Together, these tweaks ensure that every section of a full-size PV module receives the same UV dose-no more weak spots, no more retesting.
Key Features at a Glance

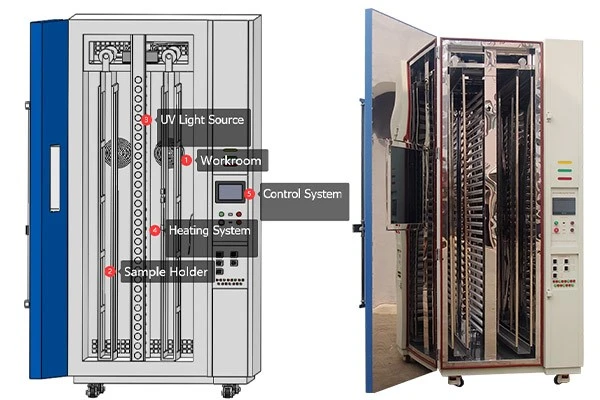

Models: UVP-02 / UVP-04 / UVP-06 / UVP-08
Internal Dimensions: 1,450 mm × 745 mm × 2,500 mm (D × W × H)
Sample Capacity: Holds up to two full-size modules (1.5 m × 2 m)
Lamp Configuration: 20 UVA + 10 UVB fluorescent tubes, delivering up to 250 W/m² irradiance
Control: Programmable color touch controller for precise temperature (ambient–90 °C), black panel temperature (35–80 °C), and UV dose settings
The LIB Advantage
By combining IEC 61215 compliance with our inventive lamp layout, LIB's UV preconditioning test chamber offers:
Full-Size Coverage for today's larger modules
Superior Uniformity via vertical gap illumination
Efficient Throughput-process two panels simultaneously
Reliable Results that feed seamlessly into downstream thermal-humidity testing
Ready to Upgrade Your Testing?
Don't let outdated chamber designs hold your R&D back. Contact LIB today to learn how our next-generation UV preconditioning test chamber can accelerate qualification of your newest PV modules-ensuring they'll stand up to the sun for decades to come.
