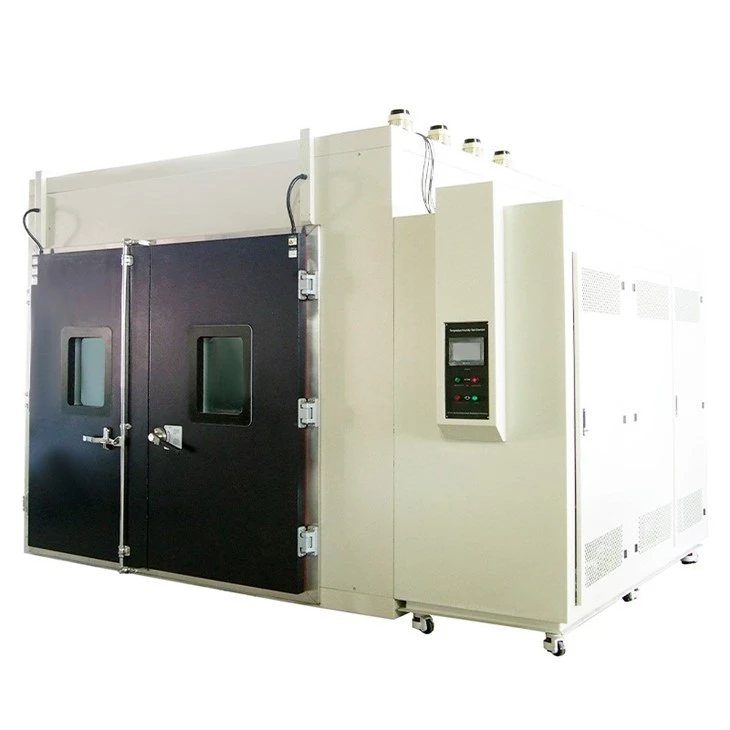

These large environmental chambers are tailored for oversized components, full-vehicle modules, aerospace structures, EV battery assemblies, and industrial equipment requiring large-volume, high-stability environmental control.

With temperature ranges from –70°C to +150°C, humidity control from 20–98% RH, and configurable test room capacities from 5 m³ to 60 m³ (customizable beyond 100 m³), LIB industry's custom large environmental chambers deliver stable, repeatable, and precise testing conditions for qualification, validation, reliability, and stress screening programs.the integrated walk-in series offers greater test loading capacity, multi-point airflow uniformity, and modular mechanical architecture, ensuring consistent performance even under full-scale operational loads.

Key Advantages of Integrated Testing Custom Large Environmental Chamber

High-Capacity Airflow for Large-Volume Uniformity

A multi-duct circulation system maintains ±0.5°C temperature uniformity across test rooms up to 60 m³.Air velocity of 1.5–3.0 m/s ensures identical stress exposure to components of varying size and placement, supporting high-reliability and repeatable evaluation of large assemblies

High-Power Thermal & Humidity Control System

Equipped with evaporators, modular heater, and dual-loop refrigeration, the custom large environmental chamber delivers:

Heating rate: 3°C/min

Cooling rate: 1°C/min

Humidity stability: ±2.0% RH
This performance enables demanding climatic cycling, material behavior simulation, and environmental endurance programs.

Reinforced Structural Insulation

A 100 mm multi-layer insulation barrier with thermal-deviation compensation modules ensures stable control even during long-duration cycling.

Designed for High-Duty Testing Cycles

The integrated testing custom large environmental chamber is engineered for continuous operation, supporting:2,000+ test cycles,24/7 stable running.Ideal for reliability qualification, accelerated life testing (ALT), and HALT/HASS-level environmental simulation.

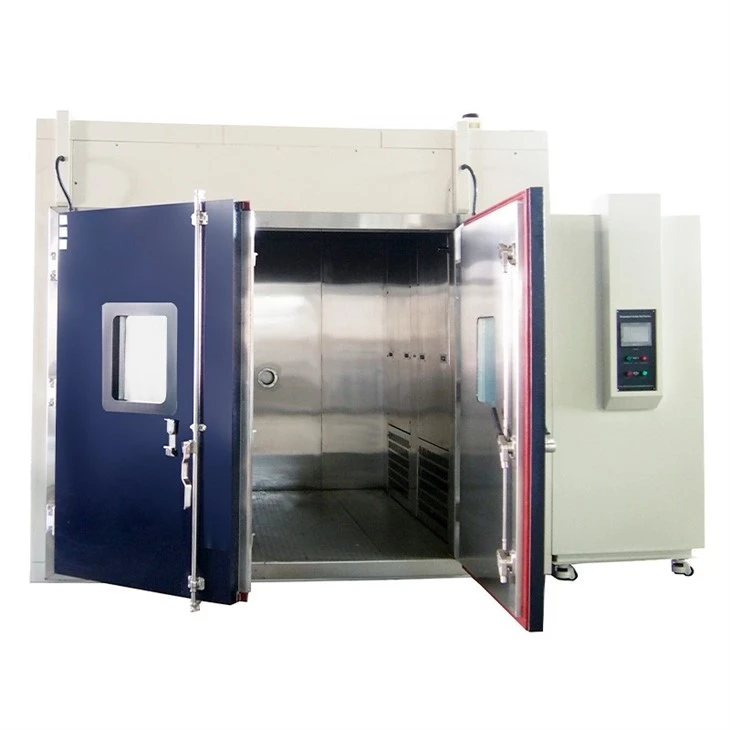

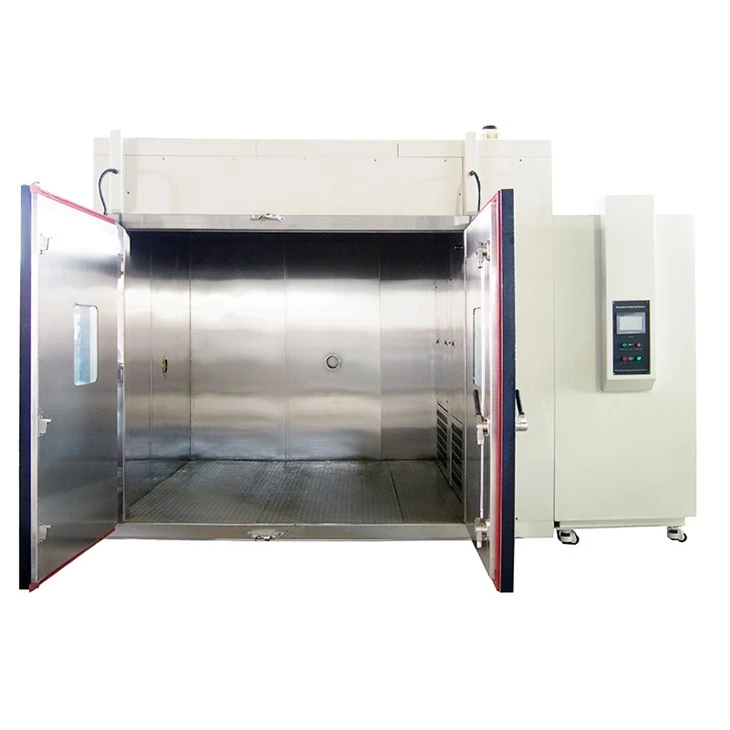

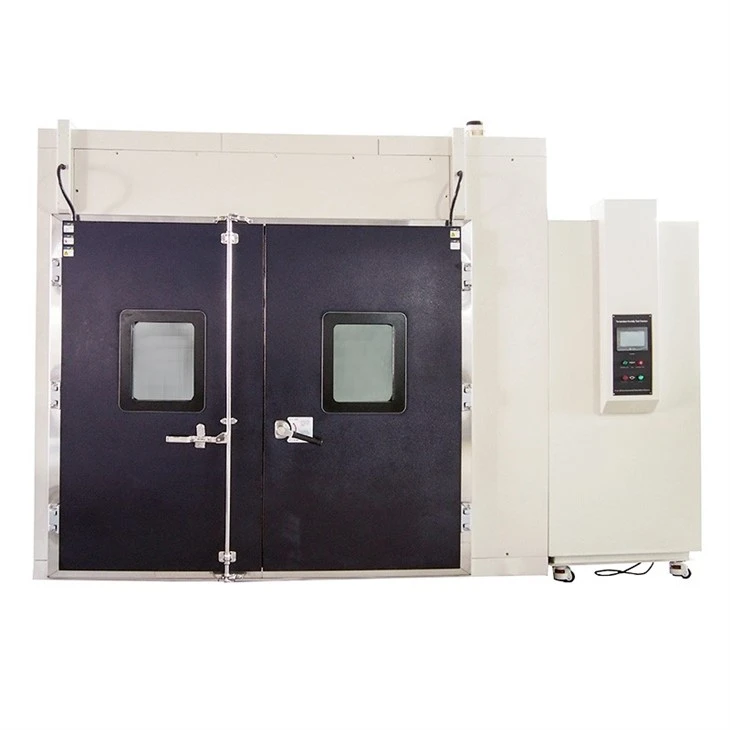

Flexible Walk-In Design for Oversized & Heavy Samples

The walk-in configuration allows operators to enter the test area directly, making handling and installation of oversized, high-weight, or fully assembled products safe and efficient. Reinforced flooring and structural support ensure load stability without compromising environmental uniformity.

Fully Customized, Turnkey Testing Solutions by LIB industry

LIB industry provides end-to-end custom large-scale environmental testing solutions, including system design, manufacturing, delivery, on-site installation, commissioning, and operator training.

Available configurations include:

Walk-in temperature and humidity chamber

Walk-in salt spray corrosion chamber

Walk-in dust and sand test chamber

Walk-in rain test chamber

Customized walk-in special environmental chambers

Each system is engineered around your test standards, sample dimensions, and site conditions, ensuring reliable performance from day one and reducing long-term operational risk.

Fully Customizable Configurations

LIB industry provides application-specific customization of integrated testing custom large environmental chamber such as:

Walk-in size (5–100+ m³)

Double-door or automatic sliding door

High-load floors

Observation windows, internal cameras

Integrated power & signal ports

Structural reinforcements for heavy EV battery packs

Optional fast cycling upgrades up to 5–15°C/min

What Are the Technical Specifications You Need to Know?

Name	Integrated Testing Custom Large Environmental Chamber
Model	Walk-Ins
Internal Dimension (mm)	As request
Overall Dimension (mm)	As request
Temperature Range (℃)	A: -20℃ ～+150 ℃ B:-40℃ ～+150 ℃ C:-70℃ ～+150 ℃
Humidity Range (R.H)	20% ~ 98% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Controller	Programmable color LCD touch screen controller,PC Link, LAN interface for remote control
Cooling system	Mechanical compression refrigeration system
Refrigerant	Environmentally friendly refrigerant,compliant with the GWP standards requirements
Water supply system	Automatic water supply; Water purification system
Safety device	Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection;
Interior Material	SUS304 stainless steel
Exterior Material	Steel Plate with protective coating

Product Highlights – Integrated Testing Custom Large Environmental Chamber

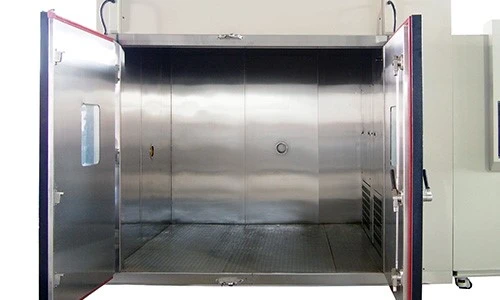

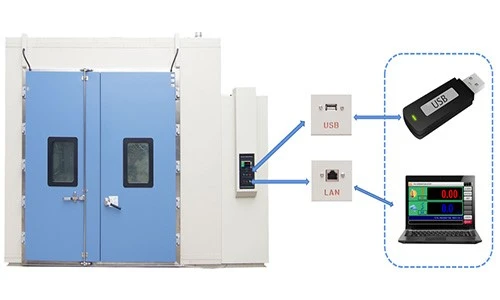

Large Workroom / Ultra-Large Interior Space The integrated testing custom large environmental chamber features a reinforced SUS304 stainless steel interior with high-load floors and modular shelving, accommodating oversized components such as EV battery packs, aerospace modules, or large industrial assemblies.	Intelligent Control & Multi-Point Monitoring The advanced control system features: industrial touchscreen controller Multi-zone PID regulation LAN/USB/RS485 interfaces Large data storage Real-time trend display & remote monitoring

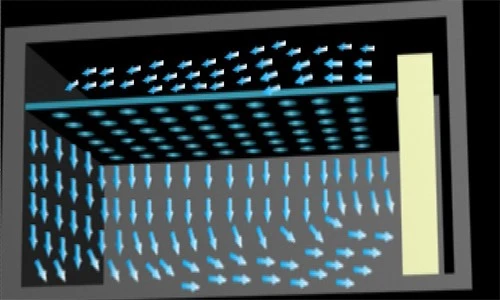

Airflow Distribution System Vertical + horizontal air ducts with adjustable diffusers ensure uniform temperature and humidity distribution across the entire chamber, maintaining ±1.0°C uniformity even under full load.	Cable & Sensor Access Ports Multiple Ø50,Ø100,Ø150 mm ports for power cables, sensors, or signal lines enable dynamic testing and in-situ monitoring without compromising thermal uniformity. The number and location of the test holes can be customized.

Key Recommendations for Reliable Large-Volume Reliability Testing

1. How does the integrated testing custom large environmental chamber maintain temperature stability in large volumes?

A multi-zone PID control system coordinates heating, cooling, and humidity subsystems. Real-time compensation algorithms ensure stable performance with ±0.5°C stability and ±1.0°C uniformity, even under high internal thermal loads.

2. Is it possible to perform multi-condition combined testing in the same room?

Yes. Custom configurations allow combining temperature, humidity, airflow, lighting, or dust filtration modules within a single walk-in chamber to simulate real-world operational environments more accurately.

3. Are ultra-fast thermal cycle upgrades available?

Yes. Optional modules provide up to 5–15°C/min transitions for high-stress, high-speed reliability verification programs.

LIB industry's Integrated Testing Custom Large Environmental Chamber is built for precision, durability, and scalability, supporting complex reliability evaluations in automotive, aerospace, electronics, energy storage, and industrial sectors.With strong engineering capability and decades of specialized experience, LIB industry delivers fully customized, large-volume climatic simulation systems designed to fit your test objects, performance requirements, and facility layout.
