In today's competitive market, the long-term durability and weatherability of your products are paramount. From automotive paints and outdoor textiles to roofing materials, ensuring they can withstand years of sun, rain, and temperature extremes is a critical business advantage. But how can you predict years of environmental degradation in just a few weeks?
The answer lies in a combination of rigorous international testing standards and the precise equipment that executes them: accelerated weathering test chambers. This article explores key ASTM, ISO, and AATCC standards and introduces you to LIB's high-performance Xenon Arc and UV Weathering Test Chambers-the ideal solutions for ensuring your product's longevity.
The Blueprint for Durability: Key International Testing Standards
International standards provide a unified, scientific methodology for testing material durability. Here's how some of the most common standards apply and which LIB chamber is best suited for them.
|
Standard |
Material Application |
Key Test Parameters |
Recommended LIB Chamber |
|
ASTM D6695 / ISO 11341 |
Paints, Coatings, Varnishes |
Full-spectrum sunlight (UV, Vis, IR), cyclic rain, temperature |
Xenon Arc Test Chamber |
|
AATCC TM169 |
Textiles, Coated Fabrics |
Sunlight radiation, moisture, colorfastness, strength loss |
Xenon Arc Test Chamber |
|
ASTM D4798 |
Bituminous Materials (Asphalt) |
Heat, oxygen, UV light exposure |
Xenon Arc Test Chamber |
|
ASTM D4811 |
EPDM Rubber Roofing Sheets |
UV degradation, ozone resistance, cracking |
UV Weathering Chamber |
|
ASTM D925 |
Rubber Products |
Surface staining (contact, migration) |
UV or Xenon Chamber |

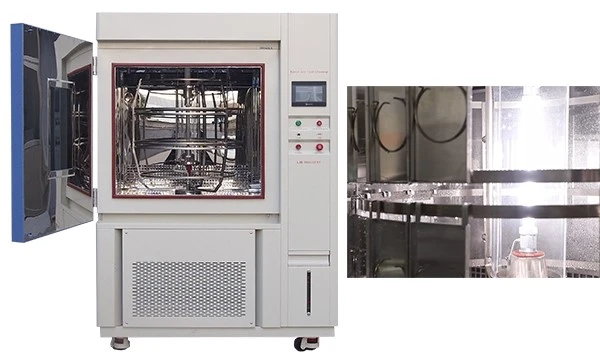

Why a LIB Xenon Arc Test Chamber is Your Best Choice for Full-Spectrum Simulation
For standards like ASTM D6695, ISO 11341, and AATCC TM169, a full-spectrum light source is non-negotiable. LIB's Xenon Arc Weathering Tester is expertly engineered to not only meet but exceed these requirements, providing unparalleled accuracy and control for your most critical material testing challenges.
|
Feature |
LIB Xenon Arc Test Chamber Specification |
Benefit for Your Testing |
|
Light Source |
4500W or 6500W Water-cooled Xenon Arc Lamp |
Most accurate full-spectrum sunlight replication, including UV, Vis, and IR. |
|
Irradiance Control |
Auto-tracking, programmable from 0.25 to 1.50 W/m²/nm at 340nm or 420nm |
Unmatched consistency and repeatability, ensuring compliance with strict standards. |
|
Temperature Range |
BPT (Black Panel Temp.): Ambient +10°C to 100°C |
Simulates a wide range of global climates, from cool to extreme heat. |
|
Humidity Range |
10% to 98% Relative Humidity (RH) |
Precisely controls moisture to simulate everything from arid deserts to tropical storms. |
|
Water Spray Cycle |
Programmable spray with independent timing |
Faithfully replicates rain and thermal shock effects on materials. |
|
Chamber Material |
SUS304 Stainless Steel interior |
Ensures corrosion resistance, long service life, and clean test conditions. |
Ideal for: Automotive parts, coatings, textiles, plastics, and roofing materials.

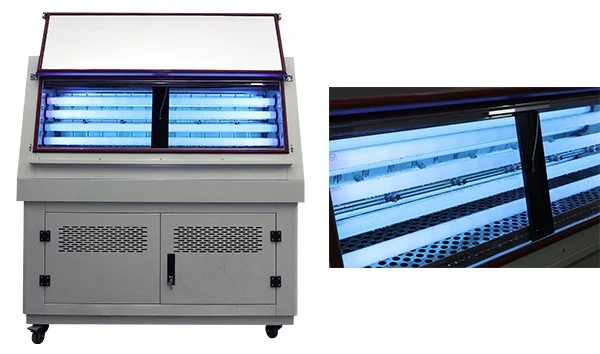

When to Choose a LIB UV Accelerated Weathering Tester for Focused UV Testing
Some materials degrade primarily due to the UV portion of sunlight. For these applications, or for standards focusing on UV resistance like those for roofing materials (ASTM D4811), LIB's UV Weathering Test Chamber offers a highly efficient and cost-effective solution.
|
Feature |
LIB UV Accelerated Weathering Tester Specification |
Benefit for Your Testing |
|
Light Source |
8 x 40W American ATLAS UVA-340 or UVB-313 lamps |
UVA-340 provides the best match for solar UV below 360 nm. UVB-313 for maximum, aggressive acceleration. |
|
UV Temperature |
Up to 70°C ± 3°C (can be set via controller) |
Controls the temperature during UV exposure to simulate high-heat sunlight conditions. |
|
Condensation Temp. |
Up to 50°C ± 3°C (100% Condensate Humidity) |
Simulates intense, moisture-saturated environments like dew and frost, crucial for coating adhesion failure. |
|
Test Cycles |
UV light & Condensation cycles programmable from 0 to 999 hours |
Ultimate flexibility to create custom test protocols for specific material stresses. |
|
Control System |
Digital LED programmer, easy to operate |
Simple setup and operation, reducing training time and potential for user error. |
Ideal for: Durable polymers, industrial coatings, wood finishes, and automotive components where UV resistance is a primary concern.
LIB: Your Partner in Quality and Compliance
Choosing a LIB Environmental Test Chamber means investing in a partnership built on quality, precision, and support. Our chambers are not just boxes; they are sophisticated instruments designed to deliver the data you need to build better, more durable products and accelerate your time to market.
Frequently Asked Questions (FAQ)
Q1: What is the warranty coverage and after-sales support like?
A: LIB stands behind its products with a standard 3-year warranty from the date of commissioning, covering parts and workmanship. Our global support network includes:
Remote technical assistance via phone and email.
Optional on-site service by experienced engineers for installation, maintenance, or repair.
Efficient supply of genuine spare parts to minimize downtime.
Q2: What optional features or customization are available?
A: We understand that testing needs can be unique. That's why we offer a range of customization options:
Enhanced Sensors: For even greater control and data accuracy.
Specialized Sample Holders: To accommodate unique sample sizes and shapes.
Advanced Software Upgrades: For improved data logging and remote monitoring capabilities.
Custom Sizes: Tailoring the chamber dimensions to fit your lab space.
Compliance with Specific Standards: Configuring the chamber to meet additional proprietary or international standards.
Q3: How do I decide between a Xenon Arc and a UV Test Chamber?
A: The choice depends on your materials and the standards you need to meet.
Choose a Xenon Arc Chamber if you need to simulate the full spectrum of sunlight, including rain cycles. This is the best for overall outdoor simulation for coatings, textiles, and plastics.
Choose a UV Chamber for a faster, more economical test focused specifically on UV degradation for materials like certain plastics, rubbers, and roof membranes. It's excellent for quality control and material comparison.
