Modern vehicles rely heavily on electronic components-sensors, ECUs, connectors-that must perform reliably under harsh conditions. From dusty deserts to high-pressure car washes, automotive electronics face environmental challenges that can compromise performance or cause failure.
Standards like ISO 20653 and ISO 16750-4 define dust-proof, water-proof, and thermal shock requirements for automotive electronics. LIB provides advanced testing solutions that simulate real-world conditions, helping manufacturers ensure compliance and durability.
Understanding the Standards
ISO 20653: Specifies IP protection levels for electrical components in vehicles. Covers:
Dust ingress (IP5X/IP6X)
Water ingress, including high-pressure spray (IP4K/IP9K)
ISO 16750-4: Focuses on environmental simulations such as:
Thermal shocks from sudden cold water splashes on hot components
Water and dust testing under repeatable lab conditions
These standards ensure components can survive real-world environments without failure.
Dust and Sand Testing: Protect Electronics from Particulate Damage

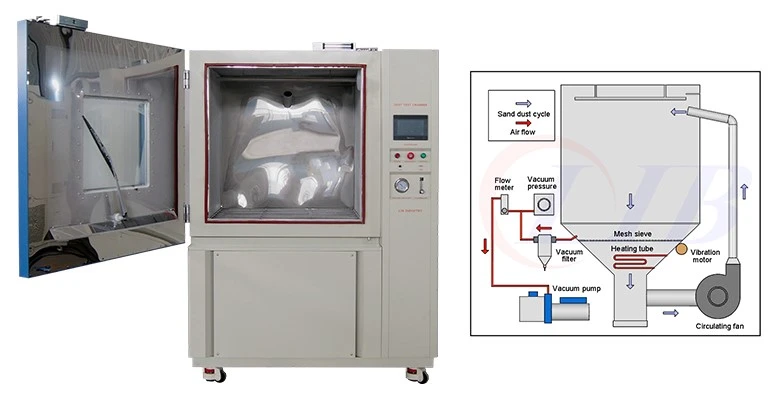

LIB's Sand and Dust Test Chambers replicate environments like deserts or off-road conditions. They verify that enclosures, connectors, and modules remain dust-proof.
Key Features:
Uniform Dust Circulation: Ensures repeatable testing for all samples
Adjustable Dust Density & Airflow: Compliant with ISO 20653 and ISO 16750-4
Observation Options: Transparent panels or integrated cameras for live monitoring
Sample Compatibility: Suitable for sensors, connectors, and modules
Benefit: Protects electronics from dust-induced failures while ensuring reliable operation.
Water Spray Testing: From Light Rain to High-Pressure Jets

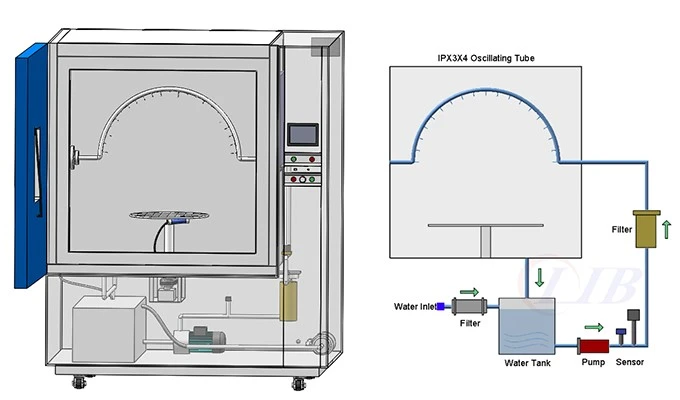

For water protection, LIB provides IPX3/IPX4 water spray chambers for light rain simulation and IPX9K high-pressure water spray chambers for extreme washing conditions. Both types offer programmable spray cycles, precise control over water flow, and temperature settings.
|
Feature |
IPX3/IPX4 Chamber |
IPX9K Chamber |
|
Spray Type |
Low-pressure rain/drip |
High-pressure hot water jet |
|
Coverage |
360° exposure |
Adjustable angles and full immersion-style |
|
Temperature |
Ambient |
Up to 80°C |
|
Automation |
Programmable cycles |
Precise control over pressure, flow, and duration |
Benefit: Confirms that electronic components meet IP4K/IP9K protection standards, ensuring long-term durability.
Thermal Shock & Cold Water Impact
ISO 16750-4 requires testing components under sudden thermal shocks.

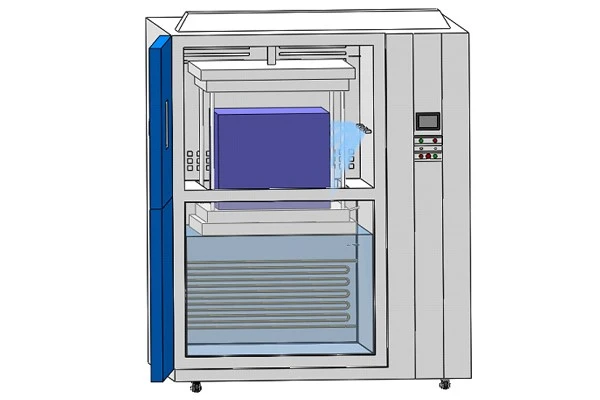

LIB provides custom immersion & spray solutions:
Adjustable Sample Basket: Securely holds components and lowers them into a cold water tank
Cold Water Tank: Simulates rapid immersion for thermal shock
Side-Mounted Spray Nozzles: Deliver directional splashes or high-pressure impact
Automated Control: Programmable timing, temperature, and spray sequences
Benefit: Ensures sensitive electronics survive sudden temperature changes and water impact.
Why LIB Stands Out
Versatile Testing Range: Dust, rain, high-pressure water, and thermal shock
Customizable Solutions: Chambers tailored for unusual sample sizes or special requirements
Standards Compliance: Fully meets ISO 20653, IP4K/IP9K, and ISO 16750-4
User-Friendly Operation: Color LCD controllers, Ethernet remote monitoring, and automated programs
Comprehensive After-Sales Policy: 3-year extended warranty and lifetime service. LIB will ensure the success of your tests.
Outcome: Manufacturers can confidently validate electronics, ensuring safety, reliability, and durability in harsh environments.
Curious how your automotive electronics measure up to ISO 20653 and ISO 16750-4? Leave a comment or get in touch with our engineers-LIB Industry® will guide you to the right testing solution for maximum reliability.
