In harsh conditions, electronic and mechanical products face constant risk of water damage from heavy rain, strong jets, and so on. Without proper waterproof testing, this can cause costly failures and safety risks. LIB's IP Waterproof Test Chambers deliver precise, reliable testing that meets strict standards like JSS 55555 and IEC 60529, ensuring your products perform reliably in tough environments.

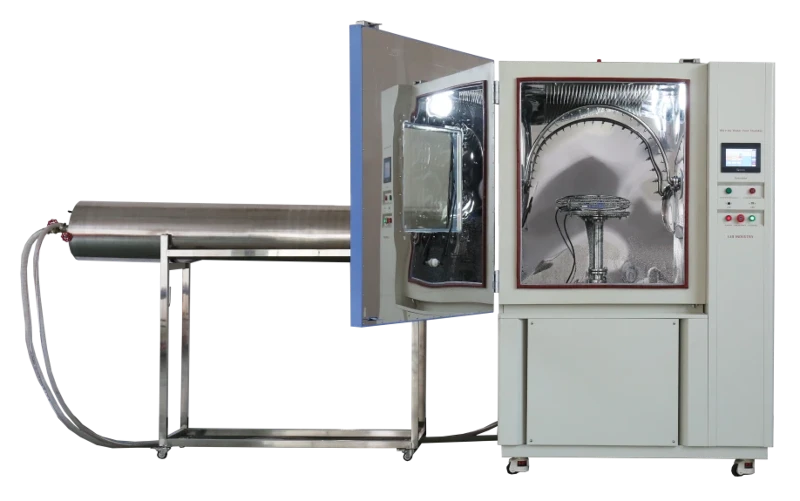

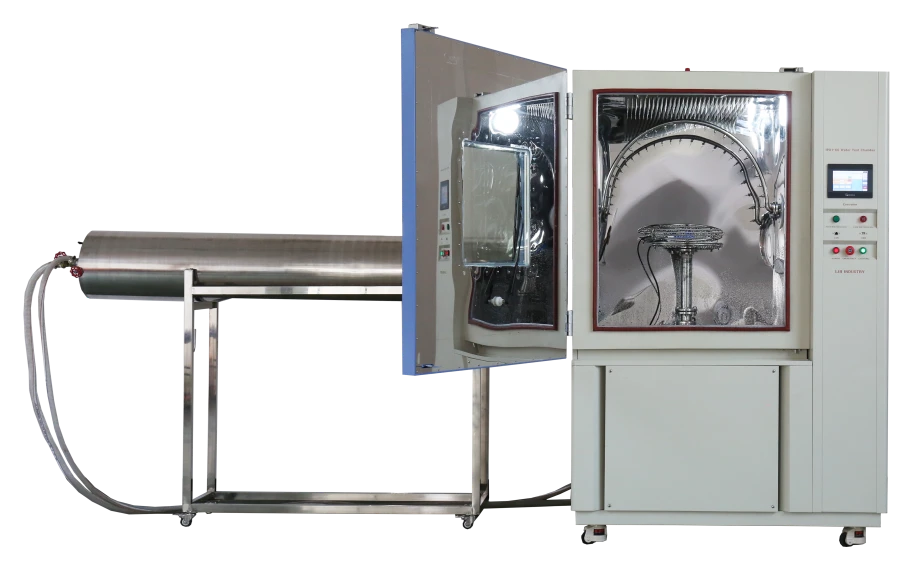

Combined Chamber(IPX1 X2 X3 X4 X5 X6)
【JSS 55555 Standard Analysis: Technical Requirements for Storm Water Testing】
"Rainstorm Simulation Test" of the JSS 55555 standard is primarily used to determine how well electronic and electrical equipment can resist rain. It is also widely adopted set strict testing rules that recreate extreme weather, such as heavy rain and strong wind-driven water, ensuring products can withstand harsh storm conditions. Key technical requirements of "Rainstorm Simulation Test" include:
Rainfall Intensity
Simulate up to 250 mm/hour to replicate downpours. Single nozzle flow rate is 450 ± 45 L/hour.
Maintain consistency within ±5 mm/hour over a 30‑minute cycle.
Spray Pattern & Coverage
Rotate the specimen continuously through 360° on multiple axes.
Ensure every surface is subjected to direct water impingement for the full test duration.
Water Pressure Control
Precisely adjust water pressure from gentle shower levels (50 kPa) to torrential spray (100 kPa).
Maintain pressure stability within ±2 kPa to ensure repeatable results.
|
Test Parameter |
Value |
|
Rainfall Intensity |
Up to 250 mm/hour. |
|
Spray Pattern & Coverage |
Rotate specimen 360° on multiple angles. |
|
Water Pressure Control |
Adjust pressure from 50 kPa to 100 kPa. |
Additionally, the standard demands detailed data logging of flow rates, pressures, temperatures, and environmental conditions. This level of scrutiny requires a test chamber that offers not only exceptional mechanical design but also sophisticated control and monitoring capabilities.
【Solution: How LIB's IP Waterproof Test Chamber Meets JSS 55555】
To satisfy the exacting demands of JSS 55555's storm water protocol, LIB has engineered its IP Waterproof Test Chamber around four core capabilities. Every part of the system, from water spray to chamber movement and data recording, has been carefully designed. This allows it to accurately recreate heavy rain, automatically filtered circulating water, and high-pressure spray in a controlled environment. Below, we detail how these innovations come together to guarantee compliance and peace of mind.
1. High‑Precision Simulated Rainfall System
Flow & Pressure Control: Electromagnetic flow meters and pressure gauges allow adjustment from 1 mL/min (IPX1) up to 100 L/min (IPX6), matching JSS 55555's variable intensity requirements.
Various Nozzle Array: Stainless‑steel drip holes (φ 0.4 mm) for IPX1–2, oscillating spray tubes for IPX3–4, and high‑pressure stainless‑steel nozzles for IPX5–6 deliver uniform, controlled water distribution across the specimen. Different designs meet the JSS 55555 requirements for nozzles.
2. Multi‑Angle Automatic Rotation Structure
Turntable Design: Adjustable height (350–500 mm) and customizable diameter accommodate diverse sample sizes. A 15° tilt disc enables precise IPX2 dripping tests, while full 360° rotation ensures comprehensive spray exposure. Meeting the JSS 55555 requirements for different test levels and full 360° rain exposure of samples.
Variable Speed: Standard rotation rate of 1 r/min meets both dripping and jetting protocols, ensuring each surface orientation is tested under dynamic conditions.
3. Programmable Test System
Intelligent Control: User‑defined programs allow sequencing of drip, spray, and immersion phases. Test settings like how hard it rains, the direction of the spray, and how long the test lasts can be saved and quickly reused with just one button press.
Data Logging: Integrated sensors record real‑time flow, pressure, and temperature data for full traceability and compliance documentation.
4. Reliability & Compliance
Material Construction: SUS304 stainless steel with pickled welds resists corrosion and simplifies maintenance. Built‑in lighting and a manual water‑wipe view window facilitate sample inspection without interrupting tests.
Standards Coverage: The system fully supports tests from IPX1 to IPX9K, including hot, high-pressure water sprayed at angles of 30°, 60°, and 90°. This makes sure it meets all the requirements of the JSS 55555 storm water tests and the IEC 60529 standards for water protection levels from IPX1 to IPX6.
Ready to Prove Your Product's Waterproof Performance?
See more how details of our IP Waterproof Test Chambers meet strict standards like JSS 55555 and IEC 60529. Get a clear overview of:
Waterproof testing procedures (IPX1–IPX9K)
Equipment specifications and setup
Real-world applications in military, automotive, and electronics
The information you need, clearly explained in this one simple guide.
【LIB's Enhanced Services for IP Waterproof Testing】
Customized Testing Solutions:
Tailor spray nozzles and programs to any product shape, size, or special standards like IEC 60529, ISO 20653, IEC 60598, and so on.
Global After‑Sales Support:
Enjoy a 3‑year warranty, lifetime maintenance, and free chamber replacement if issues cannot be resolved. Our 24‑hour English‑speaking technical team guarantees rapid responses.
Spare Parts Availability:
Key components stocked worldwide, with delivery in 7–15 days and on‑site installation guidance to minimize your downtime.
Choose LIB's IP waterproof test chamber to validate waterproof performance with precision and peace of mind! Contact us now for a tailored solution!
