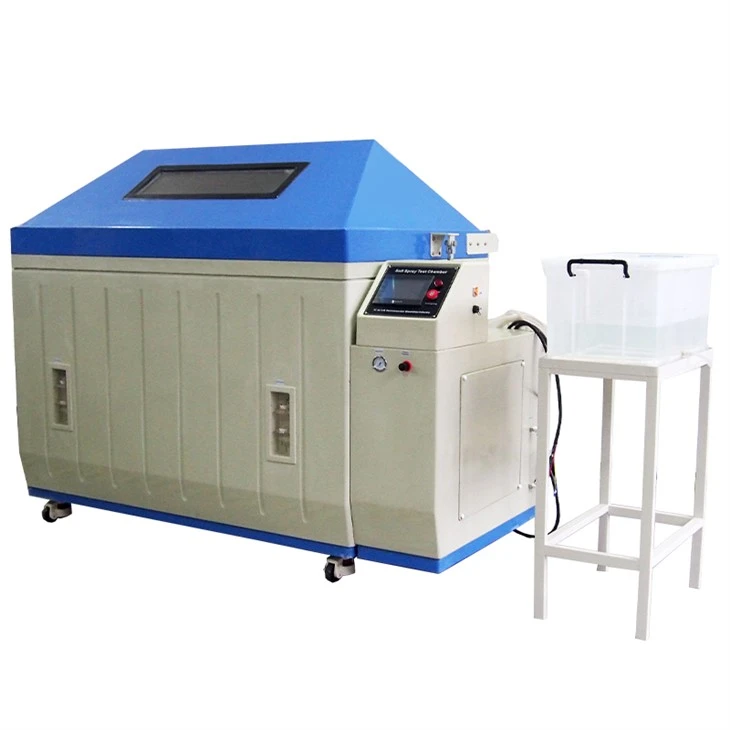

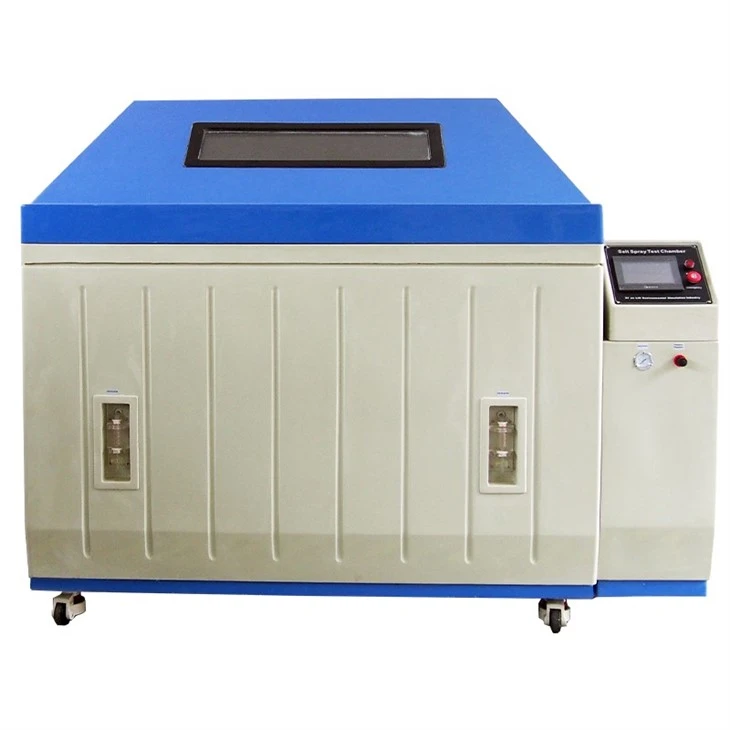

Salt Mist Testing Equipment For Fastener Testing

The salt mist testing equipment offers internal volume choices from 110L to 1,800L, ensuring batch testing consistency, while fog uniformity is kept <±2% deviation to prevent "uneven failure judgment." Cycle modes (NSS, AASS, CASS) simulate years of outdoor aging in mere weeks, supporting duration up to 1,500 hours. When fastener safety equals structural safety-controlled salt mist testing becomes non-negotiable. Compliant with ASTM B117 and ISO 9227 standards, this equipment combines precision, efficiency, and durability, making it ideal for automotive, aerospace, and industrial fastener testing. Maximize your product reliability and accelerate testing-contact LIB industry today for a tailored solution.

Fasteners are key components in automotive, aerospace, electronics, and industrial machinery. Their failure due to corrosion can compromise mechanical integrity and safety. Salt mist testing identifies potential issues such as:

 Surface corrosion and coating degradation – Zinc plating, nickel coating, or other surface treatments can fail under saline exposure.

 Material deterioration – Stainless steel or alloy steel fasteners may develop pitting, crevice corrosion, or structural weakness.

 Thread and joint integrity loss – Ensures that bolts and screws maintain torque and clamping force under corrosive conditions.

 Compliance verification – Helps meet ASTM, ISO, or JIS corrosion resistance standards for fasteners.

By testing fasteners in a controlled salt mist environment, manufacturers can optimize coatings, improve material selection, and prevent premature failures in critical applications.





Key Advantages of Salt Mist Testing Equipment for Fastener Testing





Precise Salt Fog Uniformity
Engineered with micro-orifice atomizing nozzles and equal-pressure pipelines to ensure consistent corrosion rates across the workspace-critical for batch comparison of 100–500 fasteners.

Triple Salt Spray Modes in One System (NSS / AASS / CASS)

• NSS: 35 ± 2 °C │ 5% NaCl
• AASS: 50 ± 2°C │ Acidified
• CASS: 50 ± 2°C │ Copper-accelerated

Compatible with stainless steel, zinc-plated, Cr3+, Geomet, and Dacromet-coated fasteners.

One-Piece Fiberglass-Reinforced Plastic (FRP) Construction
The salt mist testing equipment body is made from corrosion-proof, single-mold FRP material-no internal seams, no metal exposure, superior thermal stability, and extended structural lifespan even during continuous acidified testing modes.

Long-Duration Testing 24–1500 Hours
Industrial-grade dehumidifying module and auto water refill allow 7–60 days of uninterrupted operation.

Low Leakage Safety Design
Dual-seal structure with anti-backflow air channel protects lab equipment and operators in long-term use.

Large-Capacity Space with Heavy Load
Available in 110L / 780L / 1800L and more standard volumes for heavy bolts, anchors, or bulk sample trays.

Full Parameter Traceability (Temperature, pH, Deposition 1–2 mL/80cm²·h)
Downloadable data supports PPAP documentation, aerospace quality records, and OEM audits.







What Are the Technical Specifications You Need to Know?



Model	S-150	S-250	S-750	S-010
Internal Dimension (mm)	590*470*400	1000*640*500	1100*750*500	1000*1300*600
Overall Dimension (mm)	1460*760*1140	1850*960*1350	1950*1030*1350	2000*1300*1600
Interior Volume	110L	320L	410L	780L
Temperature Range	Ambient ～ +60 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	95% ~ 98% RH
Salt Fog Deposition	1～2ml / 80cm2 · h
Spray Type	Continuous / Periodic
Salt Fog Collected	Fog collector and fog measure cylinder
Air Preheating	Saturated air barrel
Spraying System	Atomizer tower and Spray nozzles
Controller	PID controller
Material	Glass fiber reinforced plastics
Standard Configuration	6 round bars and 5 V-shaped grooves







Design & Features of Salt Mist Testing Equipment for Fastener Testing

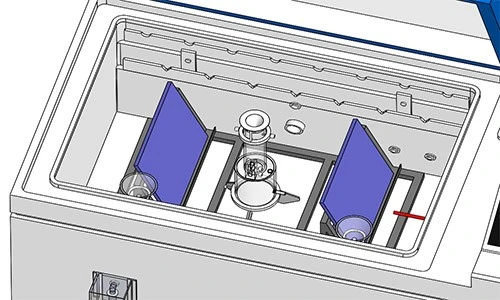

Salt Mist Testing Workspace

Material: One-piece molded fiberglass-reinforced plastic (FRP) for corrosion resistance and seamless construction.

Dimensions / Volume: 110L,320L,410L,780L, 1280L,1800L. Custom sizes available.

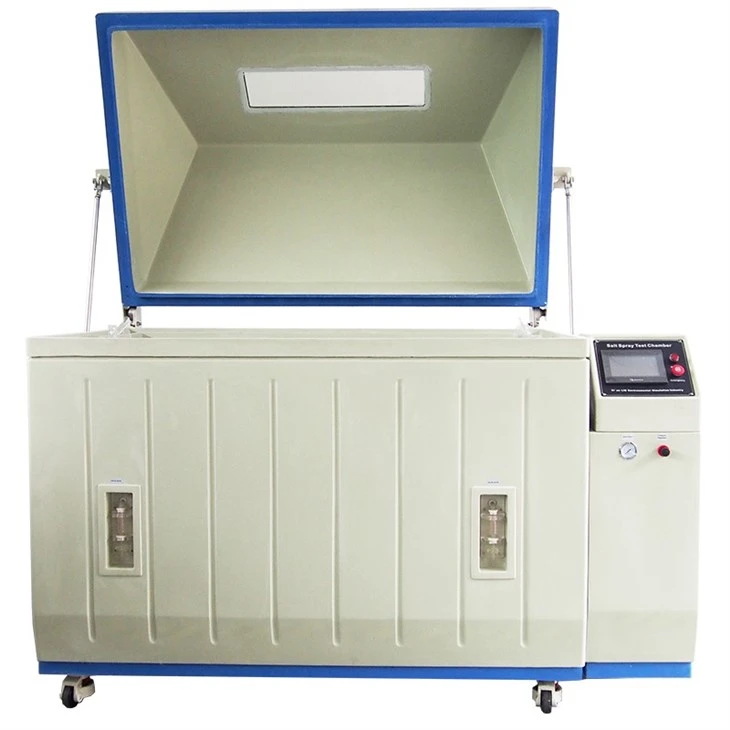

The recessed groove lid design with tempered glass viewing window prevents the condensed salt fog from falling onto the test pieces.Optional Pneumatic Lid.

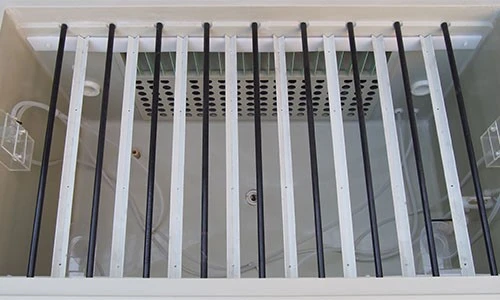

Sample Racks

Standard Rack: Combines round bar holders + V-groove channels, specifically designed for 2D flat specimens like thin plates, washers, and test coupons.

Custom Racks: Supports irregular fasteners, assembled bolt–washer sets, anchor bolts, or multi-layer trays.

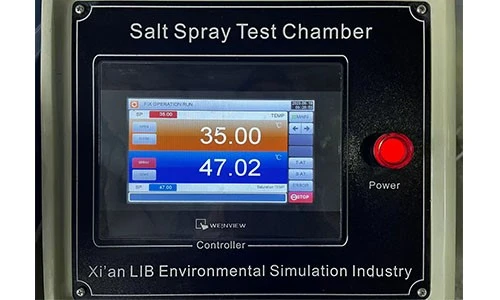

Intelligent Controller

Interface: color touchscreen, multi-language support.

Control: PID fuzzy auto-tuning, programmable cycles for NSS, AASS, CASS.

Data Logging: Records temperature, spray duration, pH (if applicable), deposition rates; ≥1 year storage; USB export; optional Ethernet / Modbus TCP.

Safety Protection





Salt Spray Collector

Sampling Area: Standard 80 cm², ensuring accurate sedimentation measurements.

Deposition Rate: Adjustable 1–2.5 mL / 80 cm²·h, verifiable and calibrated.

Mounting: Fixed for stability and repeatability.

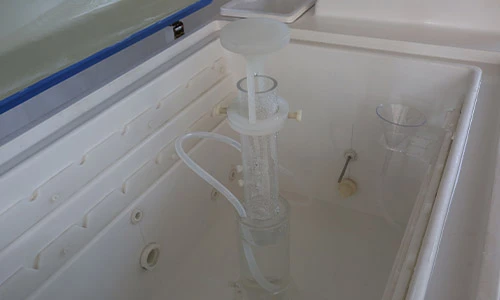

Spray / Atomization System

Nozzle: Quartz nozzles are easy to clean and resistant to high temperatures, corrosion, and clogging.

Spray Tower: adjustable in height and spray volume.

Flow Rate: 0.5–5.0 L/h; maintains deposition rate 1–2 mL / 80 cm²·h.

Pressure: 0.1 MPa constant-pressure design; uniform fog < ±2% deviation.

Solution: Supports 5% NaCl for NSS; optional acidification for AASS/CASS.

















Discover More About Salt Mist Testing Equipment for Fastener Testing







Can I get ISO 17025 calibration for the salt mist testing equipment?

Yes, calibration reports are available for temperature, spray rate, and uniformity.

Can the spray rate or chamber size be customized?

Yes, LIB industry offers custom chamber sizes, shelves, and spray rate adjustments for specific fastener testing needs.

Why choose LIB Industry?

Over 16 years of experience in high-quality environmental test equipment including temperature humidity chambers,salt spray corrosion chambers, IP dust and water ingress chamber,noxious gas chambers, and UV/xenon weathering chambers with global service support,one-stop service.



Ensure Fastener Salt Mist Corrosion Resistance Today



Protect your fasteners from corrosion failure and ensure compliance with international standards. Contact LIB Industry today sales@libtestchamber.com to customize your Salt Mist Testing Equipment for Fastener Testing. Receive a quotation and preliminary test plan within 1–3 hours.

3-year Warranty| Custom Configurations | Lifetime Support | ISO 17025 Calibration Available
