The LIB ozone resistance test chamber simulates a high-concentration ozone environment (with adjustable concentration), and the temperature and humidity are controllable simultaneously. It strictly tests for material degradation, cracking, hardening, discoloration or performance changes caused by ozone as a strong oxidant in accordance with international standards (ISO 1431, ASTM D1149), ensuring the durability of products in outdoor or industrial ozone exposure scenarios.
Key features

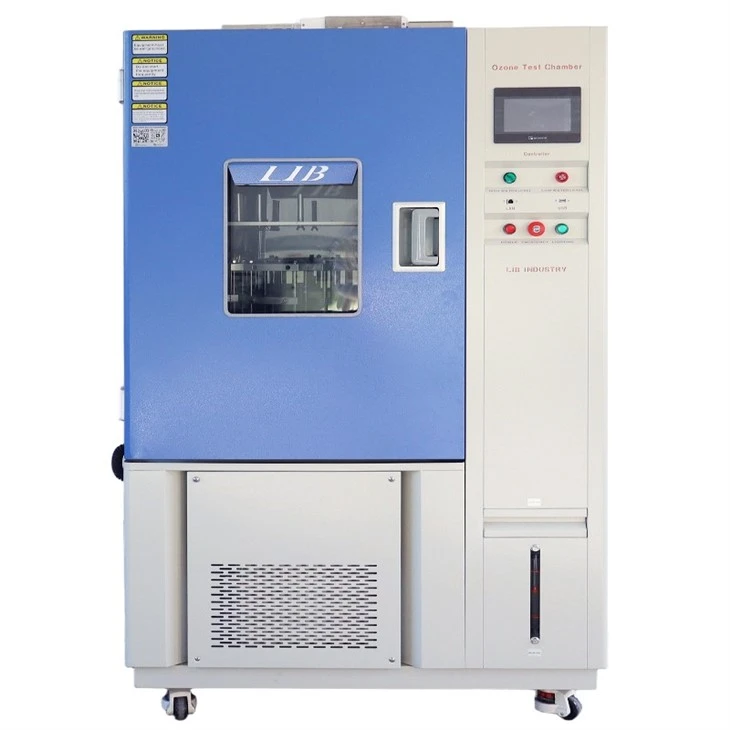

Ozone Resistance Test Chamber
The corona discharge system operates silently and releases high-purity ozone.
The interior is made of SUS304, which is corrosion-resistant and easy to clean.
Conduct static (fixed sample) and dynamic (tensile stress) ozone resistance tests to comprehensively evaluate the material.
Temperature: 0-100℃ (±0.5℃) Humidity: 30% to 98% RH (±2.5% RH).
Precise ozone concentration control, ozone sensor, high precision and fast response.
The air circulation system achieves uniform control of temperature, humidity and ozone concentration.
Large-sized visual window with LED lighting,convenient to observe the sample change process.
parameter list

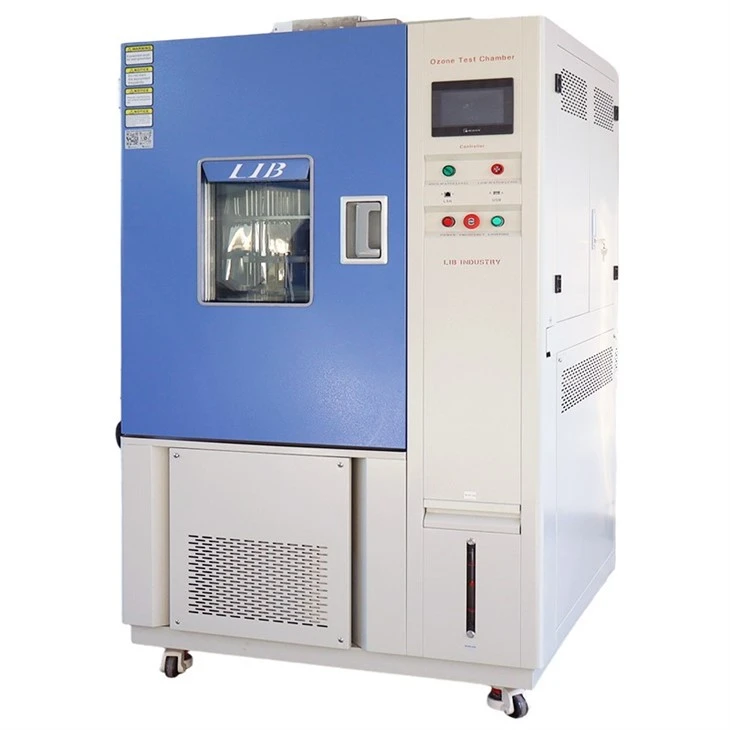

Ozone Resistance Test Chamber
|
Model |
OC-250 |
OC-500 |
OC-800 | OC-1000 |
|
Internal Dimension (mm) |
600*600*700 |
700*800*900 |
800*1000*1000 |
1000*1000*1000 |
|
Overall Dimension (mm) |
960*1150*1860 |
1200*1340*2020 |
1300*1540*2120 |
1500*1540*2140 |
|
Interior Volume |
250L |
500L |
800L | 1000L |
|
Temperature Range |
-120℃ ～ +150 ℃ |
|||
|
Temperature Fluctuation |
± 0.5 ℃ |
|||
|
Temperature Deviation |
± 2.0 ℃ |
|||
|
Cooling Rate |
Ambient ~ 0℃ within 20 min |
|||
Humidity Range |
30% ~ 98% RH |
|||
| Humidity Deviation | ± 2.5% RH | |||
Ozone Concentration |
1～1000PPHM |
|||
Sample Holder Rotate Speed |
0~10 r/min |
|||
Airflow Rate |
0 ~ 60L/min |
|||
Clamps Tensile Stretch |
5%～35% |
|||
Cooling system |
Mechanical compression refrigeration system;French TECUMSEH compressor |
|||
| Controller |
Programmable color LCD touch screen controller. Ethernet connection, PC Link |
|||
Water supply system |
Automatic water supply,Water purification system |
|||
Temperature Sensor |
PTR Platinum Resistance PT100Ω/MV A-class |
|||
Gas Sensor |
Ozone gas sensor |
|||
Ozone Generator |
Silent discharge type ozone generator |
|||
Air Circulation |
Centrifugal wind fan |
|||
Sample Holder |
Static + dynamic combined sample holder |
|||
Interior Material |
SUS304 stainless steel |
|||
| Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |||
Product details

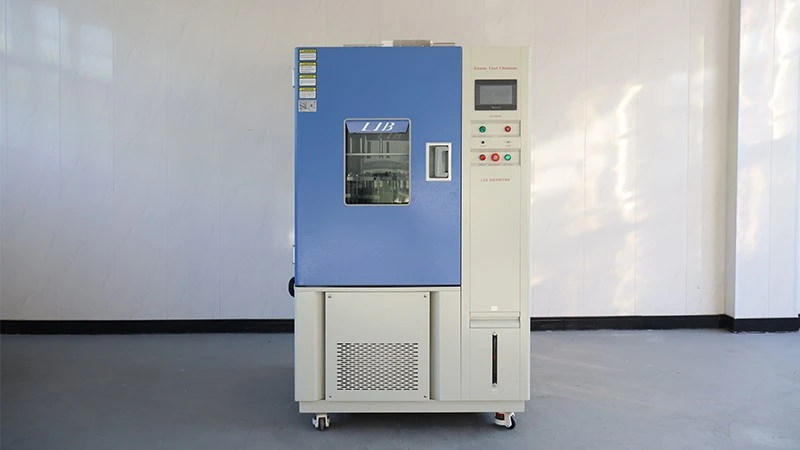

Ozone Resistance Test Chamber

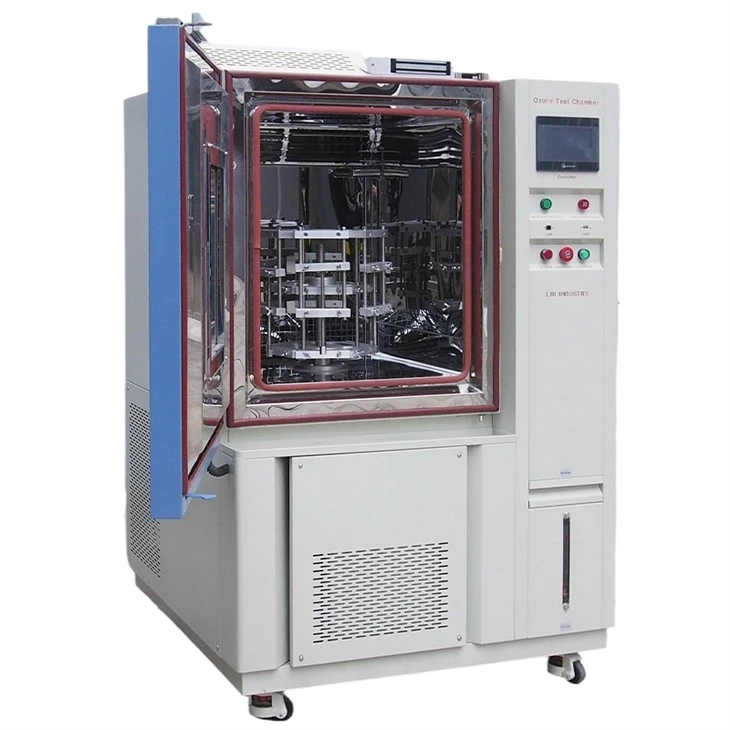

Workroom
The inner chamber is made of SUS304 stainless steel, offering corrosion resistance and durability in ozone-rich environments.
The convex design of the workroom door + double hard silicone for sealing strip + electromagnetic lock to ensure no ozone leakage and misoperation.

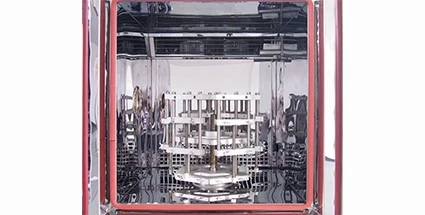

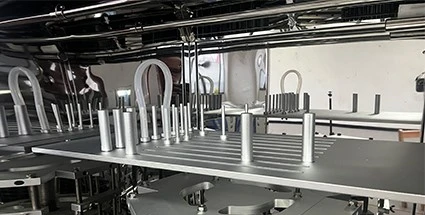

Customized Sample Fixture
Rotate the sample holder to simulate dynamic ozone exposure.Standardized stress-strain aging tests on tensile/flat samples with adjustable clamping force. Conforms to ISO 1431, ASTM D1149 static/dynamic test standards.

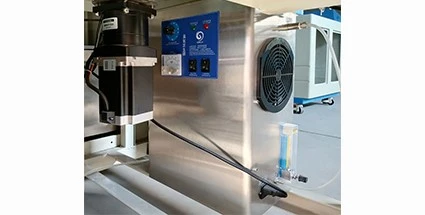

Ozone Generation and Disposal
The ozone module adopts corona discharge tubes and is equipped with a high-purity oxygen input interface to enhance the efficiency of ozone generation.
The module design is convenient for quick replacement and maintenance in the later stage and does not interfere with the operation of the entire machine.

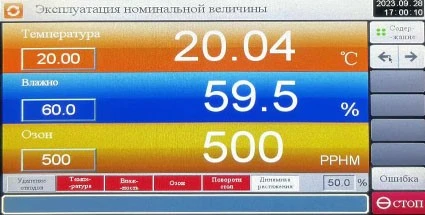

Controller
Color touch screen with multiple languages and real-time data display. LAN/USB remote monitoring, data recording (Excel export), ozone concentration, temperature, time curve drawing. Preset 100 test recipes, support for custom parameters and step-by-step loop editing.
Contact LIB for a tailor-made ozone resistance test chamber, detailed technical specifications and a competitive quote. LIB supports one-stop service from equipment selection to after-sales maintenance to ensure that your material testing complies with global standards.
