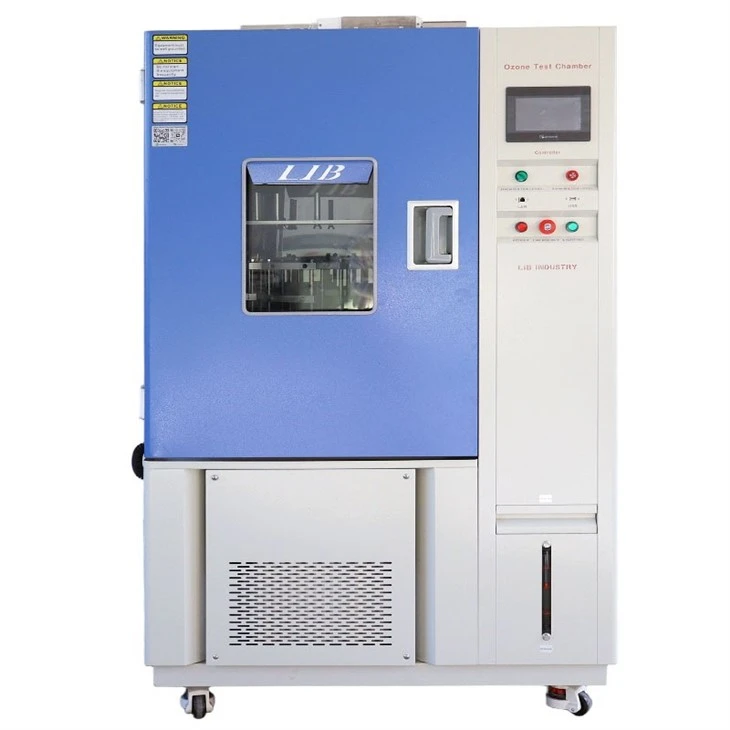

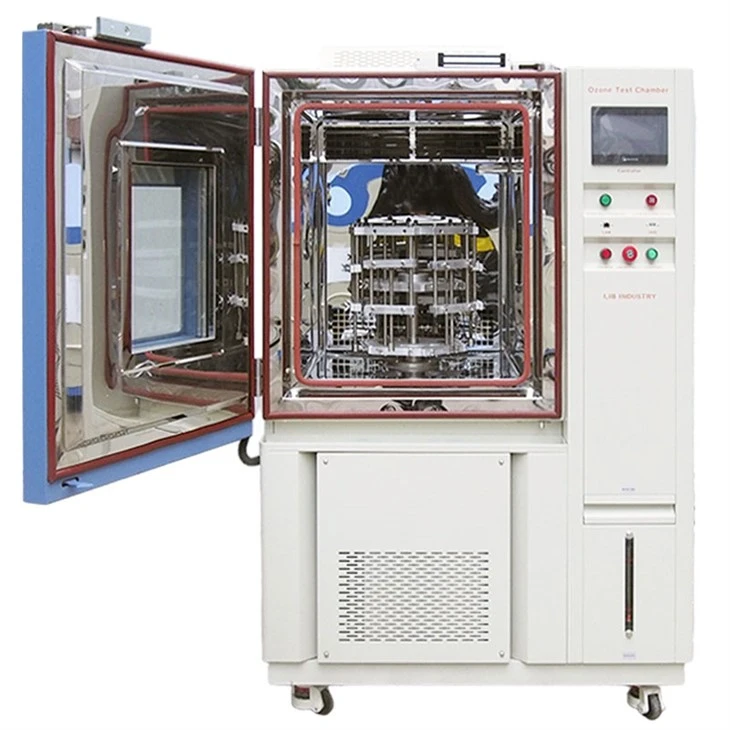

The ozone climatic chamber simulates ozone environment for aging tests of materials, especially rubber. It reproduces the accelerated aging effect of ozone on samples by controlling the ozone concentration, temperature and humidity, and is mainly used to test the ozone resistance and service life of materials such as rubber, plastic, cables and seals.

Key features

Ozone Climatic Chamber

Module title

Ozone - temperature - humidity - spray composite aging test, suitable for alternating working conditions in multiple industries

Ultra-low ozone leakage rate, optimized sealing performance of the chamber, ensuring personnel safety

Multi-industry standard certifications include ISO 1431-1, ASTM D1149 (Ozone aging resistance of rubber materials), and IEC 60811, which can be used for third-party testing and certification tests

Sample fixture support: static stretching, winding, dynamic stretching

Made of all stainless steel SUS304, it is resistant to ozone and corrosion

PID closed-loop control system and concentration compensation ensure stable ozone concentration

Real-time monitoring of ozone concentration, linked with ozone generators, with a concentration detection range of 0 to 1000 pph

parameter list

Ozone Climatic Chamber

Model	OC-250	OC-500	OC-800	OC-1000
Internal Dimension (mm)	600600700	700800900	80010001000	100010001000
Overall Dimension (mm)	96011501860	120013402020	130015402120	150015402140
Interior Volume	250L	500L	800L	1000L
Temperature Range	-120℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Cooling Rate	Ambient ~ 0℃ within 20 min
Humidity Range	30% ~ 98% RH
Humidity Deviation	± 2.5% RH
Ozone Concentration	1～1000PPHM
Sample Holder Rotate Speed	0~10 r/min
Airflow Rate	0 ~ 60L/min
Clamps Tensile Stretch	5%～35%
Cooling system	Mechanical compression refrigeration system;French TECUMSEH compressor
Controller	Programmable color LCD touch screen controller. Ethernet connection, PC Link
Water supply system	Automatic water supply,Water purification system
Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class
Gas Sensor	Ozone gas sensor
Ozone Generator	Silent discharge type ozone generator
Air Circulation	Centrifugal wind fan
Sample Holder	Static + dynamic combined sample holder
Interior Material	SUS304 stainless steel
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing

Product details

Ozone Climatic Chamber

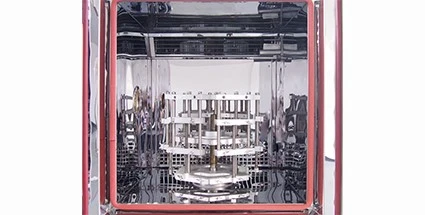

Sample Holder

The holder supports 360° rotation at a speed of 1-10r/min, promoting uniform exposure and accelerating the aging process.

Tensile clamps can be accommodated to stretch samples from 5% to 80% to meet a variety of material testing standards and needs.

ozone climatic chamber7

Ozone Gas Sensor

Supports ozone detection in the range of 1–1000 pphm, meeting the requirements of various international testing standards.

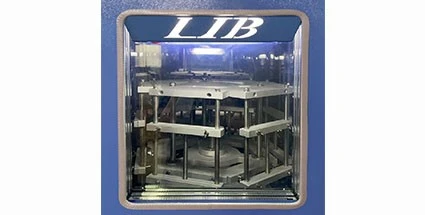

View Window

The window is equipped with a conductive film to prevent frosting caused by temperature and humidity changes, ensuring clear visibility.

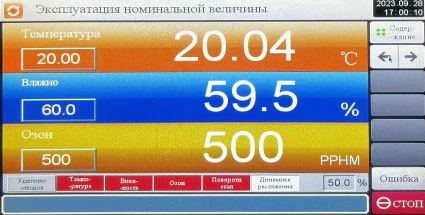

Controller

The multi-language interface enhances usability for operators from different regions and supports flexible language switching.

The controller panel allows remote access and monitoring via Ethernet, enabling efficient testing and data management.

ozone climatic chamber4

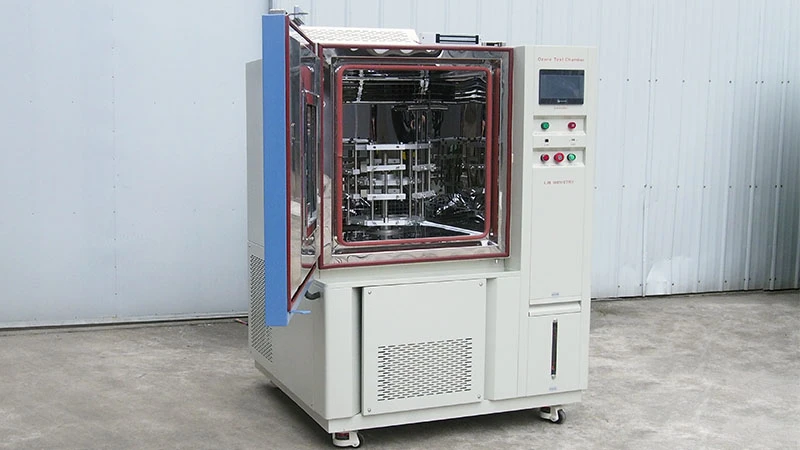

The LIB ozone climate chamber can also be used for ozone concentration expansion and customization of various sample racks, etc. Consult LIB for more detailed information on customized solutions and test chambers.
