LIB mixed gas corrosion test chamber can integrate a variety of corrosive gases (such as SO₂, H₂S, NO₂, Cl₂, etc.) and precise temperature and humidity control, simulate complex atmospheric corrosion environment, and efficiently evaluate the corrosion resistance of materials, coatings, electronic components and industrial products under mixed gas exposure. The mixed gas corrosion test chamber complies with ISO 6988, ASTM G87 and other international standards.
Key features
Mixed Gas Corrosion Chamber
SO₂ concentration 25±5ppb (adjustable), guarantees different concentrations of accelerated corrosion tests needs
Temperature 15~60°C, humidity 30~95%RH, supports dry-wet cycle mode
SUS316 stainless steel, suitable for long-term high concentration SO₂ environment
Air circulation system ensures uniformity of SO2 concentration
Independent gas leak sensor (detection accuracy 0.1ppm), emergency stop button
NAOH treatment device for SO2 residual gas after test
Built-in water tank, automatic water supply + water level warning
Volume optional: standard 100/225/500/800/1000...L, custom larger space
Complete certification: CE, RoHS, ISO 9001 certification
parameter list
Mixed Gas Corrosion Chamber
|
Model |
GCM-100 |
GCM-225 | GCM-500 | |
|
Internal Dimension (mm) |
400*500*500 |
500*600*750 |
700*800*900 | |
|
Overall Dimension (mm) |
1010*1050*1620 |
1110*1150*1860 |
1330*1350*2010 | |
|
Interior Volume |
100L |
225L | 500L | |
|
Temperature Range |
15 ℃ ～ 80 ℃ |
|||
|
Temperature Fluctuation |
± 0.5 ℃ |
|||
|
Temperature Deviation |
± 2.0 ℃ |
|||
|
Cooling system |
Mechanical compression refrigeration system |
|||
Humidity Range |
30% ~ 98% RH |
|||
| Humidity Deviation | ± 2.5% RH | |||
SO2 Concentration |
100 ~500 ppb± 20 ppb (Adjustable) |
|||
H2S Concentration |
10 ~100 ppb ± 20 ppb (Adjustable) |
|||
NO2 Concentration |
200 ppb ± 20 ppb (Adjustable) |
|||
| Cl2 Concentration | 10 ~20 ppb ±5 ppb (Adjustable) | |||
Air Change Rate |
3~10times /h |
|||
Water Supply System |
Water purification system, Automatic water supply |
|||
Controller |
Programmable color LCD touch screen controller Ethernet connection, PC Link |
|||
Gas Sensor |
H2S/NO2/CL2/SO2 gas sensor |
|||
Door Lock |
Electromagnetic lock |
|||
Gas Exhaust Device |
Exhaust Unit |
|||
Safety Device |
Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection |
|||
| Interior material | SUS316 stainless steel +Glass fiber reinforced plastics | |||
Product details
Mixed Gas Corrosion Chamber

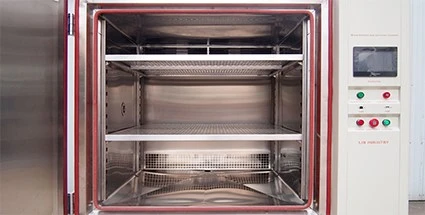

Workroom
The inner chamber is constructed from 316 stainless steel, providing excellent resistance to corrosion caused by multiple gases.
The height of sample shelves is adjustable and can be removed directly to facilitate the various sizes of test samples.

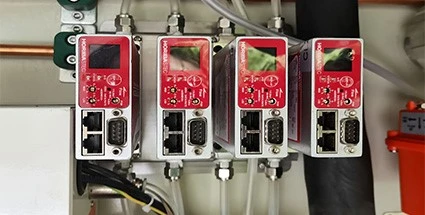

Four Mixed Noxious Gas Flowmeters
High-precision mass flow controllers regulate the input of each noxious gas with fine control and excellent repeatability.

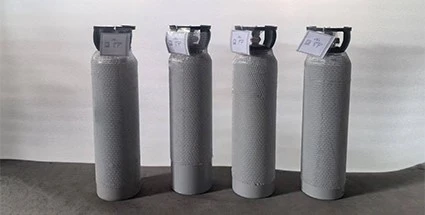

Four Mixed Noxious Gas Cylinders
High-purity gas cylinders for connecting various corrosive gases. The gas mixing system can precisely control the proportion of various gases according to the test requirements.

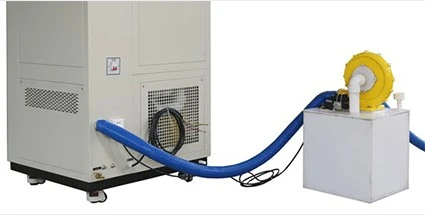

Noxious Gas Exhaust Device
Ensures operator safety and environmental protection by neutralizing noxious emissions before release.
LIB mixed gas corrosion chamber has a number of safety protection, while supporting personalized configuration, suitable for electronics, automotive, aerospace, coatings and other industries. Contact LIB for configuration solutions, control system upgrades, and detailed technical specifications.
