Environmental simulation has become an essential part of modern product development and quality assurance. A temperature humidity environmental chamber enables manufacturers to reproduce extreme climatic conditions-whether freezing cold, tropical heat, or high-humidity environments-within a controlled laboratory space. Choosing the right chamber, however, requires careful consideration.
Below are the five most important factors to keep in mind when buying a temperature and humidity test chamber, with examples from LIB's widely used TH series.

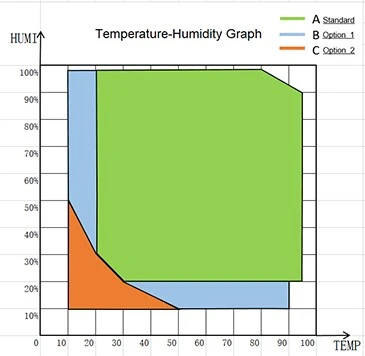

1. Temperature and Humidity Range & Stability
The first specification to check is the performance range of the chamber. Reliable testing depends on both wide coverage and precise stability.
LIB's TH series offers temperature ranges from –20 °C / –40 °C / –70 °C up to +150 °C.
Humidity can be controlled from 20% to 98% RH, with temperature fluctuation within ±0.5 °C and deviation within ±2 °C.
Humidity deviation is typically ±2.5% RH.
Heating rate: up to 3 °C/min; Cooling rate: around 1 °C/min.
This wide operating window makes the chamber suitable for electronics, automotive components, aerospace parts, and materials testing under extreme environments.
2. Chamber Size and Type Selection
The internal volume of the chamber should match both the size of the test specimen and the number of samples per cycle.

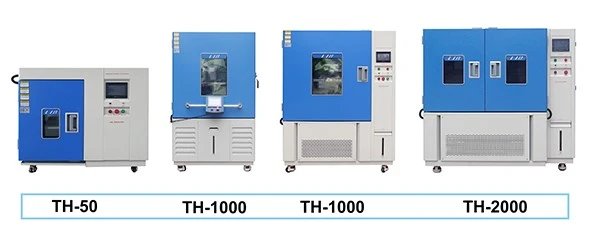

LIB provides multiple sizes, from 50L to 1000 L (models TH-50,TH-80,TH-100, TH-225, TH-500, TH-800, TH-1000). For larger projects, walk-in chambers can be customized.
Benchtop models: Ideal for small labs or R&D use.
Reach-in chambers: Suitable for medium-sized components and batch testing.
Walk-in chambers: Best for large parts, racks of samples, or integrated systems.
3. Control System and User Experience
A powerful control system ensures both precision and ease of use.

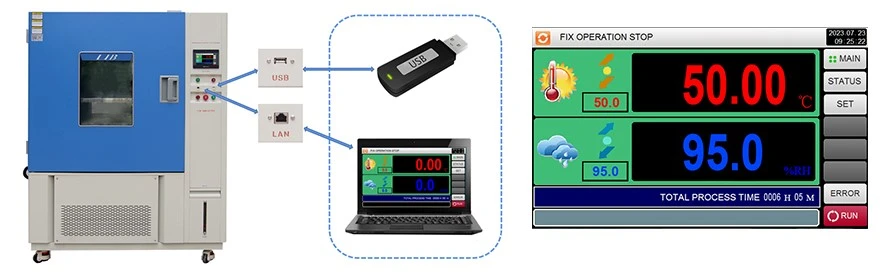

LIB chambers are equipped with a color LCD touchscreen controller, featuring multi-language options.
Remote access is possible via PC link or LAN, enabling monitoring and adjustments outside the lab.
Users can program complex test profiles, including temperature/humidity ramps, cycles, and long-term stability tests.
High-accuracy sensors (temperature resolution up to 0.001 °C) ensure reliable data and repeatable test conditions.

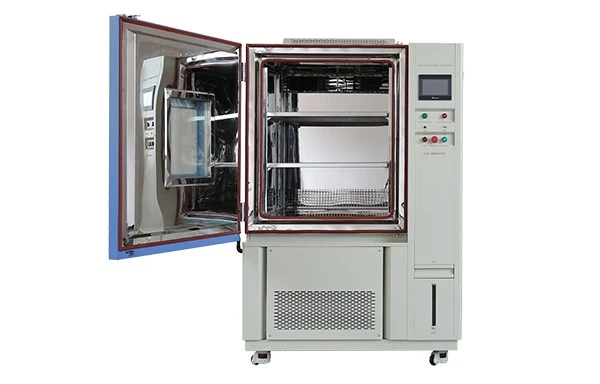

4. Construction, Humidification System & Safety
Build quality directly affects long-term durability and maintenance.
Interior: SUS304 stainless steel, resistant to corrosion and easy to clean.
Exterior: Powder-coated steel with rust protection.
Humidification: Mirror stainless steel steam humidifier with external isolation design, automatic water refill, and water purification system.
Safety features: Over-temperature protection, compressor overload protection, water shortage alarms, leak protection, and dry-run prevention.
These features guarantee safe operation even under demanding test cycles.

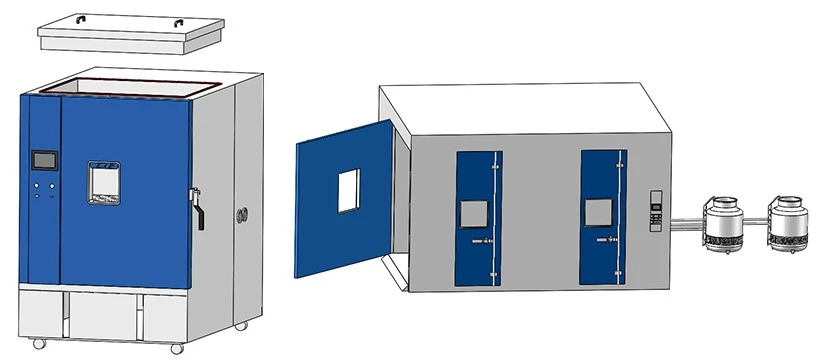

5. Customization and Industry Adaptation
Not all test requirements can be solved with standard models. That's where customization comes in.
LIB offers modifications in dimensions, temperature/humidity ranges, or heating/cooling rates.
Optional features include explosion-proof designs, spray nozzles, viewing windows, cable ports, and custom fixtures.
The chambers comply with international test standards such as IEC, MIL-STD, ASTM, and ISO, ensuring compatibility with regulatory requirements.
Industries served include electronics, automotive, aerospace, pharmaceuticals, chemicals, food packaging, building materials, and batteries.
✅ Quick Reference Guide
|
Testing Requirement |
Recommended LIB Configuration |
|
Small R&D samples |
TH-50 /TH-80 /TH-100 / TH-225 (benchtop or reach-in) |
|
Medium batch testing |
TH-500 / TH-800 |
|
Large parts or multi-sample testing |
TH-1000 or custom walk-in chamber |
|
Extreme precision or wide range |
–70/-40/-20 °C to +150 °C version with advanced sensors |
|
Special environments |
Custom explosion-proof, spray, or multi-port models |
Why Choose LIB Temperature and Humidity Chambers?
Full temperature-humidity range: –70 °C to +150 °C, 20%–98% RH.
High precision: ±0.5 °C fluctuation, ±2 °C deviation, ±2.5% RH humidity control.
Standard + custom solutions: Wide catalog plus tailored designs for specific industries.
Safety first: Comprehensive protection systems and automatic water management.
Global applications: Trusted in electronics, automotive, aerospace, medical, energy storage, and more.
Conclusion
When buying a temperature and humidity test chamber, five factors stand out:
Range and stability
Chamber size and type
Control system and ease of use
Construction, humidification, and safety
Customization and industry fit
LIB's TH series chambers combine these elements into a proven, versatile platform. Whether you're testing microelectronics, automotive parts, or next-generation batteries, LIB delivers a chamber that ensures accurate, repeatable, and globally compliant results.
Ready to select your ideal chamber? Explore LIB's Temperature and Humidity Test Chambers and contact our technical team for tailored solutions.
