Automotive components must remain reliable in the real world - from long, humid storms to wind-blown dust in harsh climates. LIB provides turnkey and customizable test systems that align with the intent of JIS D0203 (moisture, rain and spray) and the particulate exposure scenarios in JIS D0207 (floating dust, blowing sand, dust fall). This page explains each standard, maps LIB test equipment to required procedures.
Standards Overview - What You Need to Know
JIS D0203 (Moisture / Rain / Spray) |
JIS D0207 (Dust / Sand Exposure) |
|
This standard defines repeatable test methods to verify water resistance of automotive parts. Tests vary from damp-heat and light rain simulations to high-flow spray or jet conditions used to check seals, connectors, housings and in-service functionality. |
JIS D0207 covers particulate exposure tests, including
|
|
Key test inputs include nozzle type/arrangement, flow rate or pressure, exposure angle and duration, and whether the DUT is powered during exposure. |
Important parameters are particle size/distribution, delivered dust mass or concentration, airflow velocity and uniformity, and post-test acceptance criteria (ingress, functionality, wear). |
|
|
|
LIB Match for JIS D0203 - Direct, Production-Ready Solution

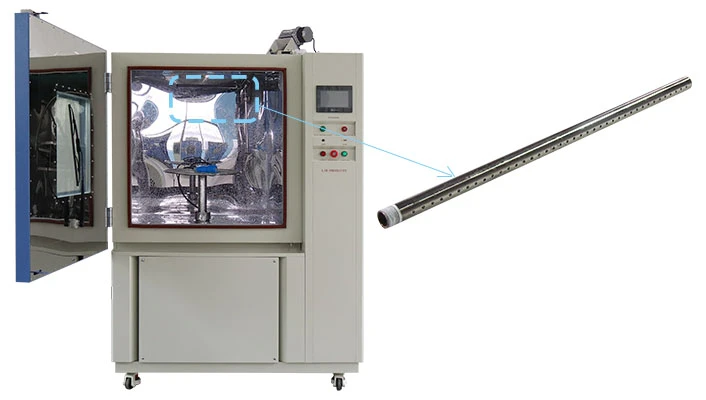

Product fit: LIB's JIS D0203 Rain Test Chamber is engineered to run rain and spray programs that mirror typical R- and S-class test procedures. It's a ready solution for validation, development and production test plans that reference JIS D0203.
Why it's appropriate:
- Programmable multi-nozzle arrays reproduce rain and spray classes without retrofit.
- Adjustable flow and pressure match light-rain to high-flow spray profiles.
- Rotating turntable with power feedthroughs enables in-situ functional testing.
- Filtration, anti-clogging and data logging ensure repeatable, traceable tests.
|
Capability |
Benefit |
|
Multi-nozzle array |
Recreate R- and S-class spray and rain profiles |
|
Adjustable flow/pressure |
Match test flow rates and jet intensities |
|
Turntable with power passthroughs |
Test energized DUTs under exposure |
|
Programmable controller & logging |
Repeatable cycles and exportable test records |
|
Filtration / anti-clogging |
Reduced downtime; consistent nozzle performance |
LIB Approach for JIS D0207 - Platform + Targeted Customization
The JIS D0207 standard focuses on evaluating the dust resistance of automotive parts. It includes methods such as:
Floating Dust Tests: Assess how fine airborne dust particles penetrate and affect components under controlled conditions.
Ariel Current Tests: Evaluate dust adherence and the ability of parts to withstand dust deposits that could affect function or safety.
These tests simulate real-world dusty environments, ensuring automotive parts maintain integrity and functionality over time.

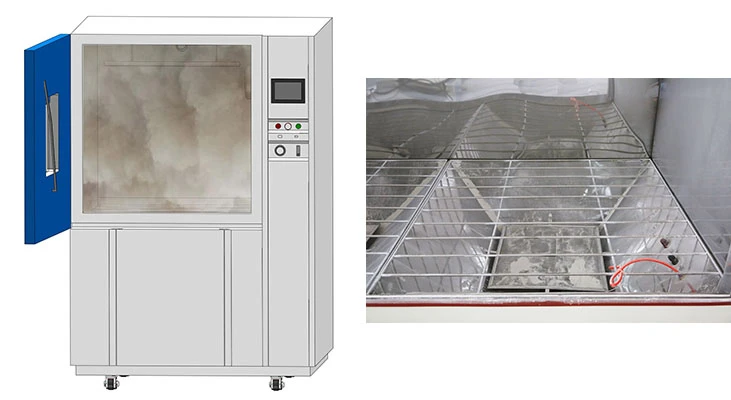

LIB supplies IP dust chambers that provide the core mechanical elements needed for JIS D0207 test modes. Because dust testing depends on particle mechanics and dosing precision, achieving formal JIS D0207 compliance commonly requires a small set of targeted customizations.
Key Features:
Precise control of dust particle concentration and circulation.
Adjustable airflow to mimic real operational conditions.
Robust sealing and contamination control systems.
Transparent observation windows and integrated lighting for monitoring.
Technical Specs:
|
Dust particle size range |
1 to 75 microns. |
|
Airflow velocity |
configurable from 0.1 to 1.0 m/s. |
|
Test chamber volume |
customizable to accommodate various sample sizes. |
These chambers ensure compliance with JIS D0207, allowing manufacturers to validate dust resistance and improve product design against environmental contamination.
LIB's One-Stop JIS Testing Service
From consultation to after-sales support, LIB provides complete project coverage:
Requiement Analysis - Review JIS clauses, DUT specs, and acceptance criteria.
Engineering Design - Optimize airflow, dust dosing, spray patterns, and monitoring.
Manufacturing & Calibration - Build to international standards with certified performance.
On-Site Installation & Training - Get your team up to speed quickly and confidently.
After-Sales Support - Spare parts, recalibration, and technical updates for lasting reliability.
✔ Ready to test with confidence?
Contact LIB to discuss your exact JIS D0203 and JIS D0207 needs - and receive a tailored equipment proposal that fits your standards, budget, and workflow.
