In modern industrial, transportation, power and communication systems, wires and cables play a crucial role. According to different application requirements and working environments, there are various types of cables, and their safety, reliability and durability need to be verified through various international testing standards.
LIB offers solutions covering a wide range of cable testing requirements. This article will introduce common cable types, corresponding test standards, and recommend LIB test chamber equipment.
Classification of Cable Types

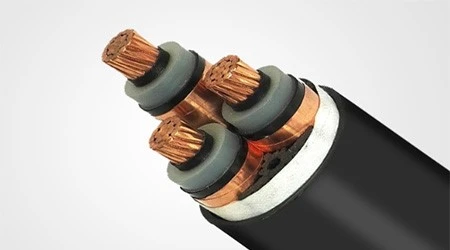

1. Power Cable
For transmitting and distributing high-power electrical energy and is commonly found in urban underground power grids, power plants, industrial and mining enterprises, etc. Including overhead insulated cables, which are characterized by no outer sheath and are suitable for space-constrained environments.

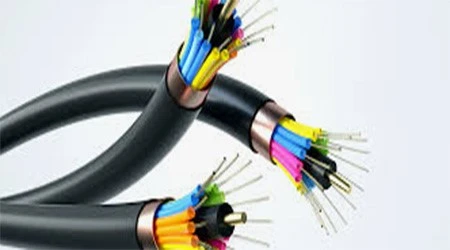

2. Communication Cables and Optical Cables
For transmitting telephone, data, television, Internet and optical fiber signals, and is the foundation of telecommunications, power and broadcasting systems. The interior of an optical cable is made of glass fiber, while that of a cable is a copper core conductor.

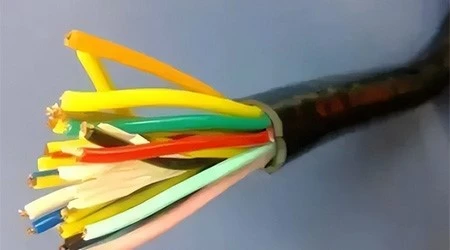

3. Control Cable
Transmits control signals, suitable for automated production lines, robots, etc. It features high-temperature resistance, oil resistance, anti-interference and other properties, and is often used in the control of industrial equipment with voltages of 450/750V and below.

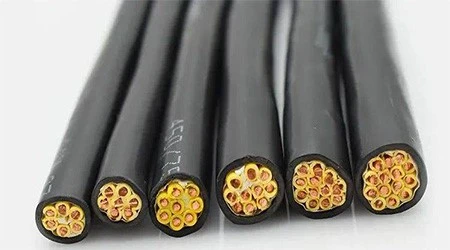

4. Cables for Electrical Equipment
Internal connection of equipment such as motors and transformers, with various specifications and wide application range.
5. Special Cables
Including the following categories:
Fire-resistant cable (NH) : able to operate continuously at a high temperature of 75 to 80℃ for more than 90 minutes.
Flame-retardant cables (ZR) and low smoke zero halogen (WDZ) : used in densely populated areas.
Mining cables, explosion-proof, waterproof, rodent-proof, etc. : Meeting the requirements of corrosion resistance, pressure resistance, wear resistance, etc. in special industrial environments.
Cable Testing Standards for LIB OC series ozone test chambers
IEC 60811-403 (Ozone Testing)
Test objects: Cables, optical cables
Test content: Cracking performance of the sheath under ozone aging

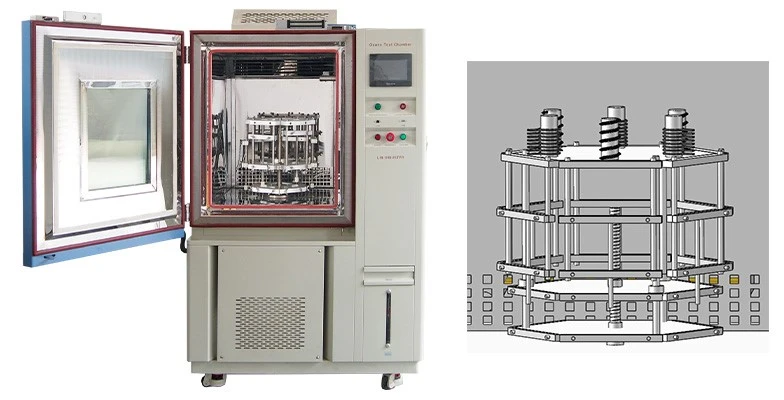

Recommended equipment: LIB OC series ozone climatic chamber https://www.libclimatechambers.com/noxious-gas-chamber/ozone-climatic-chamber.html
It is applicable to both static and dynamic test modes and can meet the full set of tests of IEC 60811-403.
|
Model |
OC-250 |
OC-500 |
OC-800 |
OC-010 |
|
Interior Volume (L) |
250 |
500 |
800 |
1000 |
|
Temperature Range |
0℃ ～ +100 ℃ |
|||
|
Humidity Range |
30% ~ 98% RH |
|||
|
Cooling Rate |
Ambient ~ 0℃ within 20 min |
|||
|
Ozone Concentration |
1～1000PPHM |
|||
|
Sample Holder Rotate Speed |
0~10 r/min |
|||
|
Airflow Rate |
0 ~ 60L/min |
|||
|
Clamps Tensile Stretch |
5%～35% |
|||
|
Gas Sensor |
Ozone gas sensor |
|||
|
Ozone Generator |
Silent discharge type ozone generator |
|||
|
|
||||
The LIB ozone test chamber can also be customized with more sample holders to meet the requirements of different test pieces and tests.
EN 50305 (Rail Transit Cable)
Test object: Railway locomotive and rolling stock cables
Standard requirements: Flame retardancy, smoke density, toxicity and other performance in case of fire
Typical case: Moroccan Railway Project
It is used for integrating fire resistance performance tests, including oxygen index, smoke density, ozone resistance, etc.
ISO 1431-1A (Ozone Testing for Rubber Materials)
Test object: vulcanized rubber or thermoplastic rubber
Supports static/dynamic stress conditions and complies with the latest ISO 1431-1:2024 standard.
Cable Testing Standards for LIB xenon test chambers and salt fog cyclic corrosion test chambers
EN 50483-6 (Low Voltage Overhead Cable)
Test object: Overhead bundled cables used in low-voltage distribution networks
Test contents: 8.4 Salt Spray Corrosion (SSC) and 8.5 Xenon Lamp Aging Test
Recommended equipment:

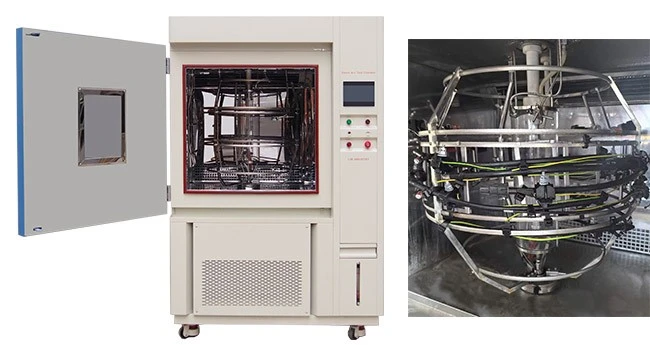

XL-S-500/750 Xenon arc test chamber
|
Model |
XL-S-750 |
|
Specimen Holder Size(mm) |
95*200 |
|
Specimen Capacity |
42pcs |
|
Chamber Type |
Rotating Holder |
|
Irradiation Source |
1 piece of 4500w water-cooled xenon arc lamp |
|
Irradiance Range |
35~150 W/㎡ |
|
Bandwidth Measurement |
300nm~400nm (340nm or 420nm) |
|
Chamber Temperature Range |
Ambient ～ 100 ℃ ±2℃ |
|
Black Panel Temperature |
BPT 35 ～ 85 ℃ ±2℃ |
|
Humidity Range |
50% ~ 98% RH |
|
Radiometer |
UV Radiometer, Tolerance: ±5% |
|
|
|
CCT salt spray cycling corrosion test chamber
Support alternating cycles (salt spray, drying, and wet heat)
Meet the requirements of ASTM G85 and EN50483
Recommended equipment:

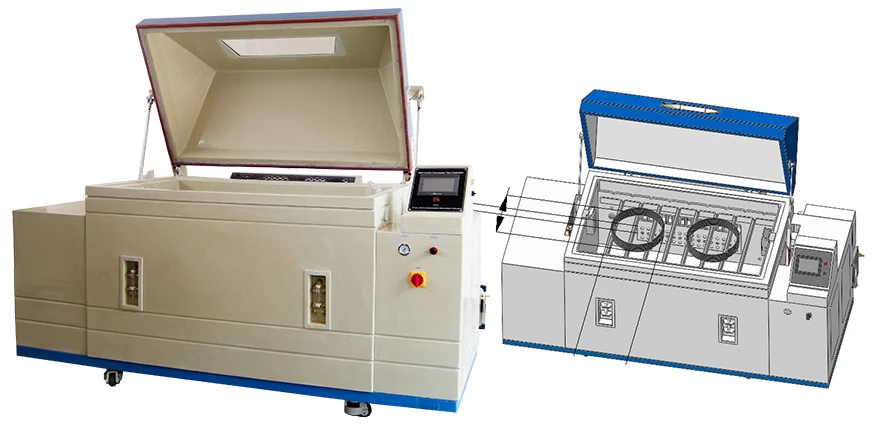

SC-010 016 020 salt fog cyclic corrosion test chamber.
|
Model |
SC-010 |
SC-016 |
SC-020 |
|
Interior Volume (L) |
780 |
1280 |
1800 |
|
Temperature Range |
+10 ℃ ～ +90 ℃ |
||
|
Humidity Range |
30% ~ 98% RH |
||
|
Salt Fog Deposition |
1～2ml / 80cm2 · h |
||
|
Water supply system |
Water purification system |
||
|
Air Preheating |
Saturated air barrel (31Liter) |
||
|
Spraying System |
Atomizer tower and Spray nozzles |
||
|
Salt Fog Collected |
Fog collector and fog measure cylinder |
||
|
|
|||
IEC 62930 / EN 50618 (Photovoltaic Cable)
Test object: Special cables for photovoltaic systems
Test requirements: heat resistance, weather resistance, and UV aging performance
Recommended equipment: LIB Xenon Lamp Aging Test Chamber XL-S series
It is particularly suitable for ultraviolet and temperature and humidity durability tests in IEC 62930 and EN50618 standards.Meet the tests of UVB 313, UVA 340 and full-spectrum xenon lamps.
DSHD 605 S2 (Egyptian Standard)
Similar standard: EN50483-6, test items include corrosion and aging
Recommended equipment: LIB CCT composite corrosion chamber + xenon lamp box combined system
LIB Customized testing solution
LIB can provide customized test plans for different standards, such as:

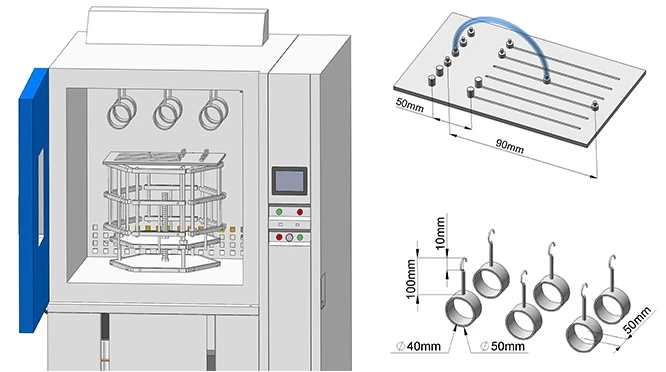

Static core shaft load test:
Used to evaluate the mechanical properties of cables under bending or tension conditions (in conjunction with the OC series or mechanical test system)
Comprehensive cable testing laboratory plan:
Integrate ozone, xenon lamp, salt spray and other tests into one lab to improve test efficiency
Remote control and data acquisition system:
It enables remote operation of equipment and real-time data recording via Ethernet /PC, and supports standardized report output
·
Contact LIB Today
With the wide application of cables in fields such as new energy, intelligent manufacturing, and rail transit, the testing of their safety and reliability is becoming increasingly important. Passing the tests of international standards such as IEC, EN and ISO can effectively evaluate the performance of cables in extreme environments.
The LIB has been widely serving cable manufacturing and testing institutions around the world. Whether it is the testing of new special cables or the durability verification of traditional materials, LIB can provide reliable and compliant testing solutions.
Complete technical data or test protocols are available at https://www.libclimatechambers.com/
All LIB environmental test chambers come with a 36-month extended warranty and lifetime service. Our all-English after-sales team is available 24/7 to solve your problems. LIB values every request of yours. You can also leave your testing requirements below, and a professional team will provide feedback on your needs within 24 hours.
