The benchtop temperature controlled chamber is a compact environmental testing device, mainly used for precise temperature control and cyclic testing of samples or components in a small space. Widely used in electronic components, small mechanical parts, biological samples, medicines, etc., to evaluate their performance and stability under different environments.
Key features
Benchtop Temperature Controlled Chamber key features
≤ ±0.5℃ temperature fluctuation, meeting the requirements of high-precision temperature experiments.
High-efficiency heating and cooling elements achieve rapid temperature changes.
The optimized insulation structure and high-efficiency heat exchange system reduce energy loss.
The fan convection system ensures a uniform temperature field and improves the repeatability of the experiment.
The touch screen display has an intuitive interface and can save multiple groups of programs.
Functions such as timing, program control, alarm prompt and data recording.
parameter list
Parameter of Benchtop Temperature Controlled Chamber
|
Model |
TH-50 |
TH-80 |
|
Internal Dimension (mm) |
320*350*450 |
400*400*500 |
|
Overall Dimension (mm) |
820*1160*950 |
900*1210*1000 |
|
Interior Volume |
50L |
80L |
|
Heat load |
1000W |
|
|
Temperature Range |
A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ |
|
|
Temperature Fluctuation |
± 0.5 ℃ |
|
|
Temperature Deviation |
± 2.0 ℃ |
|
|
Humidity Range |
20% ~ 98% RH |
|
|
Humidity Deviation |
± 2.5% RH |
|
|
Cooling Rate |
1 ℃ / min |
|
|
Heating Rate |
3 ℃ / min |
|
Product details

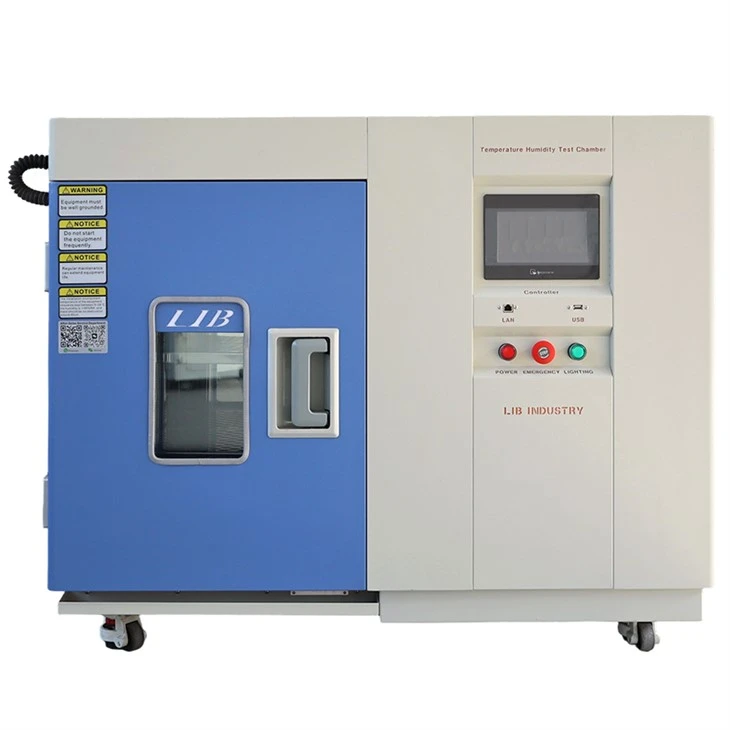

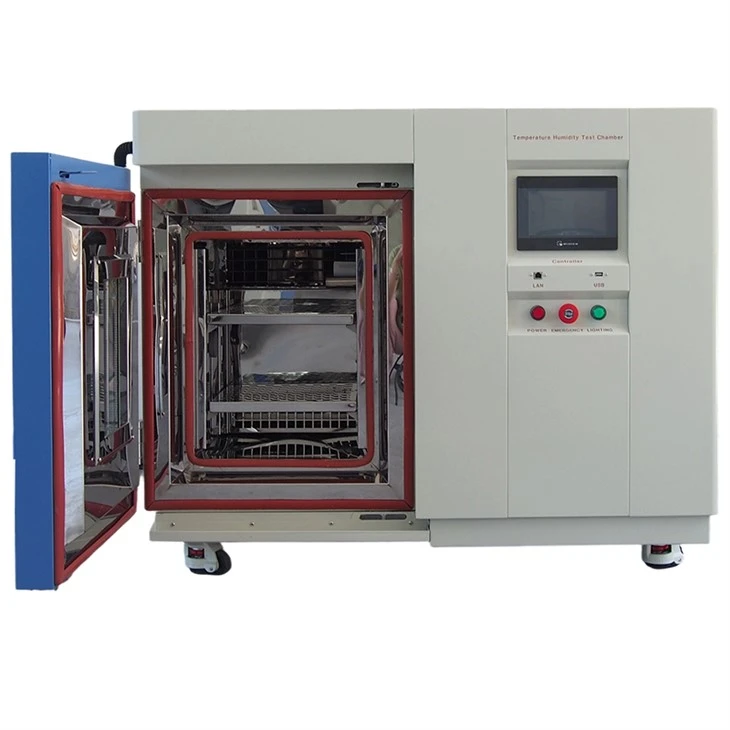

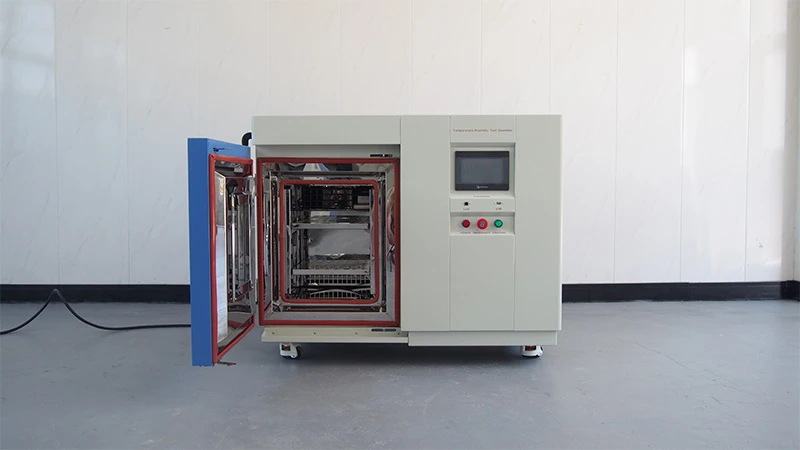

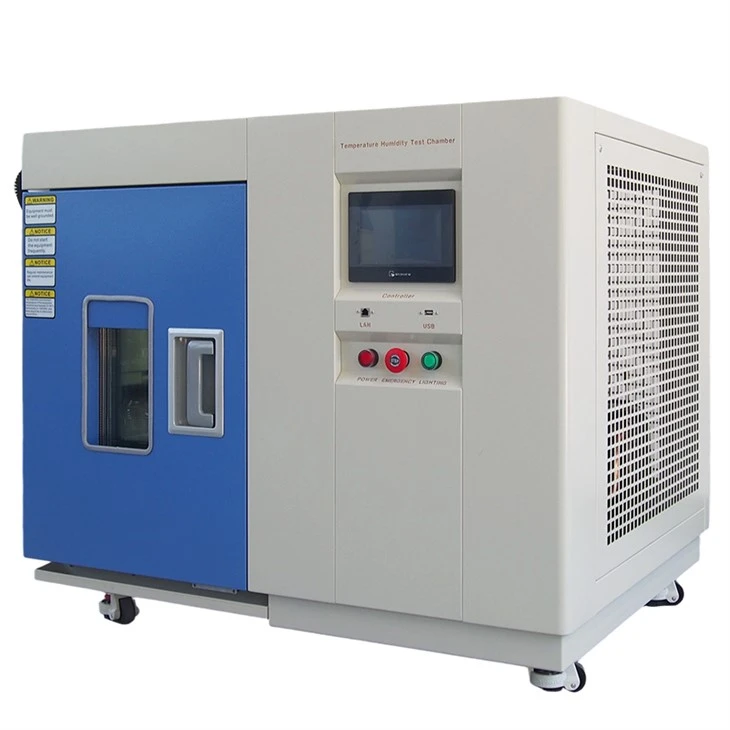

Benchtop Temperature Controlled Chamber

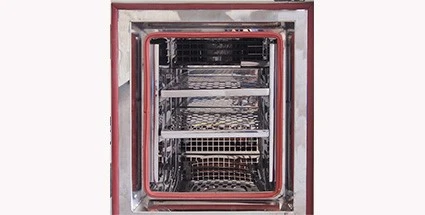

Workroom
The sample shelves deliver long-lasting performance even under harsh test conditions, thanks to their construction from SUS304 stainless steel, which offers excellent resistance to high temperatures and corrosion.
Stand
Used to place small desktop test chambers, making it convenient for customers to operate and move.
Cable Hole
Offering customization, the number, size, and location of the cable holes (usually with a 50mm bore diameter) can be tailored to meet specific requirements.
Temperature and Humidity Sensor
USB interface for real-time storage of test data can efficiently export CSV and other formats of the report, making it easy for you to analyze the process and results of the test.
LIB benchtop temperature controlled chamber is a hot seller with ample stock and fast delivery within 2 weeks. 3 years long warranty period and lifetime service, if you have a need, welcome to leave your needs and contact information, our team will contact you within 24 hours.
