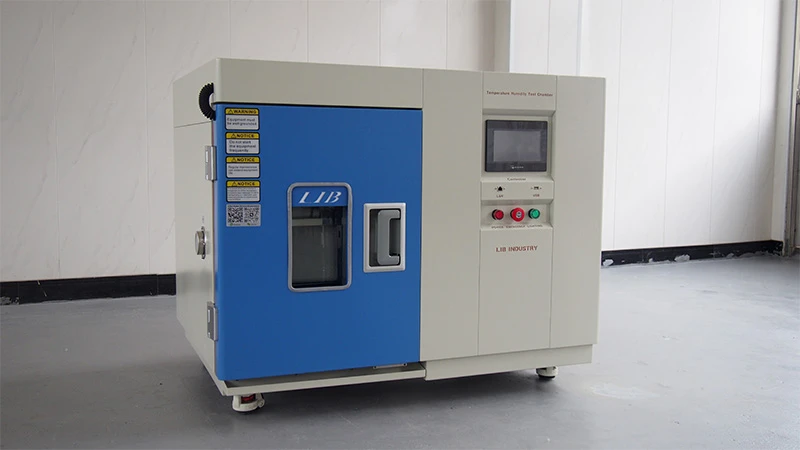

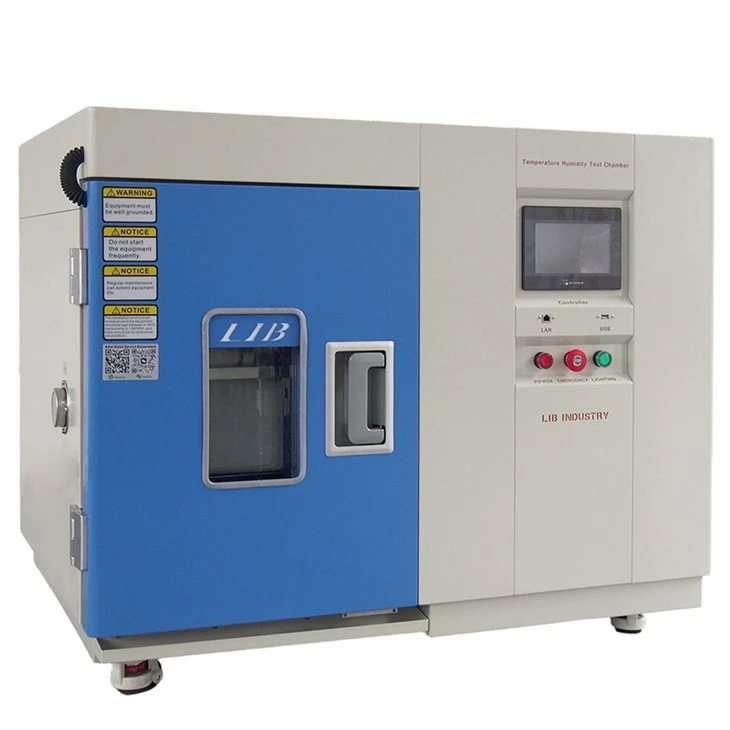

The small temperature humidity chamber is specially designed for small and medium-sized samples and limited batch environmental testing. It is popular for its ultra-small footprint, high-precision temperature and humidity control system, and simple operation interface. This small temperature humidity chamber can be placed on a limited laboratory surface and can achieve rapid heating and cooling rates as well as humidity regulation responses.
Key features
Small Temperature Humidity Chamber key features
Friendly human-computer interaction, temperature shock, constant T/H and wet heat alternating can be completed without complex programming.
Fine temperature uniformity (≤±0.5℃) ensures a consistent testing environment.
Key components (compressors, heating tubes, etc.) have a long service life and a low failure rate.
The dual-loop compression and evaporation system enables rapid temperature changes and higher stability.
The side panels of the chassis and key components adopt a quick-release design, enabling rapid maintenance.
Multiple protections such as over-temperature, over-humidity, water shortage, phase loss and overcurrent.
parameter list
Parameter of Small Temperature Humidity Chamber
|
Model |
TH-50 |
TH-80 |
|
Internal Dimension (mm) |
320*350*450 |
400*400*500 |
|
Overall Dimension (mm) |
820*1160*950 |
900*1210*1000 |
|
Interior Volume |
50L |
80L |
|
Heat load |
1000W |
|
|
Temperature Range |
A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ |
|
|
Temperature Fluctuation |
± 0.5 ℃ |
|
|
Temperature Deviation |
± 2.0 ℃ |
|
|
Humidity Range |
20% ~ 98% RH |
|
|
Humidity Deviation |
± 2.5% RH |
|
|
Cooling Rate |
1 ℃ / min |
|
|
Heating Rate |
3 ℃ / min |
|
Product details
Small Temperature Humidity Chamber

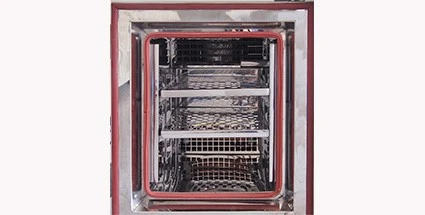

Workroom
The sample shelves deliver long-lasting performance even under harsh test conditions, thanks to their construction from SUS304 stainless steel, which offers excellent resistance to high temperatures and corrosion.

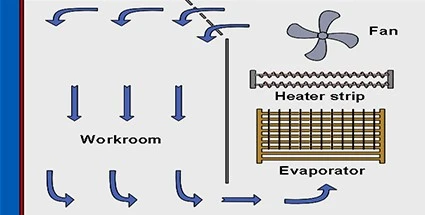

Air Circulation System
The low-noise fan drives the air flow, and achieves uniform distribution of temperature and humidity with the diversion structure, ensuring that the parameter fluctuation of each point in the chamber is controlled within a very small range (temperature ±0.5℃, humidity ±2.5%RH).
Castor
Easy to move and fix the chamber and adapt to the flexible placement of the laboratory desktop or small workbench.Quiet, non-slip, high load bearing.
Cable Hole
There is a φ50mm test hole on the side of the workroom, which is convenient for external sensors or cables to penetrate. The standard silicone plug prevents heat leakage and condensation water infiltration.
LIB This small temperature humidity chamber is a hot seller with ample stock and fast delivery within 2 weeks. 3 years long warranty period and lifetime service, if you have a need, welcome to leave your needs and contact information, our team will contact you within 24 hours.
