Despite its compact size, the chamber delivers industrial-grade environmental simulation performance, with a typical temperature range from –40°C to +150°C and humidity control from 20% to 98% RH, covering the majority of component-level environmental test requirements.

Unlike conventional compact chambers that only reduce physical dimensions, the LIB industry benchtop environmental test chamber maintains a full-function control architecture, including uniform airflow circulation, stable temperature gradients, and long-term operational reliability.
Temperature uniformity can be controlled within ±1.5°C, ensuring high repeatability across test cycles.

The chamber accurately simulates high temperature, high humidity, low temperature, and programmable temperature-humidity cycling, making it suitable for accelerated aging tests, screening tests, and early-stage product validation-all within a space-saving benchtop design.

Key features

Benchtop Environmental Test Chamber key features

Compact footprint with laboratory-friendly dimensions
Typical chamber volumes range from 50 L to 80 L, allowing installation directly on laboratory benches without structural modification, while maintaining professional test performance.
Parallel testing capability for higher efficiency
Supports side-by-side operation of multiple units, enabling simultaneous testing of different samples or profiles.
High-efficiency refrigeration system
Equipped with an optimized refrigeration architecture that delivers stable cooling performance and fast temperature transitions, with a typical cooling rate of 1.0–3.0°C/min (unloaded), while keeping energy consumption low.
Advanced PID control with high stability
The industrial PID control algorithm minimizes temperature overshoot, ensuring fast response and precise temperature and humidity regulation during dynamic test conditions.
SUS304 stainless steel workroom
Corrosion-resistant mirror-finish stainless steel supports continuous operation under high humidity (up to 98% RH) and elevated temperatures without material degradation.
Clear observation and safe operation
The double-layer tempered glass observation window combined with independent LED lighting allows uninterrupted visual inspection during tests.
International standard compliance
Fully compliant with IEC, MIL-STD, ASTM, and other global environmental testing standards, supporting certification-oriented and export-driven testing programs.

parameter list

Benchtop Environmental Test Chamber

Model	TH-50	TH-80
Internal Dimension (mm)	320350450	400400500
Overall Dimension (mm)	8201160950	90012101000
Interior Volume	50L	80L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Cooling system	Mechanical compression refrigeration system
Controller	Programmable color LCD touch screen controller Ethernet connection
Safety Device	Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Thermal Insulation	Polyurethane foam and insulation cotton

Product details

Benchtop Environmental Test Chamber

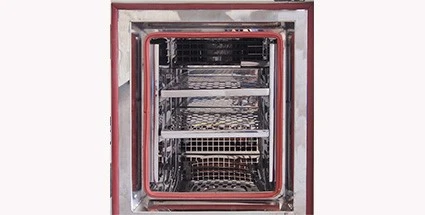

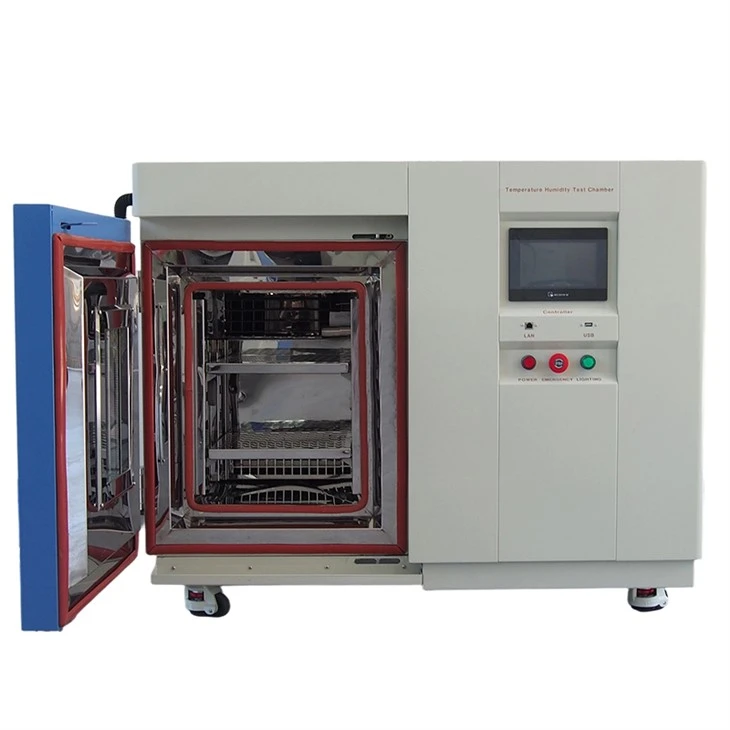

Workroom

The chamber door is designed for safe, user-friendly operation.
It features a manual bi-directional locking mechanism with a recessed handle design, reducing protrusions and improving laboratory safety.
Double-layer high-elastic silicone sealing strips ensure excellent airtightness, effectively preventing heat loss and moisture leakage, even during long-duration humidity tests.

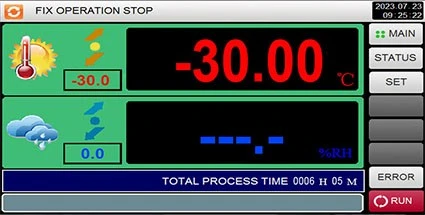

PID Controller

The chamber is equipped with a PID programmable color touch-screen controller, enabling intuitive operation through simple touch interaction.
The interface provides real-time monitoring of temperature and humidity, programmable test profiles, alarm management, and data visualization-making complex environmental tests easy to configure and repeat with high consistency.

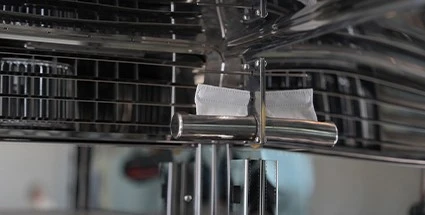

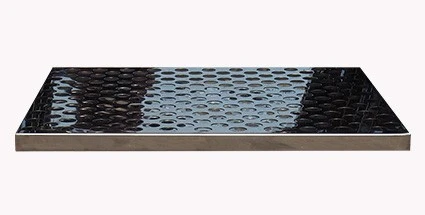

Sample shelf

The sample shelves are manufactured from SUS304 stainless steel, ensuring structural stability and resistance to deformation under high temperature and high humidity conditions.
They are designed to support long-term, continuous testing while maintaining uniform airflow around test samples.

Temperature and Humidity Sensor

High-precision PT100 Class A temperature and humidity sensors are used to ensure accurate measurement and control.
With a resolution of up to 0.001°C, the sensor system enables highly stable environmental control, making test results repeatable, reliable, and suitable for critical R&D and validation applications.

FAQ – Benchtop Environmental Test Chamber

Q1: How does a benchtop environmental test chamber differ from a standard vertical chamber?

A benchtop chamber is optimized for small samples and limited space, but the LIB industry model retains the same control logic, airflow design, and reliability standards as full-size chambers-ensuring no compromise in test accuracy.

Q2: Is a benchtop environmental chamber suitable for long-term cyclic testing?

Yes. Thanks to its industrial-grade refrigeration system, PID control, and stainless steel workroom, the chamber supports long-duration temperature-humidity cycling with stable performance.

Q3: Can a benchtop environmental test chamber achieve 5 °C/min or 10 °C/min fast temperature change?

Yes.
Despite its compact size, the LIB industry benchtop environmental test chamber can be customized to achieve 5 °C/min or up to 10 °C/min fast temperature change.
High ramp rates are available through non-standard configuration, tailored to test volume and heat load requirements.

Delivery & Service Commitment

The LIB industry benchtop environmental test chamber is one of our best-selling models, with stable inventory and fast delivery within 2 weeks.
Each unit is backed by a 3-year full warranty and lifetime technical service support.
If you submit your application requirements and contact information, our technical team will respond within 24 hours with professional recommendations.
