Introduction: Why Ozone Testing Is Critical for Rubber and Elastomers
Ozone exposure is one of the most damaging environmental factors for rubber and elastomeric materials. It causes surface cracking, mechanical failure, and degradation in products used in automotive, aerospace, electronics, and construction industries. As global quality standards become stricter, ozone aging testing has become essential in product validation and R&D.
This article explores how ozone aging tests are performed, which standards to follow, and how LIB's ozone aging test machines offer precise and customizable solutions for laboratories and manufacturers.
What Is an Ozone Test Chamber?
An ozone aging test machine is a specialized environmental simulation device designed to expose samples to controlled ozone concentrations over extended periods. The goal is to evaluate material resistance to ozone-induced aging. The chamber maintains constant ozone levels, temperature, humidity, and airflow to ensure repeatable test conditions.
These chambers are commonly used for static or dynamic tests, where rubber samples are stretched or rotated while being exposed to ozone, revealing their vulnerability to surface cracking.
Standards Governing Ozone Aging Tests
Two globally accepted standards for ozone resistance testing are:
ISO 1431-1: Rubber, vulcanized or thermoplastic - Resistance to ozone cracking under static strain.
ASTM D1149: Rubber Deterioration - Cracking in an Ozone Controlled Environment.
These standards define test conditions such as ozone concentration (10–1000 PPHM), ambient temperature (typically 40–60°C), elongation strain on samples (10% to 40%), and exposure time (ranging from 24 hours to 1000+ hours depending on the product class).

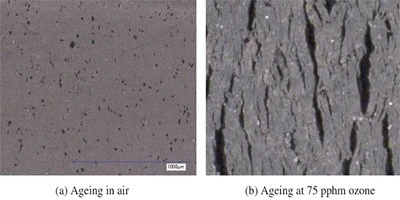

Test results are typically judged by visual inspection under magnification to assess cracking severity and pattern.
LIB's Ozone Test Chambers: Precision and Customization
LIB Test Chambers, a specialist in environmental simulation equipment, offers a full range of ozone test chambers designed to meet international testing standards. Key features of LIB ozone aging test machines include:
- Ozone concentration control from 10 to 1000 PPHM
- Advanced PID temperature and ozone control systems
- Ozone generation via UV or corona discharge technology
- Stainless steel SUS304 test chamber with mirror finish

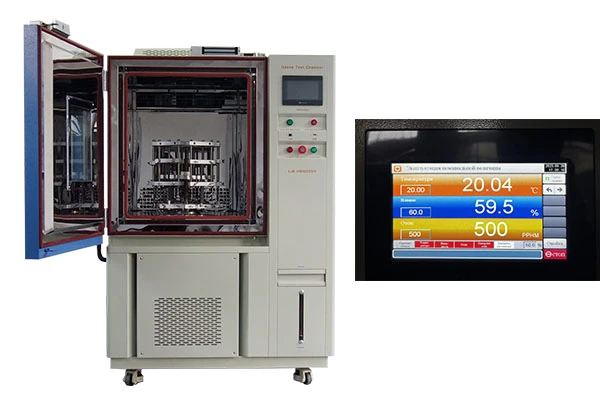

- Touchscreen PLC controller with remote access and data logging
- Real-time safety alarms and ozone exhaust systems
|
Model |
OC-250 |
OC-500 |
OC-800 |
OC-010 |
|
Interior Volume (L) |
250 |
500 |
800 |
1000 |
|
Temperature Range |
0℃ ～ +100 ℃ |
|||
|
Humidity Range |
30% ~ 98% RH |
|||
|
Cooling Rate |
Ambient ~ 0℃ within 20 min |
|||
|
Ozone Concentration |
1～1000PPHM |
|||
|
Sample Holder Rotate Speed |
0~10 r/min |
|||
|
Airflow Rate |
0 ~ 60L/min |
|||
|
Clamps Tensile Stretch |
5%～35% |
|||
LIB also provides calibration ports, data export functions, and energy-efficient operation to meet laboratory or production needs.
Customized Solutions: How LIB Supports Diverse Test Requirements
Every product and application is different. That's why LIB offers full customization services for ozone chambers. Whether you're testing O-rings, large rubber hoses, insulation sleeves, or gaskets, LIB can adapt the chamber size, fixture system, and airflow distribution to your needs.
LIB offers tailored sample holders to meet diverse ozone testing needs:

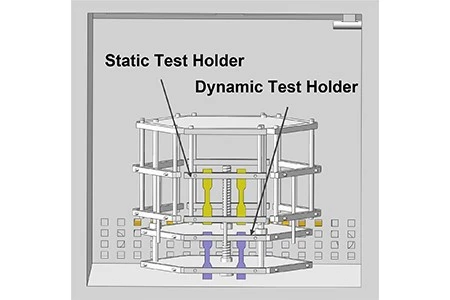

| Dynamic and Static Rotating Drum | Provides uniform ozone exposure in static mode and simulates real-world stretching through rotation in dynamic mode, offering a comprehensive durability evaluation. |
|

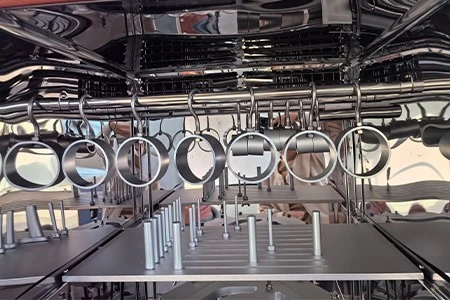

| Ring Sample Holder | Designed for small or irregularly shaped samples like ring seals, ensuring even ozone contact and preventing sample movement for accurate results. |
|

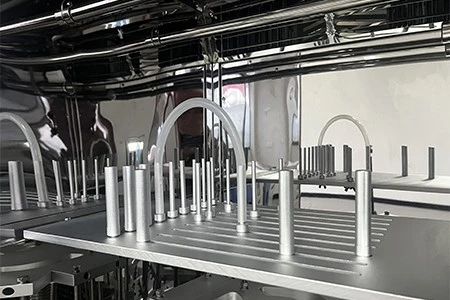

| Hose Sample Holder | Specially made for flexible hoses, with adjustable bending and multiple diameter fixtures to securely hold various hose sizes during testing. |
|
These custom fixtures help LIB deliver precise, realistic ozone aging tests for a wide range of rubber products.
How to Set Up and Run an Ozone Aging Test
1. Prepare your specimens: Cut rubber samples according to ISO or ASTM specifications and apply the desired elongation (e.g., 20% strain).
2. Install in the chamber: Mount the samples on the static rack or rotating fixture.
3. Set test parameters: Input the ozone concentration (e.g., 100 PPHM), temperature (e.g., 40°C), and test duration (e.g., 72 hours).
4. Monitor test in real-time: LIB's controller enables live monitoring and auto-logging of ozone levels.
5. Post-test evaluation: Visually inspect the samples for cracks and record results based on standard evaluation criteria.
Tips for Selecting the Right Ozone Test Chamber
When investing in ozone test equipment, keep the following in mind:
- Sample type and quantity: Choose a chamber size that accommodates your daily testing volume.
- Testing mode: Static strain, dynamic rotation, or custom cycles?
- Control accuracy: Stable ozone generation and feedback sensors are vital.
- Data access: Remote monitoring and export help with quality documentation.
- Compliance: Make sure the chamber supports ISO 1431, ASTM D1149, or other relevant standards.
- Support and maintenance: A responsive supplier like LIB ensures long-term performance and calibration support.
Conclusion: Future-Proof Your Rubber Product Testing with LIB Ozone Chambers
Ozone resistance is a fundamental part of material qualification for rubber and elastomeric products. A well-executed ozone aging test can prevent field failures, improve material selection, and support compliance with global standards.
LIB's ozone test chambers offer not only precision and reliability but also unmatched customization and technical support. Whether you need a standard vertical model or a high-capacity walk-in chamber with automation features, LIB delivers tailored testing solutions that elevate your R&D and quality assurance workflows.
Ready to enhance your ozone testing process? Contact LIB.
