In today's automotive industry, where vehicles increasingly rely on advanced electronics, ensuring component durability under harsh environmental conditions is more critical than ever. One of the most common and damaging threats is water intrusion, especially from rain. To address this challenge, LIB has developed a high-performance JIS D0203 Rain Test Chamber specifically designed to comply with the JIS D0203 standard, providing manufacturers with a reliable and efficient way to validate their products' waterproof performance.
【What is the JIS D0203 Standard?】
The JIS D0203 standard is a set of guidelines from Japan that helps car manufacturers test how well auto parts can handle getting wet. It focuses on different types of water exposure that parts might face in real life, such as moisture in the air, rain, strong water sprays, or immersion in water. To make sure parts are ready for all kinds of wet conditions, the standard divides the tests into four categories. Each category is designed to simulate a different situation your car might experience, such as a humid day, a rainstorm, or driving through a deep puddle:
Moisture Tests (M1, M2): Evaluate component functionality under prolonged exposure to humidity, condensation, and water vapor at elevated temperatures (e.g., ~32°C or ~60°C). These simulate dew, high-humidity climates, or engine bay condensation.
Rain Tests (R1, R2): Simulate natural rainfall or indirect wind-driven rain using controlled water pressure and flow rate, typically for 10-minute durations.
Spray Tests (S1, S2): Reproduce more severe direct or heavy spray conditions, such as those experienced while driving through storms or undercarriage wash environments. These tests use higher water pressures (up to 0.30 MPa) and longer durations (up to 1 hour).
Dip Tests (D1, D2, D3): Assess how parts respond to water immersion, from occasional submersion to continuous waterproofing requirements. These involve specific water temperature differences (up to 50°C) to evaluate thermal stress during immersion.
Each test includes clearly defined parameters like water pressure, flow rate, spray angle, and exposure time to ensure consistency and repeatability.
【How LIB Delivers Precision Testing by JIS D0203 Rain Test Chamber That Meets JIS D0203】
Highly Accurate Water Exposure for Reliable Results

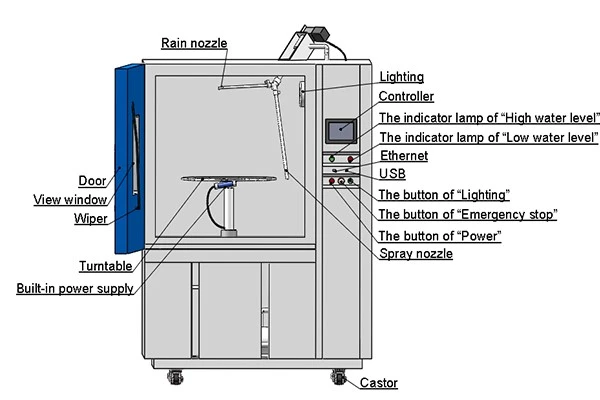

The chamber has special rain nozzles with 2 holes and spray nozzles with 40 holes to mimic different types of water exposure described in the JIS D0203 standard. It can create everything from light rain with a flow of 1.9 liters per minute to heavy sprays with up to 39.2 liters per minute at pressures up to 0.30 MPa. This accurate control means your tests closely match real-life conditions, helping you make sure your parts are truly waterproof and avoid problems later on.
Complete 360° Exposure Ensures Thorough Testing
The strong stainless-steel turntable spins your parts at 17 rotations per minute, making sure every side gets an even and steady spray of water. This full coverage helps catch any weak spots, so your product lasts longer.
User-Friendly Controller and Remote Monitoring Save Time
The advanced touchscreen controller lets you set up and monitor complex test programs quickly and easily. Ethernet connectivity enables remote supervision and data management.
Durable Construction for Versatile Testing

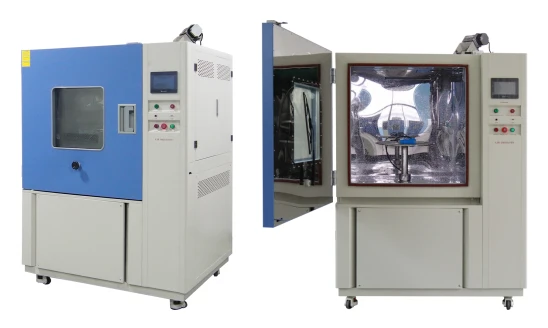

Made with corrosion-resistant SUS304 stainless steel and featuring a large observation window with a built-in wiper. The sturdy design means the machine breaks down less and needs less upkeep. Plus, the clear viewing window lets you easily watch the test and quickly spot any problems.
Eco-Friendly Water Recycling Reduces Operational Costs
Water tank and purification system recycle water continuously. Significantly lowers water consumption and utility bills, making your testing process more sustainable and cost-efficient.
Comprehensive Safety Features Protect Your Investment
Protections against over-temperature, water shortage, electrical leakage, and pressure issues. Ensures uninterrupted, safe operation that protects both your equipment and personnel, minimizing downtime risks.
LIB's Advantages
With deep expertise in environmental simulation and equipment manufacturing, LIB is committed to helping clients achieve international compliance and product reliability. The LIB JIS D0203 Rain Test Chamber is more than just a piece of equipment. Also, it's a trusted solution to ensure your automotive components meet the rigorous demands of global markets.
