This level of precision makes it ideal for electronics testing, polymer aging, battery conditioning, and sensor validation, ensuring repeatable results for research and quality assurance. Its advanced multi-directional airflow and eco-friendly refrigeration system guarantee rapid stabilization while minimizing temperature gradients, enabling short-cycle experiments and high-throughput testing. With a compact footprint, quiet operation, and optional networked control, it empowers engineers and researchers to perform accurate environmental simulations directly at the workstation.
Core Advantages of the Portable Temperature Test Climate Chamber
Lab-Sized Footprint with Professional-Grade Control
The structure is optimized for benchtop placement. Thermal insulation, compact duct flow, and optimized surface ratio ensure that even small volumes achieve stable ±0.5°C accuracy.
Advanced Temperature + Humidity Conditioning
A micro-control loop coordinates heater, humidifier, and dehumidification modules. This provides fast recovery from door openings and consistent results during long-cycle tests.
Fast Thermal Response for High Throughput
The reduced internal volume combined with high-efficiency airflow shortens stabilization time-ideal for repetitive screening tests or academic experiments.
Flexible Testing Configurations
Various options customize the chamber to specific lab requirements:
- Miniature viewing window
- Ø50 mm cable port for sensors or PCBs
- Adjustable and detachable sample holders
- Dehumidification enhancement module
- Optional low-temperature (-70°C) upgrade
Multi-Layer Safety Logic
The system integrates independent protection functions including:
- Over-temperature cutoff
- Compressor overload protection
- Humidity system dry-run safety
- Door interlock
- Intelligent fault diagnosis
What Are the Technical Specifications You Need to Know?
|
Model |
TH-50 |
TH-80 |
|
Internal Dimension (mm) |
320*350*450 |
400*400*500 |
|
Overall Dimension (mm) |
820*1160*950 |
900*1210*1000 |
|
Interior Volume |
50L |
80L |
|
Heat load |
1000W |
|
|
Temperature Range |
A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ |
|
|
Temperature Fluctuation |
± 0.5 ℃ |
|
|
Temperature Deviation |
± 2.0 ℃ |
|
|
Humidity Range |
20% ~ 98% RH |
|
|
Humidity Deviation |
± 2.5% RH |
|
|
Cooling Rate |
1 ℃ / min |
|
|
Heating Rate |
3 ℃ / min |
|
Design Highlights of Small Temperature Climate Conditioning Chamber

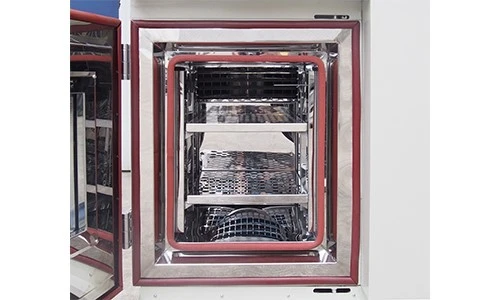

Compact Laboratory-Grade Workroom
Material: SUS304 stainless steel, corrosion-resistant, easy to clean
Volume Options: 50 L / 80 L
Adjustable Shelves: Up to 50 kg per shelf, modular arrangement for multiple small samples
Cable Port: Ø50 mm for wiring or probes
Observation Window: Insulated tempered glass for real-time monitoring
Lighting: Internal LED for sample visibility
Intelligent Temperature & Humidity Control
Temperature Sensor: PT100 Class A platinum resistance
Humidity Sensor: A wet gauze and a real-time temperature, converted by temperature difference, showing real-time relative humidity.
Control Logic: PID with adaptive fuzzy algorithm
Programmable Profiles: Up to 120-step programs with dwell, ramp, and repeat cycles
Real-Time Data: Temperature vs. time & humidity graphs, USB export & LAN monitoring

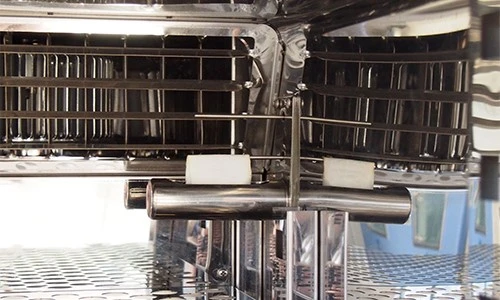

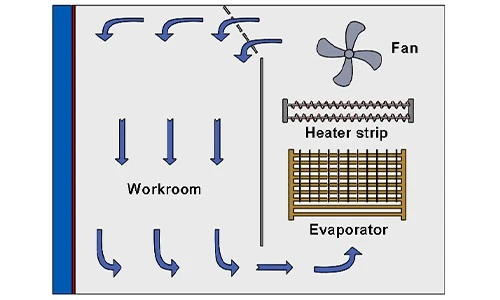

High-Efficiency Air Circulation System
Airflow Type: axial fan with ducting
Air Velocity: 1~2 m/s
Temperature Uniformity: ±1.5°C
Noise Level: ≤65 dBA
Design Benefit: Eliminates hot/cold zones for micro-sample uniformity

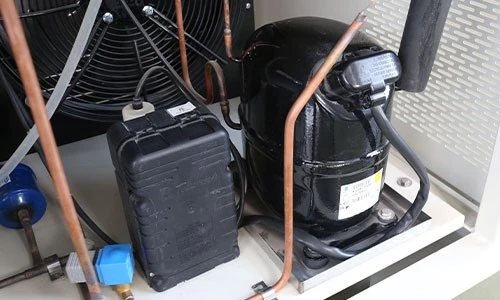

Eco-Friendly Refrigeration
Cooling Method: Mechanical compression with cascade design
Compressor Brand: TECUMSEH / equivalent
Refrigerant: Low-GWP eco-friendly refrigerant
Cooling Rate: 1°C per min, customizable
Optional Water-Cooled System: For continuous high-load operation
FAQ Answers About Small Temperature Climate Conditioning Chamber
Q1. What advantages does LIB Industry's small climate chamber offer?
These chambers are cost-effective, reliable, and ready for fast delivery. With stable performance, compact footprint, and versatile testing capabilities, they are a preferred choice for electronics, materials, and battery testing.
Q2. Does the small temperature chamber support multi-step programming?
Yes. LIB Industry'ssmall climate conditioning chamber feature multi-stage programmable cycles, users can set ramps, dwell times, and repeats for complex testing protocols, ensuring repeatable and automated experiments without manual intervention.
Q3. What are the size, weight, and mobility features of the benchtop units?
These small temperature climate conditioning chambers are designed to be compact and portable, with internal volumes typically ranging from 50L to 80L. The lightweight design, ergonomic side handles, and smooth castor wheels allow easy relocation between benches or labs.
Upgrade Your Laboratory Workflow With LIB Industry Small Temperature Climate Conditioning Chamber
The Small Temperature Climate Conditioning Chamber combines precision, reliability, and compact design into a single unit. Achieve repeatable micro-environment testing for high-accuracy R&D, materials validation, and prototype verification without occupying full lab space.
Contact LIB Industry: sales@libtestchamber.com
⚡ Fast reply within 1–3 hours
Worldwide delivery in 7–15 working days
3-year warranty + lifetime support
Rapid-response service & expert technical support
