Designed for mobility, fast deployment, and professional accuracy,this compact temperature climate chamber provides stable and uniform temperature control for a wide range of applications, including material screening, electronic component testing, prototype validation, and on-site production troubleshooting. Despite its small footprint, it delivers impressive performance, supporting 3 optional temperature ranges from –70°C to +150°C, with ±0.5°C stability and ±2.0°C uniformity, and internal volumes 50L,80L. Its portable design, equipped with castor wheels, ergonomic handles, and robust SUS304 stainless steel interior, enables engineers to bring precise thermal testing directly to workstations, laboratory benches, or production lines, transforming any space into a controlled testing environment.
Core Advantages of the Portable Temperature Test Climate Chamber
Ultra-Compact Engineering for Tight Spaces
Every dimension is optimized to fit beside desks, production stations, and R&D benches. Side handles and smooth industrial casters transform relocation into a one-minute task-no lifting equipment, no installation complexity.
Stable Temperature Powered by Intelligent Control
The system constantly balances airflow, heating, and cooling response using a smart closed-loop algorithm, holding temperatures with ±0.5°C stability even during long-duration cycles.
Rapid Response Heating & Cooling Efficiency
The optimized air circulation and high-efficiency refrigeration module allow fast temperature stabilization, reducing waiting time and improving throughput for repetitive test tasks.
Modular Configurations for Any Test Scenario
Cable ports, viewing windows, extra shelving, or customized chamber depths can all be added. Safety logic includes compressor protection, overheat prevention, and automatic system diagnostics.
Integrated Safety Protections
Equipped with multi-layer protection-overheating cutoff, compressor overload safeguard, door interlock, and system self-diagnostics.
What Are the Technical Specifications You Need to Know?
|
Model |
TH-50 |
TH-80 |
|
Internal Dimension (mm) |
320*350*450 |
400*400*500 |
|
Overall Dimension (mm) |
820*1160*950 |
900*1210*1000 |
|
Interior Volume |
50L |
80L |
|
Heat load |
1000W |
|
|
Temperature Range |
A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ |
|
|
Temperature Fluctuation |
± 0.5 ℃ |
|
|
Temperature Deviation |
± 2.0 ℃ |
|
|
Humidity Range |
20% ~ 98% RH |
|
|
Humidity Deviation |
± 2.5% RH |
|
|
Cooling Rate |
1 ℃ / min |
|
|
Heating Rate |
3 ℃ / min |
|
Design Highlights of Portable Temperature Test Climate Chamber

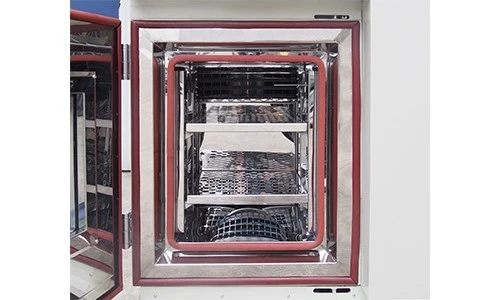

Workroom
The interior is constructed from SUS304 stainless steel, corrosion resistance, and easy cleaning.
Internal Volume: 50L / 80L
Shelf Load Capacity: 50 kg per adjustable shelf
Cable Port: Ø50 mm for probes or wiring
Lighting: LED illumination for clear visibility
Observation Window: Tempered glass window for easy monitoring of samples without opening the door

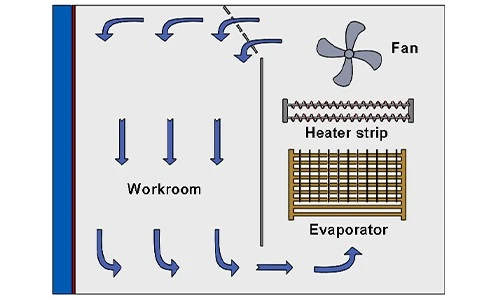

Air Circulation System
Optimized airflow design ensures rapid heat transfer and uniform temperature distribution across all specimens.
Circulation Type: Axial fan with ducted airflow
Air Velocity: 1–2 m/s
Temperature Uniformity: ±2.0°C
Noise Level: ≤60 dBA
The high-velocity, multi-directional circulation eliminates hotspots or cold zones, ensuring every sample experiences identical thermal conditions.

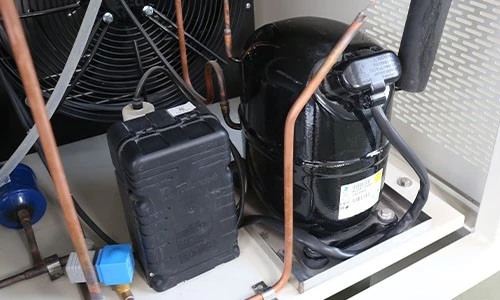

Refrigeration System
High-efficiency mechanical refrigeration provides fast cooling with stable performance for continuous and repeated testing.
Cooling Method: Eco-friendly mechanical compression
Compressor: French TECUMSEH or equivalent
Cooling Rate: 1°C per minute (customized)
Optional: Water-cooled version for high-power or continuous operation
The cascade design ensures energy-efficient cooling with minimal temperature fluctuations.

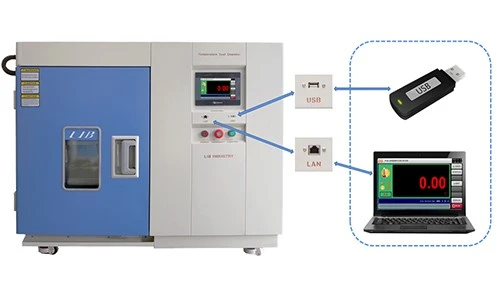

Control System
The portable temperature climate chamber is equipped with an advanced programmable controller to manage temperature profiles, logging, and remote monitoring.
Controller Type: Color LCD touch screen
Programmable Profiles: Up to 99 steps
Interfaces: USB data export, LAN for remote control
Temperature Sensor: PT100 Class A platinum resistance
Real-Time Display: Graph of temperature vs. time
This intelligent system ensures precise control, easy monitoring, and high repeatability across multiple test cycles.
Optional Explosion-Proof System
For testing flammable or volatile samples, the chamber can be upgraded with a fully integrated explosion-proof configuration.
Compliance: ATEX / IECEx certified components
Safety Features: Pressure relief valves, water spray,explosion-proof window, lock temperature cut-off
Portable Temperature Test Climate Chamber Insights – Your Questions Answered
Q1. Is the portable temperature test climate chamber suitable for use near production lines or in small labs?
Absolutely. With a compact footprint and low operational noise (≤60 dBA), it fits seamlessly into laboratories, workshops, or production environments where traditional full-sized chambers are impractical.
Q2. What other compact climate test solutions does LIB Industry provide?
LIB Industry's portfolio includes mini rapid thermal cycling units, benchtop constant temperature-humidity chambers, and etc.
Q3. Can multiple small benchtop chambers be controlled simultaneously?
Yes. When using LIB Industry's networked controller system, multiple portable chambers can be linked and monitored from a single PC or LAN interface, allowing synchronized testing and centralized data collection.
Take Your Testing Anywhere-With Laboratory-Level Precision
Upgrade your workflow with a portable temperature test climate chamber that follows your process instead of slowing it down.
LIB Industry's Portable Temperature Test Climate Chamber combines mobility, accuracy, and reliability into one powerful compact system.
Contact LIB Industry: sales@libtestchamber.com
Reply within 1–3 hours
Worldwide delivery in 7–15 working days
3-year warranty + lifetime technical support
Fast-response service & expert engineering support
